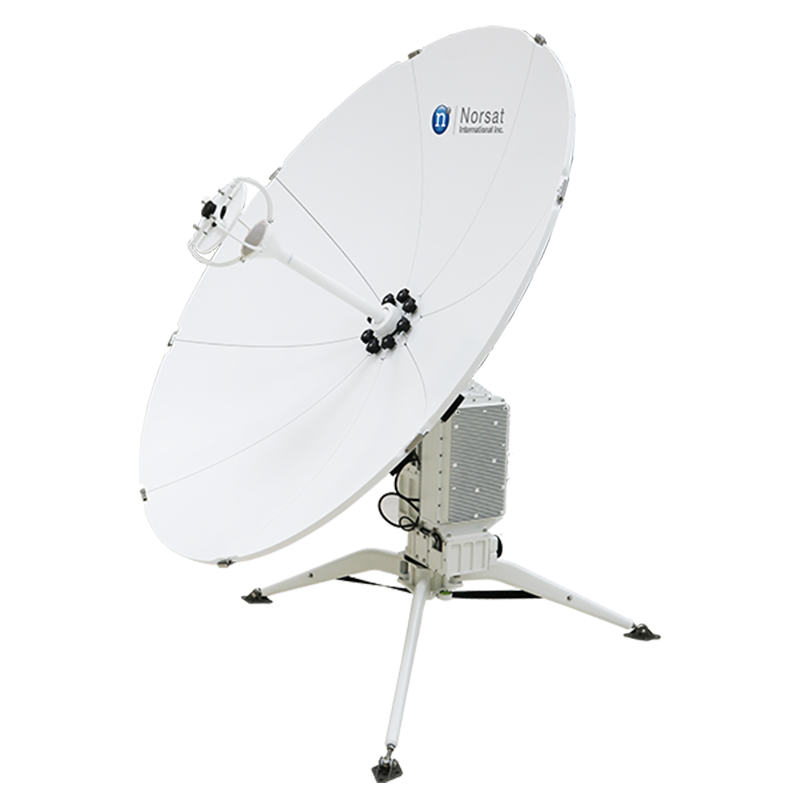

Norsat WFA100KUR 1.0m Ku-Band Auto Flyaway Antenna

Norsat WFA100KUR 1.0m Ku-Band Auto Flyaway Antenna

The Norsat WFA100KUR WAYFARER is a lightweight 1.0-meter Ku-band automatic flyaway antenna featuring a high-performance ring-focus reflector. Designed for rapid field deployment, it provides automatic satellite acquisition using beacon or DVB carrier detection, with an initial acquisition time of three minutes or less.

Key Specifications:

• Antenna Aperture: 1.0 m

• Antenna Type: Ring focus flyaway

• Acquisition and Tracking: Automatic

• Receive Frequency: 10.70–12.75 GHz

• Transmit Frequency: 13.75–14.50 GHz

• Receive Gain: ≥39.9 dBi at 12.5 GHz

• Transmit Gain: ≥41.0 dBi at 14.25 GHz

• Polarization: Linear, ±90°

• Cross-Polarization Isolation: ≥35 dB

• RF Interfaces: WR75

• Power Capacity: 100 W

• Auto-Acquisition Time: ≤3 minutes

• Positioning Mode: Beacon or DVB carrier

• Antenna Weight: ≤26 kg, excluding BUC, LNB, packaging and accessories

• Operating Temperature: -40°C to +60°C

• Environmental Protection: IP65

• Included Cables: 10 m power and RF cables

Its compact flyaway configuration, automatic pointing capability and rugged IP65 construction make the WFA100KUR ideal for portable satellite communications, emergency response, broadcasting and remote field operations.
