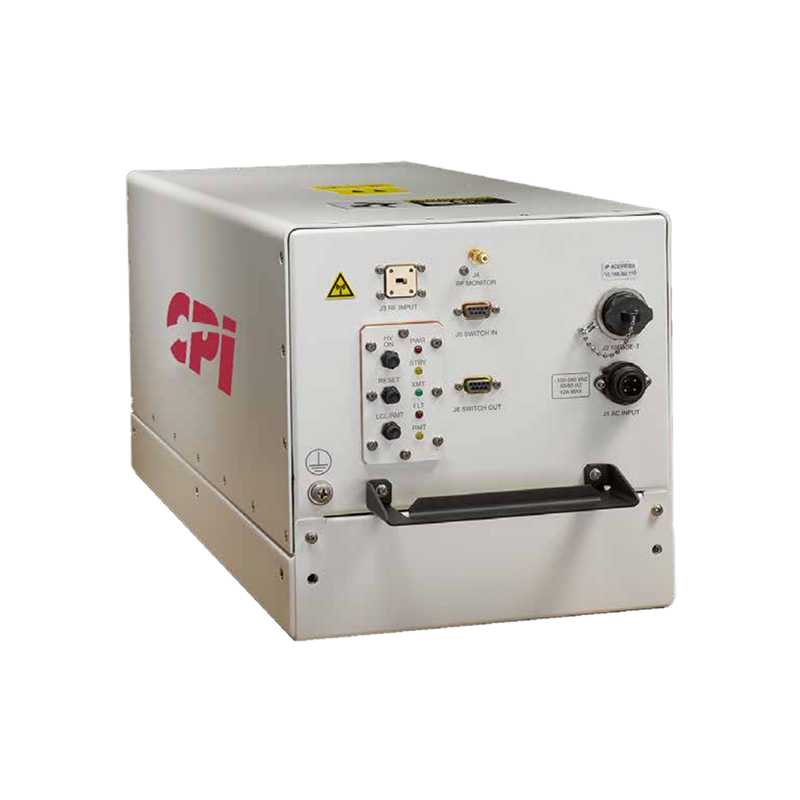

CPI 750W Peak Ka-Band Liquid-Cooled TWTA — Model TL07KO-L1

High-Performance Ka-Band Amplifier for Satellite Uplink Communications
The CPI TL07KO-L1 delivers 750 watts of peak power in a rugged, compact, and weatherproof design, making it perfect for fixed earth station applications. This liquid-cooled TWTA is optimized for wideband single- and multi-carrier satellite services within the 27.0 to 31.0 GHz Ka-band frequency range, ensuring reliable, high-performance communications.

Key Features & Benefits

Cost-Effective and Energy Efficient
Featuring a high-efficiency helix traveling wave tube (TWT), this amplifier reduces operational costs while ensuring optimal performance. The liquid cooling system improves overall efficiency, extending the lifespan of critical components.

Rugged and Easy to Maintain
The TL07KO-L1 is designed for durability in demanding environments, with a weatherproof enclosure and easy access for maintenance. Built-in fault diagnostics and a CAN-Bus architecture enhance reliability and ensure improved noise immunity, making it an excellent choice for mission-critical applications.

Meets Global Standards
The TL07KO-L1 complies with International Safety Standard EN-60215, Electromagnetic Compatibility (EMC) 2014/30/EU, and Harmonic Standard EN-61000-3-2, ensuring it meets global regulatory requirements. It is CE Marked and licensed for import in Brazil and China.

Worldwide Support
With over 40 years of satellite communications experience, CPI offers a 24/7 global customer support network, including regional service centers for fast and reliable assistance.

ISO 9001:2015 Certified
Manufactured under the strict guidelines of the ISO 9001:2015 Quality Management System, ensuring high reliability and performance.

Advanced Features

• Ethernet Interface with an integrated web server for easy monitoring and remote control

• SNMP (v1, v2, v3) interface for efficient network management and integration

• Built-in Diagnostics for remote fault detection and troubleshooting

Available Options

• LifeExtender™/LifePredictor™ to extend the lifespan of the TWT

• Remote Control Panel for simplified operation

• Internal Switch Control and Drive for flexible system configurations

• Redundant or Power-Combined Subsystems to enhance reliability and uptime

• Integral L-Band Block Upconverter (BUC) — Contact CPI for specifications

• Uplink Power Control (UPC) for precise power regulation

• Integral Linearizer to improve intermodulation performance

• RS-422/485 Serial Interface for enhanced connectivity options

• Harmonic Filter — Lowers harmonic output to -60 dBc max, with minimal impact on CW and peak power (0.1 dB)

• Air Cooling Option — See MKT-603 or contact CPI for further details

Applications

• Fixed Earth Stations for high-performance Ka-Band satellite uplinks

• Broadcasting and Telecommunication Networks

• Government and Defense Communications systems

The CPI TL07KO-L1: A reliable and efficient solution for high-powered Ka-Band satellite uplink communications.
