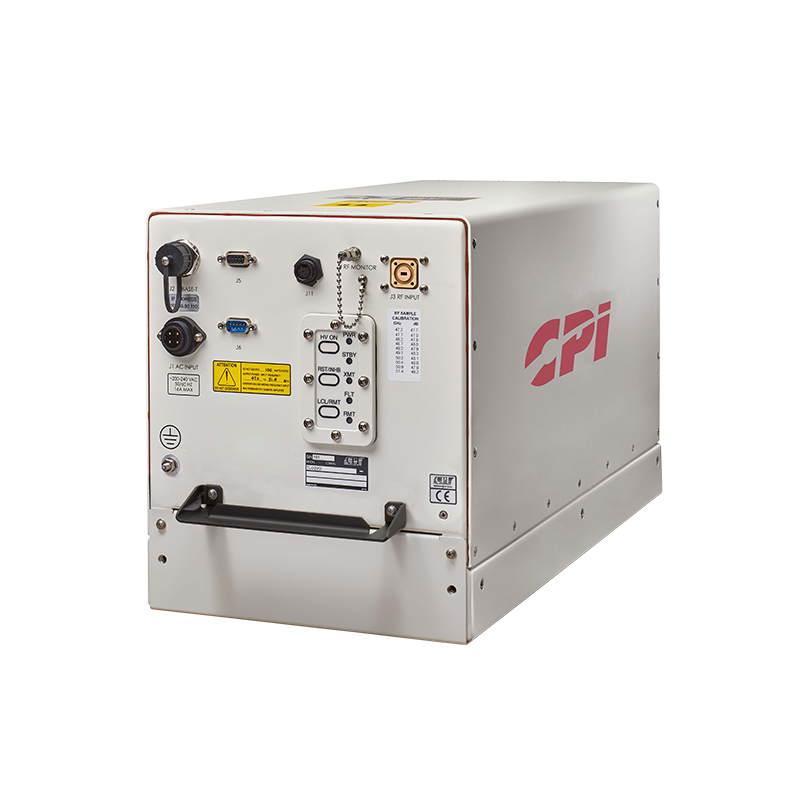

CPI TL02VO-A1 250 W Peak V-Band Outdoor TWTA

CPI TL02VO-A1 250 W Peak V-Band Outdoor TWTA

The CPI TL02VO-A1 is a compact, weatherproof 250 W peak V-band outdoor traveling wave tube amplifier designed for wideband single- and multicarrier satellite uplinks. It delivers 200 W peak and 80 W rated linear output power at the amplifier flange, with standard 47.2–51.4 GHz coverage or optional extended operation through 52.4 GHz.

Output Frequency Range: 47.2–51.4 GHz standard; 47.2–52.4 GHz optional
Standard Bandwidth: 4.2 GHz
Optional Bandwidth: 5.2 GHz
Peak TWT Flange Power: 250 W (53.97 dBm)
Peak Amplifier Flange Power: 200 W (53.00 dBm)
Rated Linear Amplifier Flange Power: 80 W (49.03 dBm)
Intermodulation Relative to Carrier Sum: -28 dBc max. at 80 W total output with optional linearizer
Intermodulation Relative to Each Carrier: -25 dBc max. at 80 W total output with optional linearizer
Noise Power Ratio with Linearizer: 19 dB at 80 W for 47.2–51.4 GHz; 19 dB at 75 W for 47.2–52.4 GHz
Spectral Regrowth: -30 dBc max. at rated power with optional linearizer
Gain: 60 dB min.; 64 dB typ. at 3 dB output backoff
RF Level Adjustment Range: 0–30 dB typ. via PIN-diode attenuator, in 0.1 dB steps
Gain Stability: ±0.25 dB max. over 24 hours at constant drive and temperature after 30-minute warmup
Small-Signal Gain Variation, 47.2–51.4 GHz: 4 dB peak-to-peak max. across the full band; 2.5 dB max. over any 1 GHz; 1 dB peak-to-peak max. over any 250 MHz
Small-Signal Gain Variation, 47.2–52.4 GHz: 5 dB peak-to-peak max. across the full band; 3.0 dB max. over any 1 GHz; 1.5 dB peak-to-peak max. over any 250 MHz
Input/Output VSWR: 1.3:1 max.
Load VSWR: 2.0:1 max. operational; operation without damage at any value
Phase Noise: 15 dB below the IESS-308 continuous mask
AC Fundamental Spurious: -45 dBc
Sum of Spurious Signals: -50 dBc
AM/PM Conversion: 2.5°/dB max. for a single carrier at up to 4 dB output backoff; at rated power with optional linearizer
Harmonic Output, 47.2–51.4 GHz: -60 dBc with optional harmonic filter
Harmonic Output, 47.2–52.4 GHz: -60 dBc standard
Noise Density: Less than -150 dBW/4 kHz below 31.4 GHz and from 37.5–42.5 GHz; less than -70 dBW/4 kHz in the passband
Group Delay Over 40 MHz: 0.01 ns/MHz linear max.; 0.001 ns/MHz² parabolic max.; 0.5 ns peak-to-peak ripple max.
Primary Power: Single-phase 100–240 VAC ±10%, 47–63 Hz
Power Consumption: 1,100 VA max.
Power Factor: 0.95 min.; 0.99 typ.
Cooling: Forced air with integral blower
Operating Temperature: -40°C to +55°C in direct sunlight; up to +60°C out of direct sunlight
Non-Operating Temperature: -54°C to +71°C
Relative Humidity: 100% condensing
Operating Altitude: Up to 10,000 ft. with standard derating of 2°C per 1,000 ft.
Non-Operating Altitude: Up to 50,000 ft.
Shock: 20 g peak, 11 ms half-sine pulse
Vibration: 2.1 g RMS from 5–500 Hz, non-operating
RF Input, 47.2–51.4 GHz: WR-22 cover flange with alignment pins; WR-19 optional
RF Output, 47.2–51.4 GHz: WR-22 grooved flange with alignment pins; WR-19 optional
RF Input, 47.2–52.4 GHz: WR-19 cover flange with alignment pins
RF Output, 47.2–52.4 GHz: WR-19 grooved flange with alignment pins
RF Output Monitor: 1.85 mm female coaxial connector
Standard M&C Interface: Ethernet with integral web server
Optional Serial Interface: RS-232/422
Dimensions: 10.25 × 11.37 × 22.25 in. (261 × 289 × 566 mm)
Weight: 65 lb. (29.5 kg) nominal with options
Heat Dissipation: 1,000 W max.
Acoustic Noise: 68 dBA nominal at 3 ft.
Compliance: CE certified; EMC Directive 2014/30/EU; EN 60215; EN 61000-3-2; ISO 9001:2015 quality management

Key Features:

• 250 W peak V-band TWT flange power

• 200 W peak amplifier flange output power

• 80 W rated linear output power

• Standard 47.2–51.4 GHz frequency coverage

• Optional extended 47.2–52.4 GHz operation

• Up to 5.2 GHz of instantaneous bandwidth

• Wideband single- and multicarrier satellite service

• Compact, rugged and weatherproof outdoor enclosure

• Antenna-mounted design minimizes interfacility-link losses

• 60 dB minimum gain

• PIN-diode attenuation in 0.1 dB steps

• Integrated Ethernet interface and web server

• SNMP v1, v2 and v3 support

• CAN-Bus architecture for improved reliability and noise immunity

• Built-in fault diagnostics and remote monitoring

• Optional integral linearizer

• Optional integrated 1:1 switch control and drive

• Optional redundant systems

• Optional liquid-cooled configuration

• Optional uplink power control

• Optional harmonic filter for the 47.2–51.4 GHz version

• Optional RS-232/422 serial interface

• Optional remote control panel
