CPI TL02VO-L1

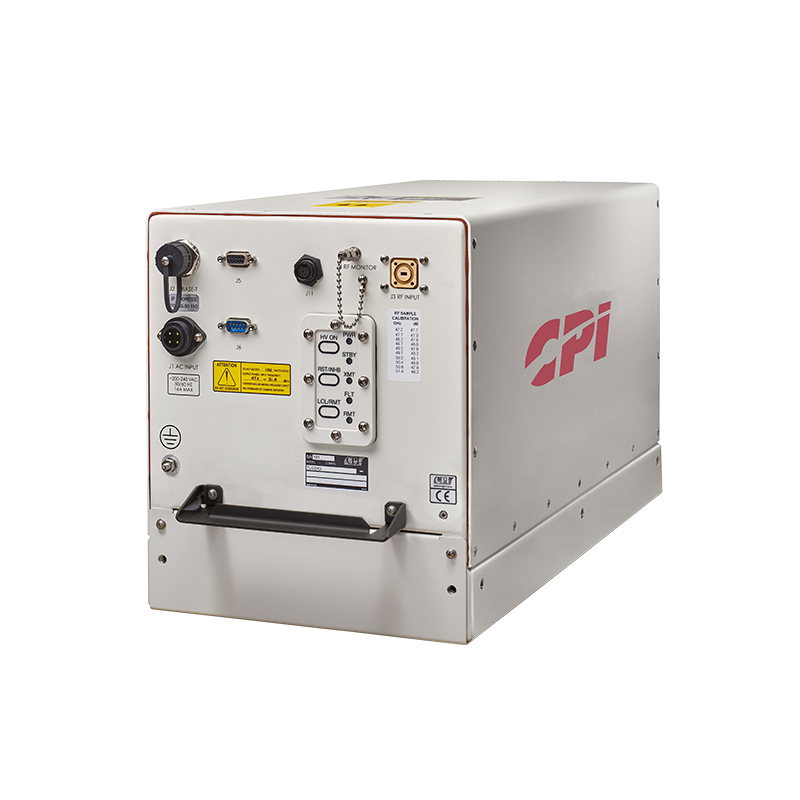

CPI 250W Peak V-Band Liquid-Cooled Outdoor TWTA — Model TL02VO-L1

Reliable V-Band TWTA for Satellite Uplink Communications

The CPI TL02VO-L1 is a rugged, compact, and highly efficient V-Band TWTA designed for satellite uplink communications. It delivers a minimum of 80 watts of linear power, housed in a weatherproof, digital-ready package. This amplifier is optimized for wideband single- and multi-carrier satellite service within the V-band frequency range (47.2 to 52.4 GHz), with a 4.2 GHz bandwidth (5.2 GHz bandwidth is optional). It is ideal for fixed earth station applications that demand high performance in a small form factor.

Cost-Effective and Efficient

The amplifier can be mounted directly at the antenna, reducing IFL (Inter-Facility Link) losses and enhancing overall system performance. This design choice also reduces system design costs. The unit provides 80 watts of linear power at the amplifier flange, ensuring maximum efficiency.

Rugged and Easy to Maintain

Built for durability, the TL02VO-L1 is equipped with a CAN-Bus architecture that enhances reliability and reduces noise interference. It features a user-friendly, microprocessor-controlled logic system with integrated Ethernet for seamless communication and monitoring. Additionally, the system has built-in fault diagnostics for remote monitoring and control, and its easy-access enclosure simplifies maintenance and service.

Meets Global Standards

The TL02VO-L1 complies with international safety and electromagnetic compatibility standards, including EN-60215, EMC Directive 2014/30/EU, and Harmonic Standard EN-61000-3-2. The unit is CE certified, SNMP-enabled, and suitable for use in global markets.

Worldwide Support

Backed by over 40 years of expertise in satellite communications, CPI provides 24/7 customer support through a global network of more than 20 regional factory service centers.

Key Features:

• Ethernet Interface: Built-in web server for easy monitoring and control.

• SNMP Interface: Supports SNMP (v1, v2, or v3) for high-level management and integration.

• EMC Directive Compliance: Fully compliant with EMC Directive 2014/30/EU and Harmonic Standard EN-61000-3-2.

Available Options:

• 5.2 GHz Operation: Capable of operation from 47.2 to 52.4 GHz (contact CPI for specifications).

• Remote Control Panel: Provides direct control for operational flexibility.

• Integral Linearizer: For improved intermodulation performance.

• 1:1 Switch Control & Drive: Available for enhanced redundancy.

• Air Cooling: See CPI document MKT-422 for dimensions and specifications.

• Redundant Systems: Optional systems for added reliability.

• Harmonic Filter: Standard on the 52.4 GHz version, optional for the 51.4 GHz version.

• Serial Interface (RS232/422): For seamless data communication.

• Uplink Power Control: For optimized uplink power management.

Quality Management System

Manufactured under ISO 9001:2015 quality standards.
