CPI T9UI 1.25 kW Ku-Band TouchPower Indoor TWTA

CPI T9UI 1.25 kW Ku-Band TouchPower Indoor TWTA

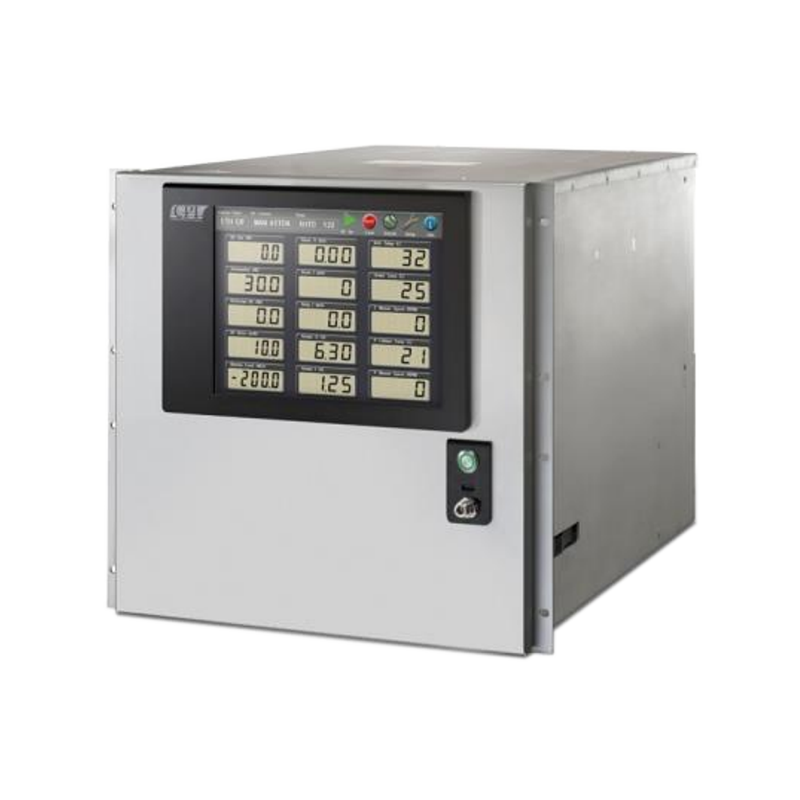

The CPI T9UI is a 1.25 kW Ku-band TouchPower indoor traveling wave tube amplifier for high-power satellite uplinks. Covering 13.75–14.50 GHz, it delivers 1,100 W of saturated CW output power at the flange and 540 W of linear multicarrier power. The compact 9RU rack-mount amplifier combines an integral linearizer with touchscreen system control and comprehensive Ethernet, serial and USB connectivity.

Output Frequency Range: 13.75–14.50 GHz
Instantaneous Bandwidth: 750 MHz
TWT CW Output Power: 1,250 W (60.97 dBm) min.
Saturated CW Output Power at Flange: 1,100 W (60.41 dBm) min.
Linear Output Power: 540 W
Gain: 70 dB min.
RF Level Adjustment Range: 0–30 dB via PIN-diode attenuator, in 0.1 dB steps
Gain Stability: ±0.25 dB max. over 24 hours at constant drive and temperature after 30-minute warmup
Gain Stability Over Temperature: ±0.1 dB typ. at constant drive
Small-Signal Gain Slope: ±0.02 dB/MHz max.
Small-Signal Gain Variation: 1.5 dB peak-to-peak max. across any 80 MHz; 4.0 dB peak-to-peak max. across the 750 MHz band
Input/Output VSWR: 1.3:1 max.
Load VSWR: 1.5:1 max. for full specification compliance; 2.0:1 max. for continuous operation; operation without damage at any value
Phase Noise: 12 dB below the IESS-308/309 phase-noise profile
AC Fundamental Spurious: -50 dBc at 50/60 Hz
Sum of Spurious Signals: -47 dBc from 370 Hz to 1 MHz
AM/PM Conversion: 2.5°/dB max. for a single carrier at 57 dBm output power
Harmonic Output: -60 dBc max.
Receive-Band Noise Density: Less than -150 dBW/4 kHz from 10.0–12.7 GHz
Passband Noise Density: Less than -70 dBW/4 kHz and less than -65 dBW/4 kHz, as both values are stated in the datasheet
Out-of-Band Noise Density: Less than -105 dBW/4 kHz from 18.0–26.0 GHz; less than -125 dBW/4 kHz from 26.0–40.0 GHz
Intermodulation: -25 dBc at 540 W output power
Intermodulation Test Conditions: Two equal carriers spaced 5 MHz apart; measured relative to the sum of the carriers
Spectral Regrowth: -30 dBc at one-symbol offset with a 5.6 Msps signal at 540 W output power
Group Delay Over Any 80 MHz: 0.01 ns/MHz linear max.; 0.001 ns/MHz² parabolic max.; 0.5 ns peak-to-peak ripple max.
Primary Power: Three-phase with neutral and ground; 200–240 VAC line-to-line ±10% or 380–415 VAC line-to-line ±10%; 47–63 Hz, five-wire
Power Consumption: 4.9 kVA typ. at 1,100 W output power
Power Factor: 0.92 min.; 0.95 typ.
Cooling: Forced air with integral blower; rear air intake and exhaust
Maximum External Pressure Loss: 0.25 in. water gauge
Operating Temperature: -10°C to +50°C
Non-Operating Temperature: -54°C to +71°C
Relative Humidity: 95% non-condensing
Operating Altitude: Up to 10,000 ft. with standard derating of 2°C per 1,000 ft.
Non-Operating Altitude: Up to 50,000 ft.
Shock and Vibration: Designed for normal transportation per MIL-STD-810E, Section 514.4; withstands 20 g, 11 ms half-sine pulse while non-operating
RF Input: Type N female
RF Output: WR-75G grooved waveguide flange, threaded UNF 2B 6-32
RF Output Monitor: Type N female
Ethernet Interface: RJ45 with embedded graphical user interface
Serial Interfaces: RS-422/485 and RS-232
USB Port: Firmware, configuration and log upload/download
Dimensions: 19 × 15.75 × 24 in. (483 × 400 × 610 mm)
Rack Height: 9RU
Weight: 155 lb. (70.5 kg) max.
Compliance: CE marked; EN 60215; EMC Directive 2014/30/EU; ISO 9001:2015 quality management

Key Features:

• 1.25 kW minimum Ku-band CW TWT output power

• 1,100 W minimum saturated CW output power at the flange

• 540 W linear output power for multicarrier operation

• 13.75–14.50 GHz frequency coverage

• 750 MHz instantaneous bandwidth

• Compact 9RU rack-mount configuration

• High-power satellite uplink operation

• Integral linearizer for improved multicarrier performance

• Touchscreen graphical user interface

• Amplifier- and system-level control

• Fault logs, parameter trending and performance monitoring

• Internal redundancy switch control

• 70 dB minimum gain

• PIN-diode attenuation in 0.1 dB steps

• RJ45 Ethernet with embedded graphical interface

• RS-232 and RS-422/485 serial interfaces

• USB port for firmware, configurations and logs

• Modular construction with built-in fault diagnostics

• Optional single- or dual-band block upconverter

• Optional integrated switch control and drive

• Optional redundant and hybrid power-combined systems

• Optional remote control panel

• Optional uplink power control

• Optional receive-band reject filter

• Optional TWT LifeExtender/LifePredictor technology
