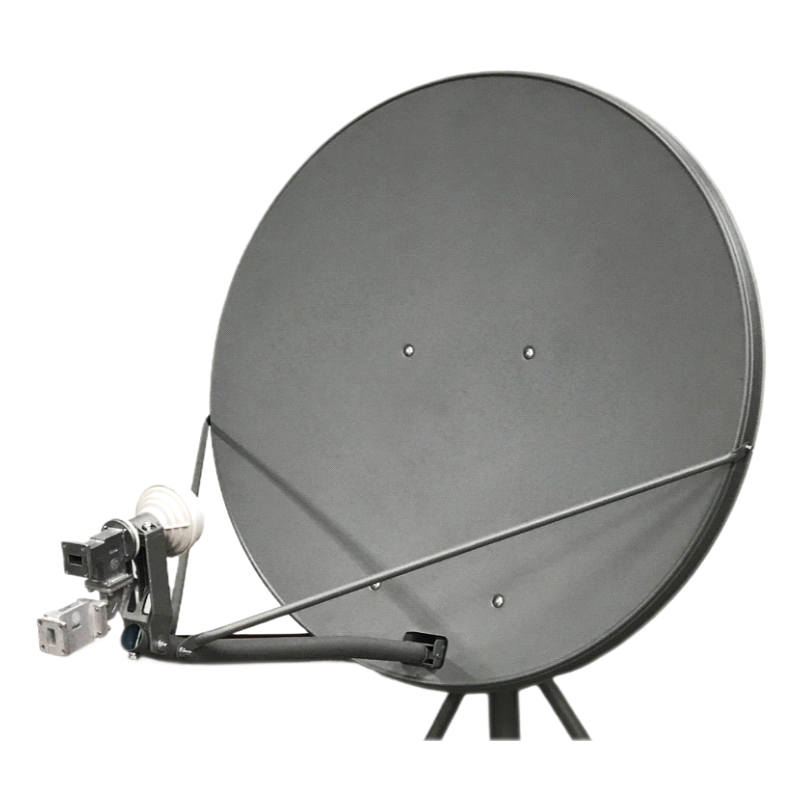

ESATCOM® ESAT-097TXRXKU 97cm Ku-Band Tx/Rx VSAT Antenna

ESATCOM® ESAT-097TXRXKU 97 cm Ku-Band Tx/Rx VSAT Antenna

The ESATCOM® ESAT-097TXRXKU is a high-efficiency 97 cm Ku-band Tx/Rx VSAT antenna designed for reliable two-way satellite communication systems. Its elliptical galvanized-steel reflector provides a minimum efficiency of 70%, precise azimuth and elevation adjustment, and dependable operation in demanding outdoor environments.

Model: ESAT-097TXRXKU
Antenna Type: Ku-Band Tx/Rx VSAT Antenna
Transmit Frequency Range: 13.75–14.50 GHz
Receive Frequency Range: 10.70–12.75 GHz
Transmit Gain: 40.7 dBi at 14 GHz
Receive Gain: 39.1 dBi at 12.75 GHz
Efficiency: 70% minimum
Transmit 3 dB Beamwidth: 1.6° maximum
Receive 3 dB Beamwidth: 1.8° maximum
Transmit Cross-Polarization: 30 dB
Receive Cross-Polarization: 25 dB
Feed Interface: WR75
Reflector Type: Elliptical offset reflector
Offset Angle: 18.44°
Aperture Diameter: 95.8 cm
Reflector Dimensions: 97 × 99.8 cm
F/D Ratio: 0.75
Focal Length: 710 mm
Mounting Type: Pole mount
Adjustment: Adjustable azimuth and elevation
Elevation Range: 10°–90°
Azimuth Range: 0°–360°
Compatible Pole Diameter: 60 mm
Reflector Material: Galvanized steel
Finish: Polyester coating
Color: Light grey or dark grey
Operational Wind Speed: Up to 55 mph
Survival Wind Speed: Up to 100 mph
Operating Temperature: -40°C to +60°C
Relative Humidity: 0–100%

Key Features

• 97 cm Ku-band antenna for satellite transmit and receive applications

• Wide 10.70–12.75 GHz receive frequency coverage

• Standard 13.75–14.50 GHz Ku-band transmit coverage

• High 70% minimum antenna efficiency

• WR75 transmit and receive feed interfaces

• Fully adjustable azimuth and elevation

• Durable galvanized-steel reflector with polyester coating

• Designed to survive wind speeds up to 100 mph

Available now at Esatcom Inc. Please contact us for pricing and lead time.
