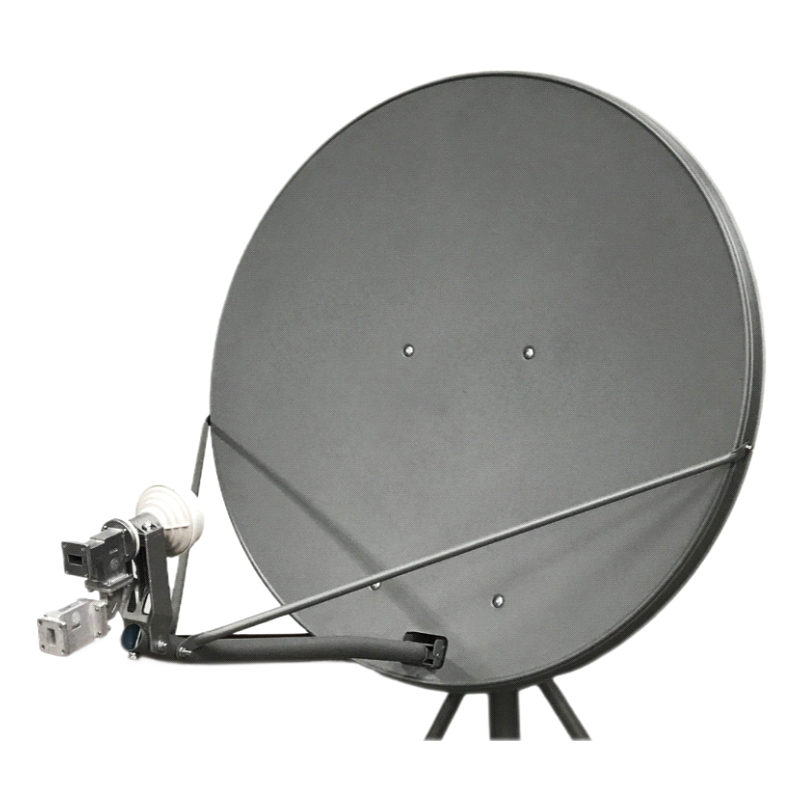

ESATCOM® ESAT-097TXRXKA 97cm Ka-Band Tx/Rx VSAT Antenna

ESATCOM® ESAT-097TXRXKA 97 cm Ka-Band Tx/Rx VSAT Antenna

The ESATCOM® ESAT-097TXRXKA is a high-efficiency 97 cm Ka-band Tx/Rx VSAT antenna covering 29.0–31.0 GHz transmit and 19.2–21.2 GHz receive frequencies. Its elliptical galvanized-steel reflector provides high gain, precise azimuth and elevation adjustment, and reliable performance in demanding outdoor environments.

Model: ESAT-097TXRXKA
Antenna Type: Ka-Band Tx/Rx VSAT Antenna
Transmit Frequency Range: 29.0–31.0 GHz
Receive Frequency Range: 19.2–21.2 GHz
Transmit Gain: 46.9 dBi at 29.0 GHz
Receive Gain: 43.9 dBi at 19.2 GHz
Efficiency: 70% minimum
Transmit 3 dB Beamwidth: 0.7° maximum
Receive 3 dB Beamwidth: 1.1° maximum
Transmit Cross-Polarization: 30 dB minimum
Receive Cross-Polarization: 25 dB minimum
Reflector Type: Elliptical offset reflector
Offset Angle: 18.44°
Aperture Diameter: 95.8 cm
Reflector Dimensions: 97 × 99.8 cm
F/D Ratio: 0.75
Focal Length: 710 mm
Mounting Type: Pole mount
Adjustment: Adjustable azimuth and elevation
Elevation Range: 10°–90°
Azimuth Range: 0°–360°
Compatible Pole Diameter: 60 mm
Reflector Material: Galvanized steel
Finish: Polyester coating
Color: Light grey or dark grey
Operational Wind Speed: Up to 55 mph
Survival Wind Speed: Up to 100 mph
Operating Temperature: -40°C to +60°C
Relative Humidity: 0–100%

Key Features

• 97 cm Ka-band antenna for satellite transmit and receive applications

• 29.0–31.0 GHz transmit frequency coverage

• 19.2–21.2 GHz receive frequency coverage

• High gain of 46.9 dBi Tx and 43.9 dBi Rx

• High 70% minimum antenna efficiency

• 30 dB minimum transmit cross-polarization

• Fully adjustable azimuth and elevation

• Durable galvanized-steel reflector with polyester coating

• Designed to survive wind speeds up to 100 mph

Available now at Esatcom Inc. Please contact us for pricing and lead time.
