WR137 Flexible Twistable Waveguide 24 Inches (ESAT-FW-137-24-N-01-01-R)

WR137 Flexible Twistable Waveguide – 24 Inches

Model: ESAT-FW-137-24-N-01-01-R

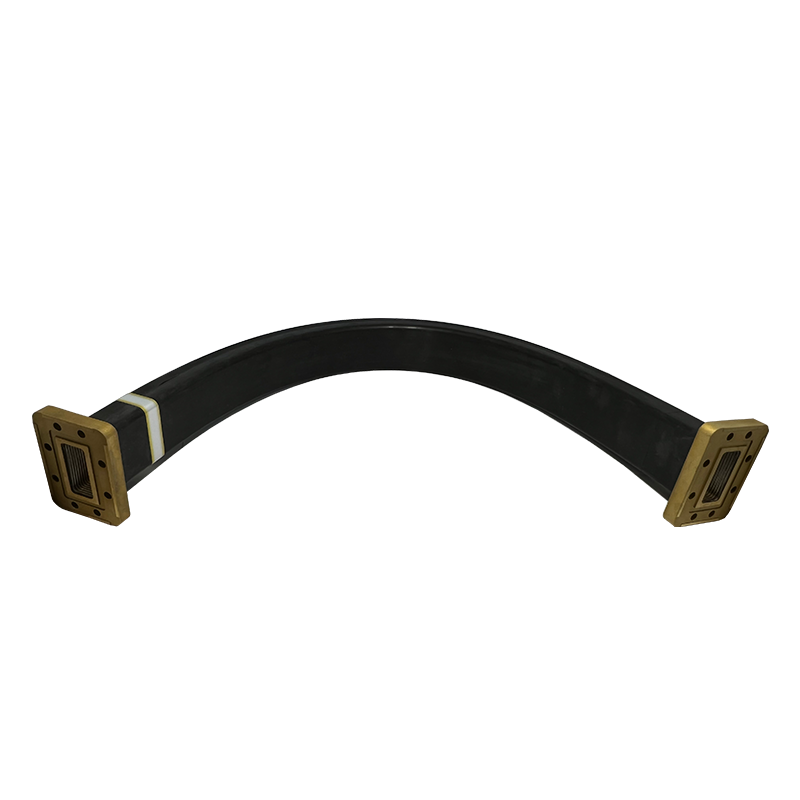

The ESAT-FW-137-24-N-01-01-R is a 24-inch WR137 flexible and twistable waveguide designed for 5.85–8.2 GHz applications. Featuring brass CPRG flanges and a durable neoprene rubber jacket, this waveguide supports both E-plane and H-plane flexibility, making it ideal for C-band uplink systems, BUC interconnections, and SATCOM ground stations.

Available now at Esatcom Inc., your trusted supplier of SATCOM waveguide components.

Key Specifications

Waveguide Size: WR137 (R70)
Operating Frequency: 5.85 – 8.20 GHz
Length: 24 inches
Insertion Loss: 0.06 dB/ft.
VSWR: 1.07 (≤36 in.), 1.11 (>36 in.)
Power Rating: 1700 Watts
Design: Flexible and twistable, E-plane & H-plane
Jacket: Neoprene rubber
Flanges: Brass, CPRG/CPRG
Static Bending Radius (Min.):
      E-plane: 4.0 inches
      H-plane: 8.0 inches
Repeated Bending Radius (Min.):
      E-plane: 16 inches
      H-plane: 32 inches
Static Twisting Rating (Max.): 64 ± deg/ft
Repeated Twisting Rating (Max.): 16 ± deg/ft
Static Length Tolerance: 0.13 (1%) ± inches/foot
Static Internal Pressure Rating (Max.): 30 psig

Flange Options

Other flange types are available upon request, including CPRG, CPRF, Cover Flat, Cover Grooved, Choke, Round, Square, and custom hole patterns.
Please contact Esatcom Inc. to specify your required flange configuration.
