WR75 Flexible Twistable Waveguide 48 Inches (ESAT-FW-75-48-N-03-04-R)

WR75 Flexible Twistable Waveguide – 48 Inches

Model: ESAT-FW-75-48-N-03-04-R

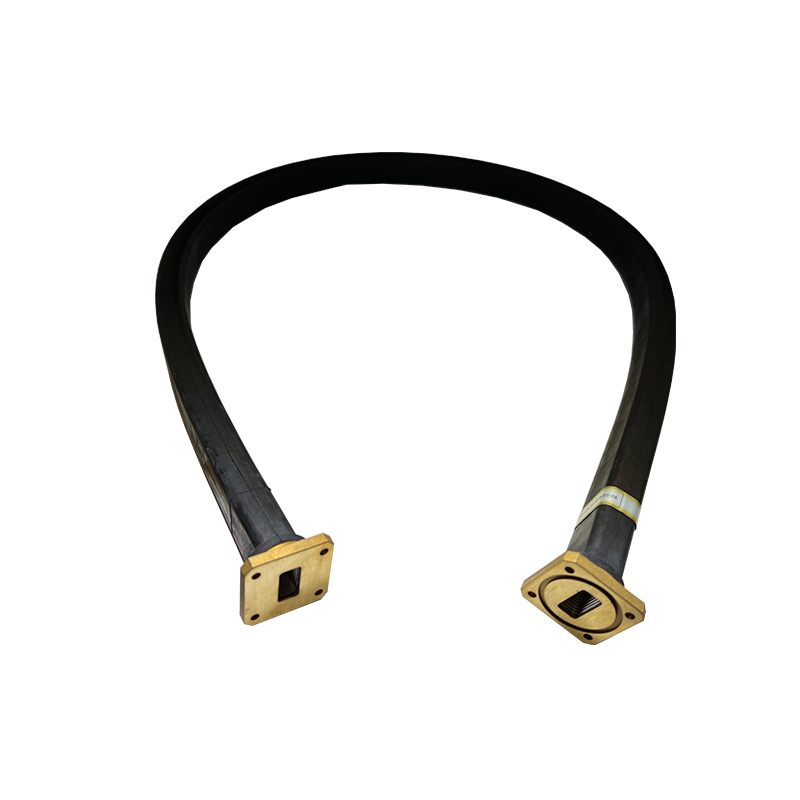

The ESAT-FW-75-48-N-03-04-R is a 48-inch WR75 flexible and twistable waveguide designed for 10.0–15.0 GHz Ku-band applications. Featuring brass Cover Flat - Square and Cover Grooved - Square flanges and a durable neoprene rubber jacket, this assembly provides excellent E-plane and H-plane flexibility with low insertion loss and reliable power handling for Ku-band BUC and antenna feed integrations.

Available now at Esatcom Inc., your trusted supplier of SATCOM waveguide components.

Key Specifications

Waveguide Size: WR75 (R120)
Operating Frequency: 10.0 – 15.0 GHz
Length: 48 inches
Insertion Loss: 0.13 dB/ft.
VSWR: 1.10 (≤36 in.), 1.12 (>36 in.)
Power Rating: 500 Watts
Design: Flexible and twistable
Flexibility: E-plane & H-plane
Jacket: Neoprene rubber
Flanges: Brass

      Flange 1: Cover Flat - Square

      Flange 2: Cover Grooved - Square

Static Bending Radius (Min.):
      E-plane: 2.1 inches
      H-plane: 4.2 inches
Repeated Bending Radius (Min.):
      E-plane: 8.5 inches
      H-plane: 17 inches
Static Twisting Rating (Max.): 112 ± deg/ft
Repeated Twisting Rating (Max.): 28 ± deg/ft
Static Length Tolerance: 0.13 (1%) ± inches/foot
Static Internal Pressure Rating (Max.): 45 psig

Flange Options

Other flange types are available upon request, including Cover Flat, Cover Grooved, Choke, Square, and custom hole patterns.
Please contact Esatcom Inc. to specify your required flange configuration.
