WR112 Flexible Twistable Waveguide – 48 Inches

WR112 Flexible Twistable Waveguide – 48 Inches

Model: ESAT-FW-112-48-N-04-04-R

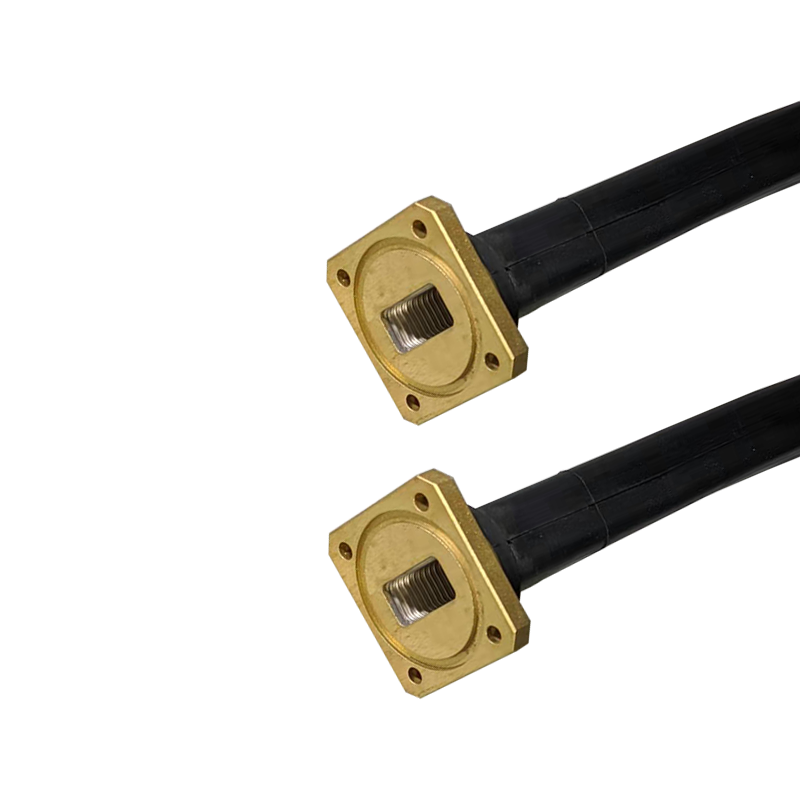

The ESAT-FW-112-48-N-04-04-R is a 48-inch WR112 flexible and twistable waveguide designed for 7.05–10.00 GHz C-band and X-band applications. Engineered for simultaneous E-plane and H-plane flexibility, this assembly features brass square Cover Grooved flanges on both ends and a durable neoprene rubber jacket, providing stable RF performance for BUC, feed, and antenna integrations. Available now at Esatcom Inc.

Key Specifications

Waveguide Size: WR112 (R84)
Operating Frequency: 7.05 – 10.00 GHz
Length: 48 inches
Insertion Loss: 0.07 dB/ft. (0.23 dB/m)
VSWR: 1.09 (≤36 in.), 1.12 (>36 in.)
Power Rating: 1200 Watts
Design: Flexible and twistable
Flexibility: E-plane & H-plane
Jacket: Neoprene rubber
Flanges: Brass
      Flange 1: Cover Grooved – Square
      Flange 2: Cover Grooved – Square
Static Bending Radius (Min.):
      E-plane: 3.0 inches
      H-plane: 6.0 inches
Repeated Bending Radius (Min.):
      E-plane: 12 inches
      H-plane: 24 inches
Static Twisting Rating (Max.): 79 ± deg/ft
Repeated Twisting Rating (Max.): 20 ± deg/ft
Static Length Tolerance: 0.13 (1%) ± inches/foot
Static Internal Pressure Rating (Max.): 35 psig
