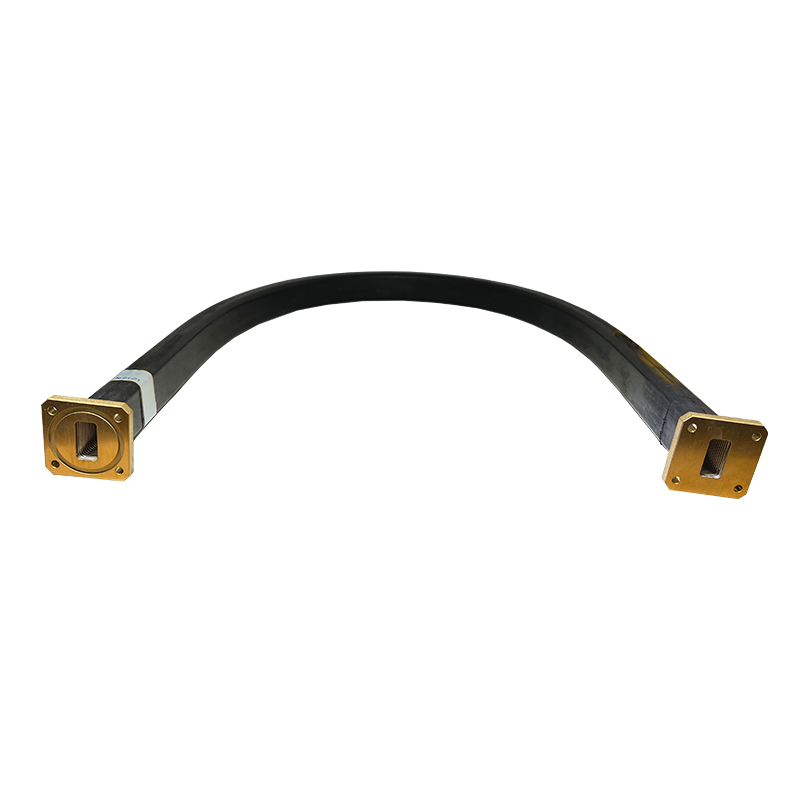

WR62 Flexible Twistable Waveguide 36 Inches (ESAT-FW-62-36-N-03-04-R)

WR62 Flexible Twistable Waveguide – 36 Inches

Model: ESAT-FW-62-36-N-03-04-R

The ESAT-FW-62-36-N-03-04-R is a 36-inch WR62 flexible and twistable waveguide designed for 12.4–18.0 GHz Ku-band applications. Featuring brass square Cover Flat and Cover Grooved flanges and a durable neoprene rubber jacket, this assembly provides reliable E-plane and H-plane flexibility with stable RF performance for Ku-band BUC and antenna feed integrations.

Available now at Esatcom Inc., your trusted supplier of SATCOM waveguide components.

Key Specifications

Waveguide Size: WR62 (R140)
Operating Frequency: 12.4 – 18.0 GHz
Length: 36 inches
Insertion Loss: 0.16 dB/ft. (0.52 dB/m)
VSWR: 1.12 (≤36 in.), 1.15 (>36 in.)
Power Rating: 220 Watts
Design: Flexible and twistable
Flexibility: E-plane & H-plane
Jacket: Neoprene rubber
Flanges: Brass
      Flange 1: Cover Flat – Square
      Flange 2: Cover Grooved – Square
Static Bending Radius (Min.):
      E-plane: 1.8 inches
      H-plane: 3.6 inches
Repeated Bending Radius (Min.):
      E-plane: 7.0 inches
      H-plane: 14 inches
Static Twisting Rating (Max.): 136 ± deg/ft
Repeated Twisting Rating (Max.): 34 ± deg/ft
Static Length Tolerance: 0.13 (1%) ± inches/foot
Static Internal Pressure Rating (Max.): 45 psig

Flange Options

Other flange types are available upon request, including Cover Flat, Cover Grooved, Choke, Square, and custom hole patterns.
Please contact Esatcom Inc. to specify your required flange configuration.
