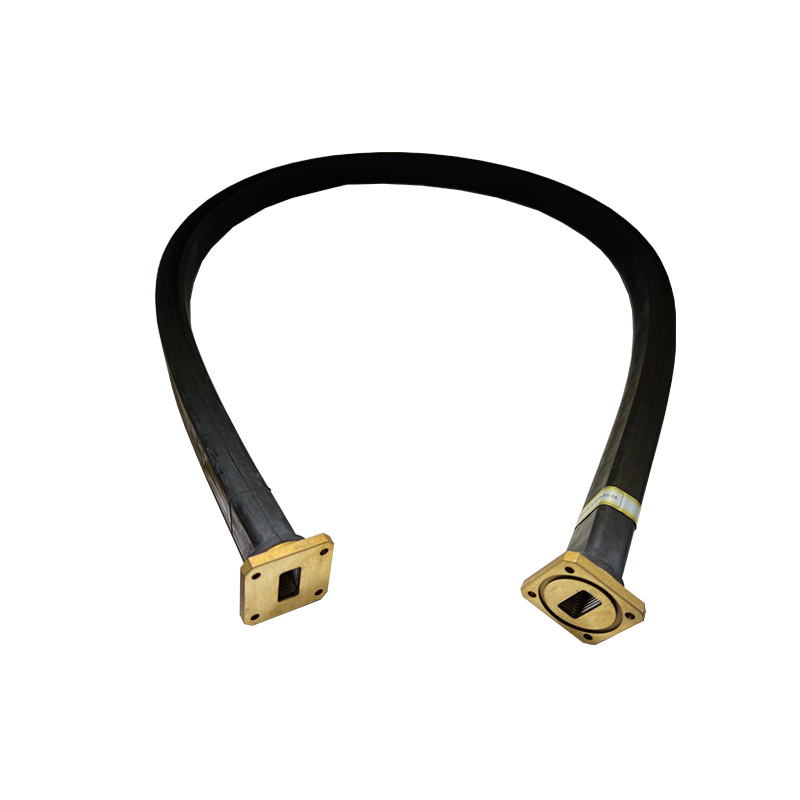

WR62 Flexible Twistable Waveguide – 48 Inches

WR62 Flexible Twistable Waveguide – 48 Inches

Model: ESAT-FW-62-48-N-03-04-R

The ESAT-FW-62-48-N-03-04-R is a 48-inch WR62 flexible and twistable waveguide designed for 12.4–18.0 GHz Ku-band applications. Featuring brass square Cover Flat and Cover Grooved flanges and a durable neoprene rubber jacket, this assembly provides reliable E-plane and H-plane flexibility with stable RF performance for Ku-band BUC and antenna feed integrations. Available now at Esatcom Inc.

Key Specifications

Waveguide Size: WR62 (R140)
Operating Frequency: 12.4 – 18.0 GHz
Length: 48 inches
Insertion Loss: 0.16 dB/ft. (0.52 dB/m)
VSWR: 1.12 (≤36 in.), 1.15 (>36 in.)
Power Rating: 220 Watts
Design: Flexible and twistable
Flexibility: E-plane & H-plane
Jacket: Neoprene rubber
Flanges: Brass
      Flange 1: Cover Flat – Square
      Flange 2: Cover Grooved – Square
Static Bending Radius (Min.):
      E-plane: 1.8 inches
      H-plane: 3.6 inches
Repeated Bending Radius (Min.):
      E-plane: 7.0 inches
      H-plane: 14 inches
Static Twisting Rating (Max.): 136 ± deg/ft
Repeated Twisting Rating (Max.): 34 ± deg/ft
Static Length Tolerance: 0.13 (1%) ± inches/foot
Static Internal Pressure Rating (Max.): 45 psig
