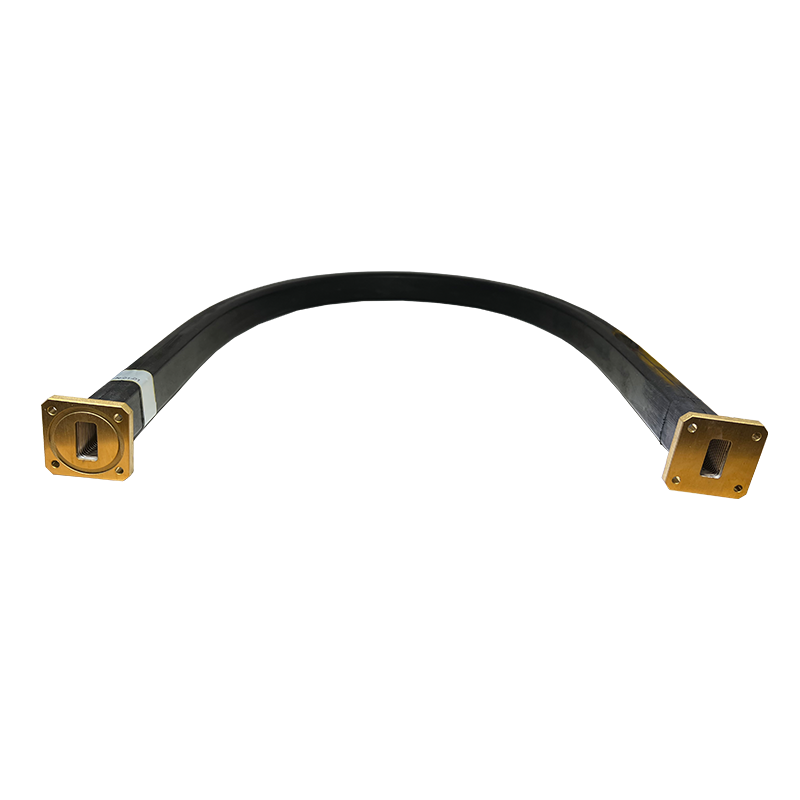

WR75 Flexible Twistable Waveguide – 36 Inches

WR75 Flexible Twistable Waveguide – 36 Inches

Model: ESAT-FW-75-36-N-03-04-R

The ESAT-FW-75-36-N-03-04-R is a 36-inch WR75 flexible and twistable waveguide designed for 10.0–15.0 GHz Ku-band applications. With brass Cover Flat - Square and Cover Grooved - Square flanges and a neoprene rubber jacket, this assembly provides dependable E-plane and H-plane flexibility, low insertion loss, and stable RF performance for Ku-band BUC-to-feed and antenna integrations.

Available now at Esatcom Inc.

Key Specifications

Waveguide Size: WR75 (R120)
Operating Frequency: 10.0 – 15.0 GHz
Length: 36 inches
Insertion Loss: 0.13 dB/ft.
VSWR: 1.10 (≤36 in.), 1.12 (>36 in.)
Power Rating: 500 Watts
Design: Flexible and twistable
Flexibility: E-plane & H-plane
Jacket: Neoprene rubber
Flanges: Brass

      Flange 1: Cover Flat - Square

      Flange 2: Cover Grooved - Square

Static Bending Radius (Min.):
      E-plane: 2.1 inches
      H-plane: 4.2 inches
Repeated Bending Radius (Min.):
      E-plane: 8.5 inches
      H-plane: 17 inches
Static Twisting Rating (Max.): 112 ± deg/ft
Repeated Twisting Rating (Max.): 28 ± deg/ft
Static Length Tolerance: 0.13 (1%) ± inches/foot
Static Internal Pressure Rating (Max.): 45 psig
