Dual Port C-Band Linear Feed
$172.00
Frequency Range 3.7 - 4.2 GHz
Security policy
Delivery policy
Return policy

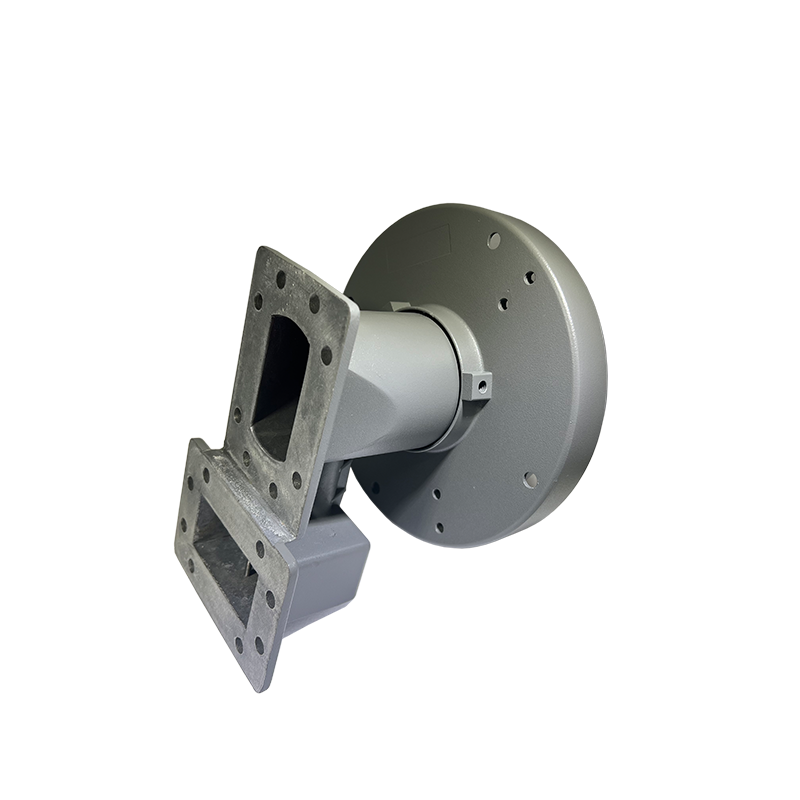

Prime Focus C-Band Dual Linear Feed Assembly (3.7–4.2 GHz)
Model: ESAT-FD-C-DUAL
The ESAT-FD-C-DUAL Prime Focus C-Band Dual Linear Feed is designed for satellite earth station antennas operating in the 3.7–4.2 GHz C-band downlink range. This dual-port feed assembly provides low signal loss, high cross-polarization isolation, and adjustable scalar ring optimization, making it ideal for professional SATCOM ground station installations. Its cast aluminum construction and universal mounting design ensure durability and compatibility with a wide range of prime focus antennas.
Key Specifications
Frequency Range: 3.7 – 4.2 GHz
Feed Type: Prime Focus Dual Linear Feed
Output Ports: WR229 Compatible
VSWR: 1.5:1 typ.
Cross Polarization Isolation: 25 dB typ.
f/D Ratio: 0.33 – 0.42
Scalar Ring: Adjustable
Mounting: Universal Mounting
Construction: Cast Aluminum
Operating Temperature: -40 °C to +60 °C
Size: 8 × 6.5 × 5 in
Weight: 2.23 lbs
Applications
C-Band satellite earth stations
Broadcast receive antennas
Teleport ground stations
Satellite internet gateway systems
Commercial VSAT networks
ESAT-FD-C-DUAL
Specific References
Frequency Range 3.7 - 4.2 GHz
