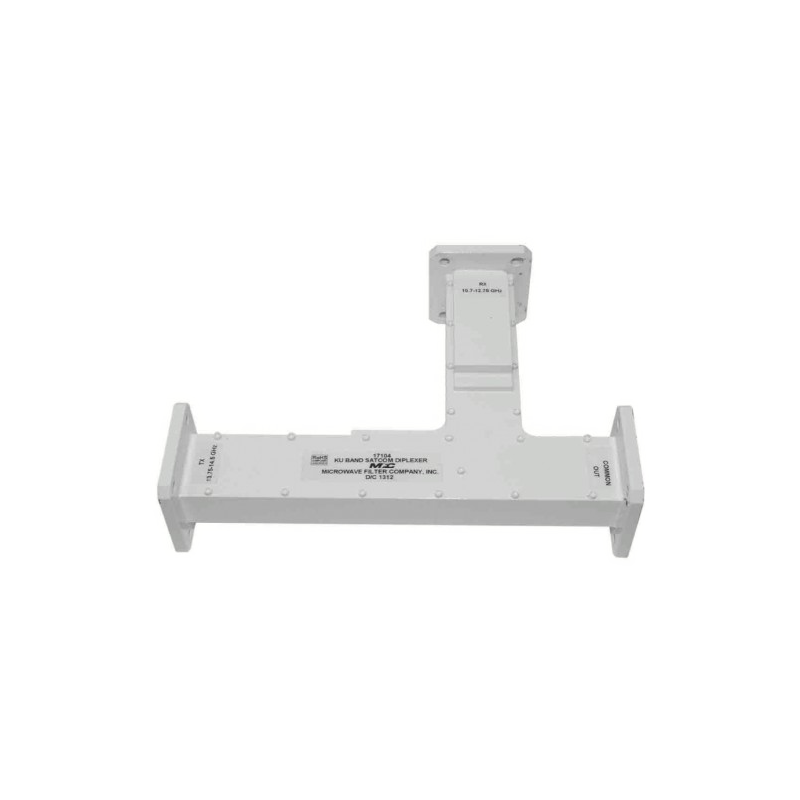

Universal Ku-Band Diplexer | Model 17104
The Model 17104 is a compact, bolt-on Ku-Band diplexer featuring high-Q bandpass filtering for reliable transmit and receive isolation. Supporting full Ku-band receive (10.7–12.75 GHz) and standard uplink (13.75–14.5 GHz), it offers excellent rejection and insertion loss performance. Ideal for universal SATCOM applications.
Key Features:
Transmit Band (TX): 13.75–14.5 GHz
Receive Band (RX): 10.7–12.75 GHz
Insertion Loss: 0.20–0.25 dB typ.
Return Loss: 23 dB typ. (TX & RX)
Rejection:
• TX: 90 dB typ., 80 dB min
• RX: 65 dB typ., 55 dB min
Power Handling: 500 W max
Flanges: WR75 cover
Size: 5.9 × 4.4 × 1.5 inches
Finish: Gloss white lacquer
Mounting: Bolt-on installation
No power supply required
MFC 17104
- Receive Band
- 10.7–12.75 GHz
- Output Band
- 13.75–14.5 GHz
- Ports
- 2
