Actox ABE2SC / ABE2SCF

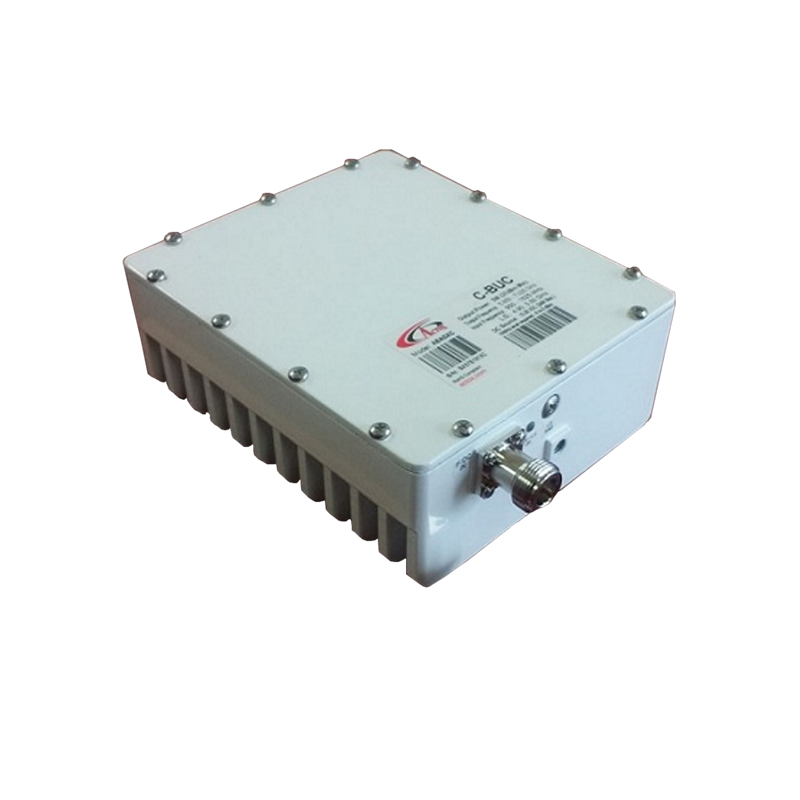

Actox ABE2SC / ABE2SCF – 2W Standard 5.85–6.425 GHz C-Band BUC

This smallest and lightest 2W L-To C-Band Block Up Converter is based on GaN technology. High power efficiency resulting in the lowest power consumption (<1.17 amps @ 48 VDC). The unit covers Standard (5.850-6.425 GHz) C-Band frequencies

Key Features

RF Frequency: 5.85 – 6.425 GHz

Output Power: 2W (+33 dBm min.)

Local Oscillator.: 4.90 GHz

IF Frequency: 950 – 1525 MHz

GaN technology for high efficiency and reliability

Low power consumption: 15W max.

Auto-ranging power input: +15 to +60 VDC

IF Connector: N-type or F-type (field-exchangeable)

Built-in redundancy option

Optional internal 10 MHz high stability reference

CPR137G waveguide output

IP67 weatherproof housing

MIL-STD-810E vibration and shock compliant

Operating temperature: -40°C to +55°C

Weight: 1 kg max.

RoHS compliant

Three-year warranty

Mechanical & Environmental

Compact feed-mount design

Dimensions: 140 × 120 × 52.5 mm

Weight: 1 kg max.

Altitude: Up to 23,000 feet

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
