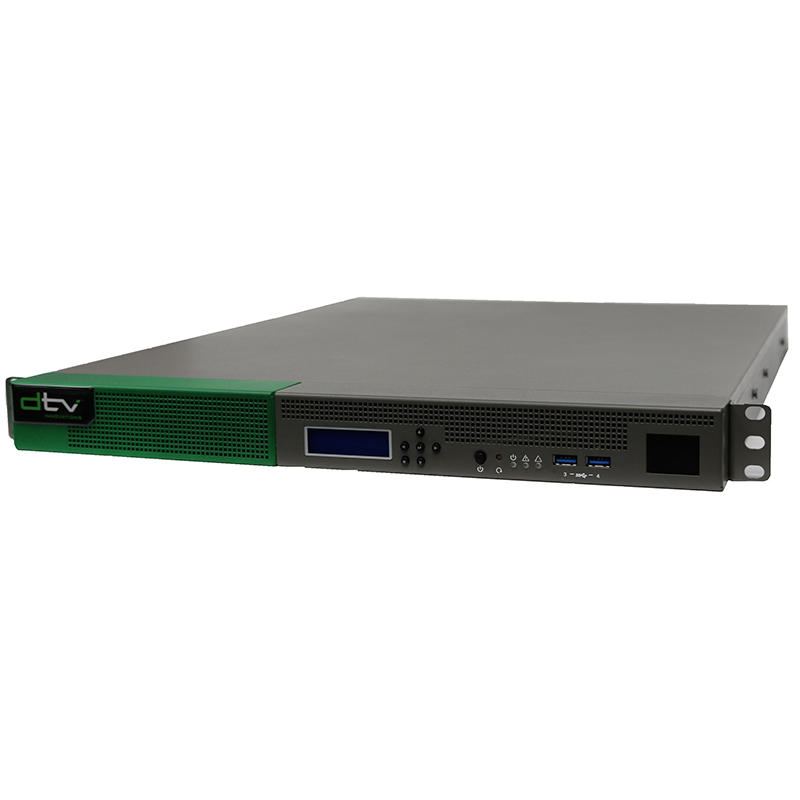

DTV Innovations Gryphon PVE-5 HEVC 4K Contribution Encoder

DTV Innovations Gryphon PVE-5 HEVC 4K Contribution Encoder

The DTV Innovations Gryphon PVE-5 is a professional HEVC 4K contribution video encoder designed for outside broadcasting, satellite news gathering, live sports and video distribution. It supports one 4K channel or up to four 1080p channels with ultra-low latency of less than one frame.

Gryphon PVE-5 supports HEVC/H.265, MPEG-4 AVC/H.264 and MPEG-2 compression with 4:2:0 or 4:2:2 chroma sampling and 8-bit or 10-bit processing. It provides configurable DVB-ASI interfaces, up to six Gigabit Ethernet ports, ARQ and SMPTE 2022-1/-2 transport-stream delivery over IP.

Its customizable, software-license-based architecture supports advanced configurations including 4Kp60, multi-channel 1080p60, AAC audio, an internal multiplexer and BISS encryption. An optional DVB-CID-compliant DVB-S/S2/S2X satellite modulator supports IF or L-Band outputs and modulation up to 128APSK.

Key Features

• Professional HEVC/H.265 4K contribution encoder

• One 4K channel or up to four 1080p channels

• Ultra-low latency of less than one frame

• Supports 4Kp60, 1080p60, 720p and SD formats

• HEVC/H.265, MPEG-4 AVC/H.264 and MPEG-2 compression

• 4:2:0 and 4:2:2 video compression

• 8-bit and 10-bit video processing

• HEVC Main, Main 10 and Main 4:2:2 10 profiles

• HDR support

• Video bitrates from 100 kbps to 40 Mbps

• SD-SDI and HD-SDI video inputs

• Up to four configurable DVB-ASI inputs and outputs

• Up to six Gigabit Ethernet ports

• MPEG transport stream over IP

• SMPTE 2022-1/-2 support

• ARQ support

• Dynamic and extended GOP processing

• Scene-change, fade and skin-tone detection

• Two compressed audio pairs standard

• Expandable to eight compressed audio pairs

• MPEG-1 Layer II audio encoding

• AC-3 5.1 and SMPTE 302M pass-through

• Optional AAC-LC and HE-AAC audio encoding

• Optional internal transport-stream multiplexer

• Optional BISS Modes 0, 1 and E encryption

• Optional DVB-S/S2/S2X satellite modulator

• Optional IF and L-Band RF outputs

• Modulation support up to 128APSK

• DVB-CID compliant with optional modulator

• Intuitive front-panel and web-browser control

• Dual redundant hot-swappable power supplies

• Software-license-based feature upgrades

• 1 RU rack-mount chassis

• Made in the USA
