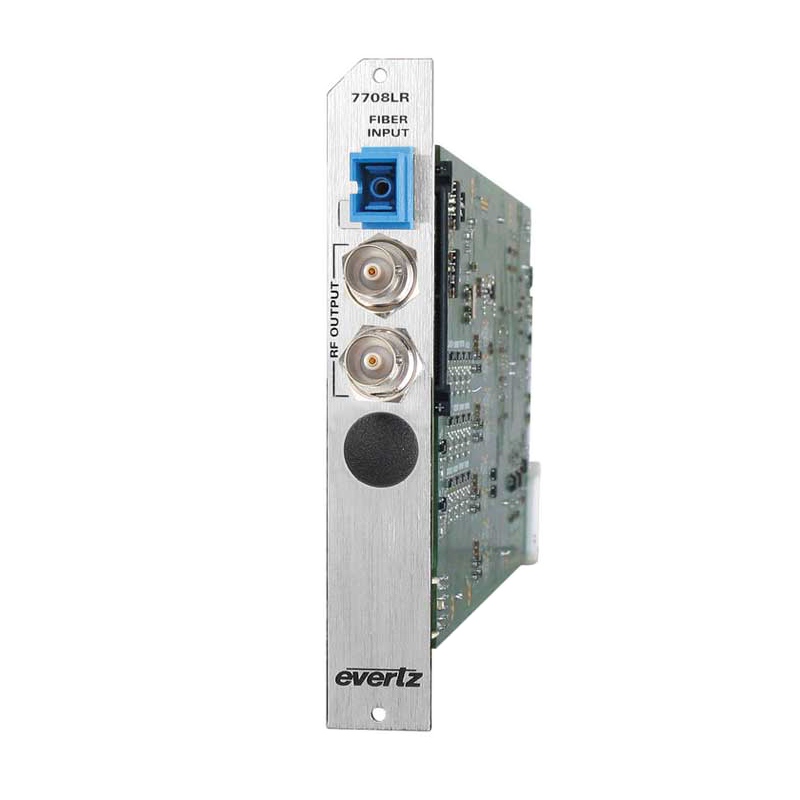

The Evertz 7708LRA and 7708LR-H are wideband RF-over-fiber receivers that convert an optical signal from a compatible transmitter into two buffered coaxial RF outputs. Their protocol-transparent design supports video, audio and data signals regardless of modulation format.

The standard 7708LRA covers 88 MHz–3 GHz, while the high-sensitivity 7708LR-H covers 88 MHz–2.3 GHz and supports long-haul fiber applications. Both models provide manual, automatic and intelligent gain-control modes with adjustment in 0.5 dB steps. Intelligent gain control compensates for fiber loss while tracking the RF input level reported by a SmartMON-compatible transmitter.

SmartMON displays operating parameters received from the companion transmitter, while VistaLINK enables remote monitoring and control through SNMP. The receivers feature two buffered RF outputs, wideband 1270–1610 nm optical input compatibility and support for single-mode or optional multimode fiber.

Specifications:

Product Type: Wideband RF-Over-Fiber Receiver
Manufacturer: Evertz
Product Series: 7700 Series
Models: 7708LRA and 7708LR-H
Optical Inputs: 1
RF Outputs: 2 Buffered Outputs
7708LRA Frequency Range: 88 MHz–3 GHz
7708LR-H Frequency Range: 88 MHz–2.3 GHz
Supported Signals: Video, Audio and Data
Modulation Compatibility: Protocol Transparent
Gain-Control Modes: Manual, Automatic and Intelligent
7708LRA Gain Range: -10 to +31.5 dB
7708LR-H Gain Range: -10 to +28 dB
Gain Adjustment: 0.5 dB Steps
AGC Output Range: Adjustable from -40 to -10 dBm
Output IP3: +28 dBm
IMD: Less Than -55 dBc at -3 dBm Output and 25 dB Gain
Return Loss, 88 MHz–2.3 GHz: Greater Than 15 dB
Return Loss, 2.3–3 GHz: Greater Than 12 dB
RF Connector: 75-Ohm BNC Standard
Optional RF Connectors: 75-Ohm Type F, 50-Ohm BNC or 50-Ohm SMA
Optical Wavelength Range: 1270–1610 nm
Optical Fiber Support: Single-Mode; Multimode Available
Optical Connector Options: SC/UPC, ST/UPC, FC/UPC, SC/APC or FC/APC
7708LRA Maximum Optical Input: +3 dBm
7708LR-H Maximum Optical Input: -7 dBm
7708LRA Optical Sensitivity: -14 dBm at 35 dB S/N on a 36 MHz Carrier
7708LR-H Optical Sensitivity: -20 dBm at 35 dB S/N on a 36 MHz Carrier
Monitoring Technology: SmartMON
Local Monitoring: Four-Digit Card-Edge Display and LED Indicators
Remote Monitoring and Control: SNMP VistaLINK
Hot-Swappable: Yes
Power Requirement: +12 VDC
Power Consumption: 6 W
Module Width: One Card Slot
Compatible Frames: 350FR, 7700FR-C, 7800FR, 7801FR and 7701FR
Standalone Enclosure: S7701FR
EMI/RFI Compliance: FCC Part 15 Class A and EU EMC Directive

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
