DEV 7712 & DEV 7753 ORBIT Single-Fiber VSAT Management System

DEV 7712 & DEV 7753 ORBIT Single-Fiber VSAT Management System

The DEV 7712 and DEV 7753 ORBIT System provides bidirectional L-band, 10 MHz reference and Ethernet transmission between an indoor equipment room and remote satellite antennas over a single optical fiber per antenna.

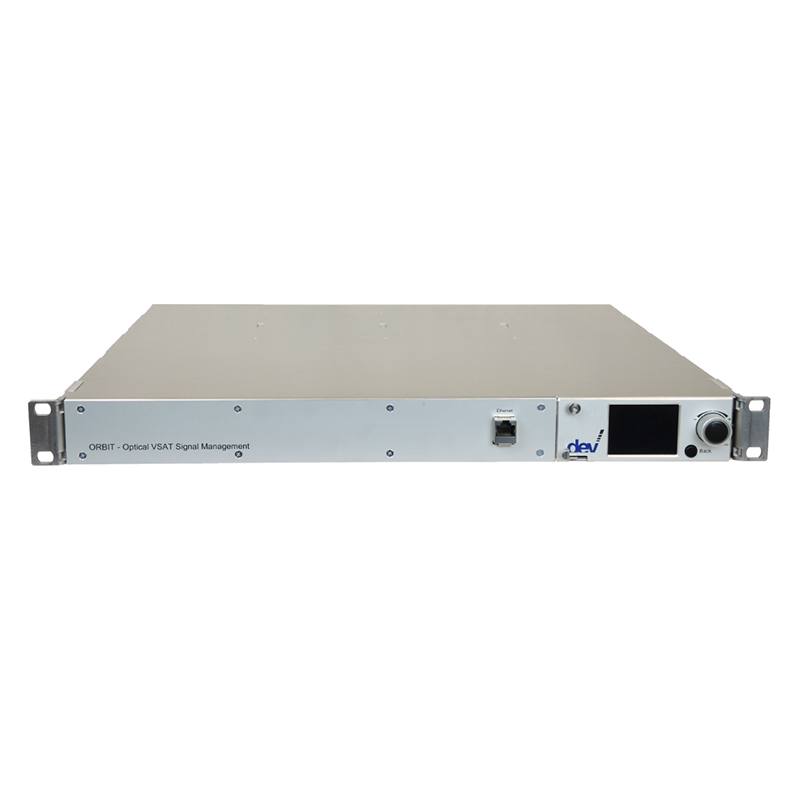

The 19-inch, 1 RU indoor unit accommodates one to three swappable link modules. Each module connects to an IP65 outdoor unit and carries an L-band receive signal, an L-band transmit signal with 10 MHz reference, and two independent Ethernet channels over one fiber. One Ethernet channel handles communication between the ORBIT units, while the second remains available for antenna control or other external equipment.

ORBIT is designed to support dual modems or two independent modems communicating with two tracking antennas. An optional third link can connect a maintenance or backup antenna. Variable gain, variable slope, RF sensing, LNB and BUC power monitoring, SNMP and the DEV Web Interface provide centralized management of the complete system.

Product Type: Managed bidirectional VSAT RF over fiber system
System Components: Indoor unit, swappable link modules and IP65 outdoor units
Indoor Chassis: 19-inch, 1 RU
Indoor Module Capacity: One to three link modules
Maximum Outdoor Units: Three
Optical Connections: One single-mode fiber per outdoor unit
Signals Carried per Fiber: L-band receive, L-band transmit, 10 MHz reference and two Ethernet channels
RF Impedance: 50 Ohm
RF Connectors: SMA and N female, configuration-dependent
Optical Connector: E2000/HRL
Ethernet Interfaces: Two independent channels per optical link
External Ethernet Channel: Available for antenna control or other user equipment
BUC Power: 48 V with current monitoring
LNB Power: Switchable 13/18 VDC with current monitoring
LNB Tone: Switchable 0/22 kHz
RF Adjustment: Variable gain and variable slope
Signal Monitoring: Integrated RF sensing
Outdoor Monitoring: Internal transmit and receive monitoring ports
Outdoor Protection: IP65
Local Management: Graphical indoor user interface
Remote Management: DEV Web Interface and SNMP
Indoor Power Supply: Redundant

System Components

• Indoor Unit: A 1 RU managed chassis with redundant power, controller, graphical interface and up to three swappable optical-link modules

• Outdoor Unit: An IP65 antenna-side unit with BUC power, LNB power, current monitoring and internal RF monitoring ports

• Single-Fiber Link: Carries bidirectional L-band signals, 10 MHz reference and two Ethernet channels

• Optional Third Link: Connects a third antenna for maintenance or backup operation

Key Features

• Bidirectional VSAT signal management over a single fiber

• One fiber connection between each indoor module and outdoor unit

• Supports up to three remote antenna locations

• Simultaneous L-band uplink and downlink transmission

• 10 MHz reference transmission for BUC or LNB equipment

• Two independent Ethernet channels per link

• Suitable for dual-modem and dual-antenna systems

• Optional third antenna for maintenance backup

• 48 V BUC power with current monitoring

• Switchable 13/18 V LNB power

• Switchable 22 kHz LNB tone

• Variable RF gain and slope

• Integrated RF sensing

• Transmit and receive monitoring ports in the outdoor unit

• IP65 outdoor enclosure

• Swappable indoor link modules

• Graphical local user interface

• DEV Web Interface

• SNMP monitoring and control

• Redundant indoor power supplies

• Compact 19-inch, 1 RU indoor chassis
