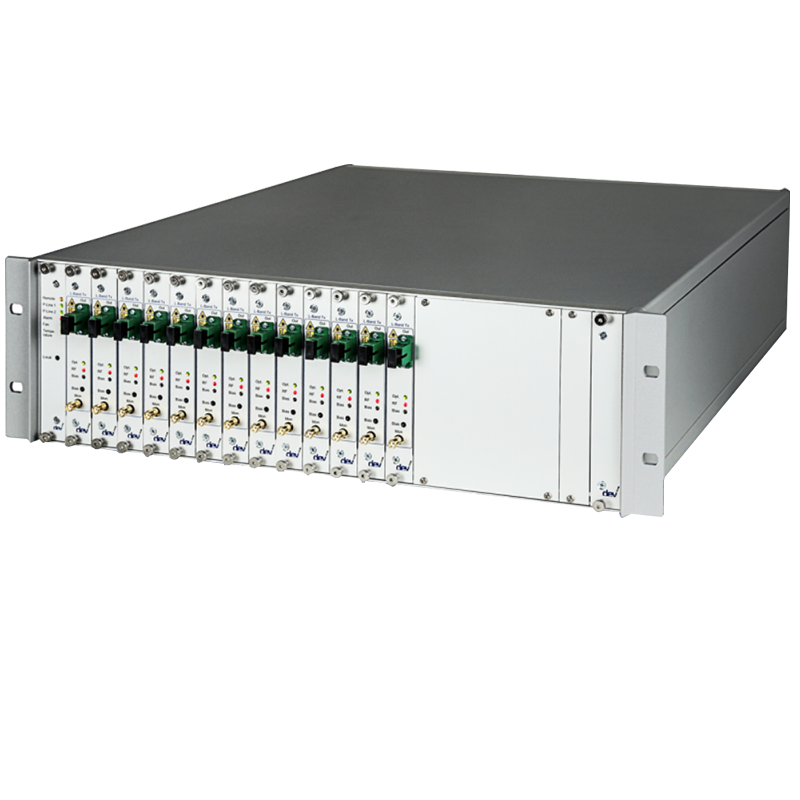

DEV 7113 Intelligent RF over Fiber Indoor Chassis, 20 Slots

DEV 7113 Intelligent RF over Fiber Indoor Chassis, 20 Slots

The DEV 7113 Intelligent RF over Fiber Indoor Chassis is a high-density, modular platform for housing and managing DEV Optribution optical transmitters, receivers and signal-processing modules. Its compact 19-inch, 3 RU chassis provides 20 front-panel slots and supports up to 40 RF over fiber channels when equipped with twin modules.

The DEV 7113 accommodates analog RF over fiber modules, CWDM and DWDM equipment, EDFAs, optical splitters, optical switches and Ethernet media-converter modules. Available 50 Ohm and 75 Ohm cabling options support SMA, F and BNC female RF interfaces.

The integrated controller provides monitoring and control through Ethernet, the DEV Web Interface and SNMP. Configurable 1+1 and N+1 redundancy options, automatic switchback, main/backup swapping and redundancy-path gain compensation help maintain continuous signal availability in mission-critical fiber transmission systems.

Product Type: Intelligent indoor RF over fiber chassis
Module Capacity: 20 front-panel slots
Maximum RF over Fiber Capacity: 40 channels with twin modules
Supported Modules: Optical transmitters, receivers, CWDM, DWDM, EDFA, splitters, switches and Ethernet converters
RF Impedance Options: 50 Ohm or 75 Ohm
RF Connector Options: SMA, F or BNC female
Redundancy Modes: 1+1 and N+1
N+1 Configurations: 4+1, 8+1, 12+1 or 16+1
Standard Network Interface: Ethernet
Standard Network Connector: RJ-45
Optional Optical Network Interface: SFP
Remote Management: DEV Web Interface and SNMP
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 600 VA
Chassis: 19-inch, 3 RU
Dimensions: 483 mm W x 133 mm H x approximately 470 mm D
Additional Connector Depth: Up to 80 mm
Empty Chassis Weight: Approximately 9 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Optical Multiplexing Capacity

• CWDM Configurations: 4, 8 or 9 channels
• DWDM Capacity: Up to 49 channels
• Maximum DWDM Modules per Chassis: 16 optical Tx/Rx modules
• Supported DWDM Multiplexers: Up to three DEV 7658 1:8 DWDM modules
• Optional Optical Management: Ethernet plus SFP interface for CWDM or DWDM integration

Redundancy Capabilities

1+1 Redundancy

• Dedicated backup optical link for each protected main link

• Available for CATV-band and extended L-band systems

• Supports transmitter and receiver redundancy

• Automatic switching based on integrated RF sensing

• Optional automatic switchback after restoration of the main signal

• Optional dynamic main/backup assignment

• Supports up to ten redundancies with single-link modules

• Supports up to 16 redundancies with twin modules

N+1 Redundancy

• One backup optical link can protect 4, 8, 12 or 16 main links

• Available for CATV-band and extended L-band systems

• Supports both transmitter and receiver redundancy

• Redundancy Path Gain Compensation minimizes level changes between main and backup links

• Compatible with single-link or twin RF over fiber modules

• Allows multiple N+1 transmitter and receiver configurations in one chassis

Available Options

• Automatic Switchback: Returns an active redundant receiver path to the restored main link

• Main/Backup Swap: Dynamically reverses main and backup assignments

• DWDM Preparation: Adds redundant cooling for as many as 16 DWDM Tx/Rx modules

• Ethernet plus SFP: Adds an SFP slot for optical remote management

• SFP Ethernet Converter: Uses one optical slot for an application-specific SFP module

• LNB Power Preparation: Supports up to 20 DEV 8121 LNB-power modules

• RF Monitoring: Adds RF monitoring for installed DEV 8121 modules

• 50 Ohm Cabling: Four-channel SMA female cabling for single or twin modules

• 75 Ohm F Cabling: Four-channel F female cabling for single or twin modules

• 75 Ohm BNC Cabling: Four-channel BNC female cabling for single or twin modules

• 1+1 Redundancy Kits: Available for CATV-band and L-band transmitter or receiver links

• N+1 Redundancy Kits: Available in 4+1, 8+1, 12+1 and 16+1 configurations

Key Features

• 20-slot intelligent Optribution chassis

• Up to 40 RF over fiber channels in 3 RU

• High-density, space-saving modular construction

• Supports single-link and twin optical modules

• Compatible with DEV Optribution transmitters and receivers

• Supports CWDM and DWDM architectures

• Accommodates EDFAs, optical splitters and optical switches

• 50 Ohm and 75 Ohm RF interface options

• 1+1 optical-link redundancy

• N+1 redundancy for up to 16 main links

• Automatic switchback and main/backup swapping

• Redundancy Path Gain Compensation

• Integrated signal monitoring and recording

• Configuration backup functionality

• Optional optical Ethernet management

• Optional LNB-power module support

• Redundant power supplies

• DEV Web Interface

• Comprehensive SNMP support
