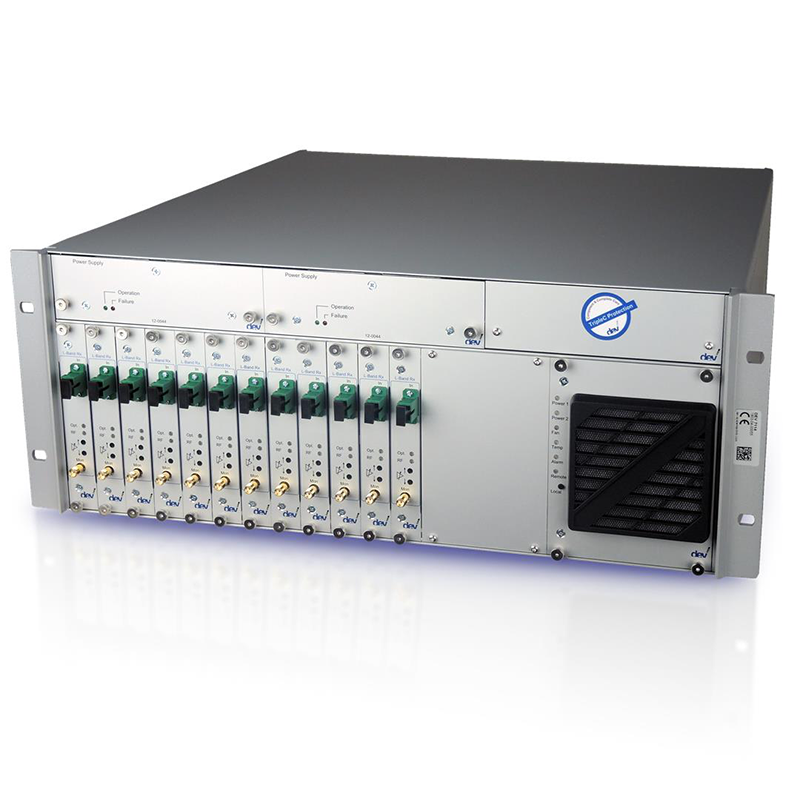

DEV 7114 RF over Fiber Distribution Chassis, 16 Slots

DEV 7114 RF over Fiber Distribution Chassis, 16 Slots

The DEV 7114 Intelligent RF over Fiber Distribution Chassis combines optical signal transmission, RF distribution and redundancy management within a compact 19-inch, 4 RU platform. It provides 16 front-panel slots for DEV Optribution modules and four rear slots for integrated RF distribution hardware.

Distribution configurations from dual 1:4 to 1:128 are available with 50 Ohm SMA or 75 Ohm precision F female interfaces. IRD-controlled switch options support 4x16, 4x32, 4x48 and 4x64 L-band configurations, allowing connected receivers to select the required polarization or frequency band.

The integrated controller provides monitoring and control through Ethernet, the DEV Web Interface and SNMP. Available 1+1 and N+1 receiver redundancy, automatic switchback, main/backup swapping and Redundancy Path Gain Compensation help maintain signal availability in mission-critical RF over fiber systems.

Product Type: Intelligent RF over fiber distribution chassis
Optical Module Capacity: 16 front-panel slots
RF Distribution Capacity: Four rear slots with up to 32 RF ports each
Supported Modules: DEV Optribution optical transmitters and receivers
Distribution Configurations: Dual 1:4 and 1:8 through 1:128
IRD Switch Configurations: 4x16, 4x32, 4x48 or 4x64
RF Interface Options: 50 Ohm SMA or 75 Ohm precision F female
Redundancy Modes: 1+1, 4+1 or 8+1 receiver redundancy
CWDM Configurations: 4, 8 or 9 channels
Standard Network Interface: 100Base-TX Ethernet
Standard Network Connector: RJ-45
Optional Optical Ethernet: 100Base-FX with SC/PC connectors
Remote Management: DEV Web Interface and SNMP
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 250 VA
Chassis: 19-inch, 4 RU
Dimensions: 483 mm W x 178 mm H x approximately 470 mm D
Additional Connector Depth: Up to 80 mm
Empty Chassis Weight: Approximately 10 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

RF Distribution Specifications

Frequency Range: 700-2300 MHz
Available Configurations: Dual 1:4, 1:8, 1:16, 1:32, 1:64 or 1:128
IRD Extension Configurations: 1:8 or 1:16
Impedance Options: 50 Ohm or 75 Ohm
Connector Options: SMA female or precision F female
Return Loss: Greater than 14 dB
Output-to-Output Isolation: Greater than 20 dB; typ. greater than 25 dB

IRD-Controlled Switch Specifications

• Frequency Range: 950-2150 MHz
• Available Configurations: 4x16, 4x32, 4x48 or 4x64
• RF Impedance: 75 Ohm
• RF Connectors: Precision F female
• Return Loss: Minimum greater than 10 dB; typ. greater than 14 dB
• Output-to-Output Isolation: Greater than 25 dB
• Maximum Installations per Chassis: Four 4x16, two 4x32, one 4x48 or one 4x64 switch

Redundancy Capabilities

1+1 Receiver Redundancy

• Provides a dedicated backup optical receiver link for each main link

• Supports up to six redundancies with single-link modules

• Supports up to ten redundancies with twin modules

• Allows automatic switching based on integrated RF sensing

• Optional automatic switchback returns service to the restored main link

• Optional main/backup swap dynamically changes link assignments

• Link gain decreases by approximately 5 dB

N+1 Receiver Redundancy

• Available in 4+1 and 8+1 configurations

• One backup receiver link protects multiple main links

• Redundancy Path Gain Compensation aligns backup and main signal levels

• Supports single-link or twin receiver modules

• Link gain decreases by approximately 2 dB for 4+1 systems

• Link gain decreases by approximately 5 dB for 8+1 systems

Optical Ethernet Options

• 30 km Optical Ethernet: Replaces RJ-45 Ethernet with a 100Base-FX SC/PC interface

• 100 km Optical Ethernet at 1530 nm: Long-distance optical management connection

• 100 km Optical Ethernet at 1550 nm: Long-distance optical management connection

• SFP Ethernet Module: Uses one optical slot and accepts an application-appropriate SFP module

Available Options

• Automatic Switchback/Main-Backup Swap: Selectable redundancy recovery functions

• SFP Ethernet Module: Adds application-specific optical Ethernet connectivity

• Optical Ethernet Interfaces: Available for 30 km or 100 km connections

• IRD-Controlled Switches: 4x16, 4x32, 4x48 or 4x64 configurations

• RF Distribution: Dual 1:4 and 1:8 through 1:128 configurations

• IRD Switch Extensions: Additional 1:8 or 1:16 distribution per selected input

• 1+1 Receiver Redundancy: Dedicated backup link for each protected receiver

• 4+1 Receiver Redundancy: One backup protects four main receiver links

• 8+1 Receiver Redundancy: One backup protects eight main receiver links

• 50 Ohm Interfaces: SMA female

• 75 Ohm Interfaces: Precision F female

Key Features

• Integrates RF over fiber transmission and RF distribution

• 16 slots for DEV Optribution optical modules

• Four rear RF distribution slots

• Up to 128 distributed RF outputs

• IRD-controlled switching up to 4x64

• 700-2300 MHz RF distribution coverage

• 950-2150 MHz IRD-controlled switching

• 50 Ohm and 75 Ohm RF interface options

• CWDM support for 4, 8 or 9 channels

• 1+1 receiver redundancy

• 4+1 and 8+1 receiver redundancy

• Automatic switchback and main/backup swapping

• Redundancy Path Gain Compensation

• Permanent signal monitoring and recording

• Configuration backup functionality

• Standard or optical Ethernet management

• DEV Web Interface

• Comprehensive SNMP support

• Redundant AC power lines and power supplies
