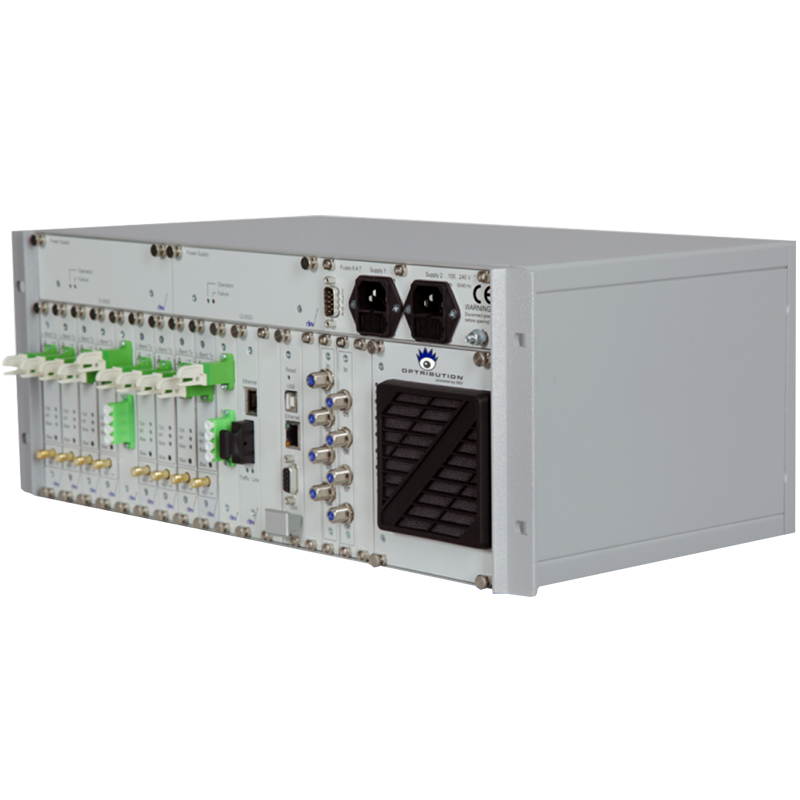

DEV 7134 Smart RF over Fiber Chassis, 12 Slots

DEV 7134 Smart RF over Fiber Chassis, 12 Slots

The DEV 7134 Smart Intelligent Optribution Chassis is a compact 19-inch, 4 RU platform providing 12 front-accessible slots for DEV RF over fiber transmitter and receiver modules. Single-link modules support up to 12 optical channels, while twin modules increase system capacity to 16 channels.

With a chassis depth of approximately 255 mm, the DEV 7134 is designed for shallow racks, wall-mounted installations and locations with restricted equipment space. All modules, controllers and power components are accessible from the front for convenient installation and maintenance.

The integrated controller supports permanent signal monitoring, recording and configuration backup through the DEV Web Interface and SNMP. Available 1+1 and 4+1 redundancy configurations, automatic switchback, main/backup swapping and Redundancy Path Gain Compensation provide enhanced availability for mission-critical optical RF links.

Product Type: Smart intelligent RF over fiber chassis
Module Capacity: 12 front-panel slots
Maximum Single-Link Capacity: 12 optical channels
Maximum Twin-Module Capacity: 16 optical channels
Supported Modules: DEV Optribution optical transmitters and receivers
RF Impedance Options: 50 Ohm or 75 Ohm
RF Connector Options: SMA or precision F female
Redundancy Modes: 1+1 or 4+1
CWDM Configurations: 4, 8 or 9 channels
Standard Network Interface: 100Base-TX Ethernet
Standard Network Connector: RJ-45
Optional Optical Ethernet: 100Base-FX with SC/PC connectors
Remote Management: DEV Web Interface and SNMP
Mounting: 19-inch rack or wall mounting
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 250 VA
Chassis: 19-inch, 4 RU, half-depth
Dimensions: 483 mm W x 178 mm H x approximately 255 mm D
Additional Connector Depth: Up to 80 mm
Empty Chassis Weight: Approximately 8 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Cabling Options

• 50 Ohm SMA: DC-3000 MHz cabling for one module slot

• 75 Ohm F: 10-1006 MHz cabling for one module slot

• 75 Ohm F: DC and 700-2500 MHz cabling for one module slot

1+1 Redundancy

The 1+1 redundancy options provide one dedicated backup optical link for each protected main transmitter or receiver link.

• Frequency Range: DC and 950-2150 MHz
• RF Interfaces: 50 Ohm SMA or 75 Ohm F female
• Maximum Receiver Redundancies: Four with single-link modules or eight with twin modules
• Maximum Transmitter Redundancies: Six with single-link or twin modules
• Return Loss: Greater than 14 dB
• Link-Gain Reduction: Approximately 5 dB

• Available functions include:

Automatic switching based on RF sensing

Automatic return to the restored main receiver link

Dynamic main/backup assignment

Mixed standalone and redundant optical modules

4+1 Redundancy

The 4+1 redundancy option uses one backup optical link to protect four main transmitter or receiver links.

• Number of Main Channels: Four
• Available Frequency Ranges: 47-1006 MHz or DC and 950-2150 MHz
• RF Interfaces: 50 Ohm SMA or 75 Ohm F female
• Return Loss: Greater than 14 dB
• Required Capacity: Five module slots
• Link-Gain Reduction: Approximately 2 dB

Redundancy Path Gain Compensation aligns the level of the backup path with the affected main link during a redundancy switch.

Optical Ethernet Options

• SFP Ethernet Module: Uses one optical slot and accepts an application-appropriate SFP

• 30 km Optical Ethernet: Replaces the RJ-45 interface with 100Base-FX over SC/PC

• 100 km Optical Ethernet at 1530 nm: Long-distance optical management connection

• 100 km Optical Ethernet at 1550 nm: Long-distance optical management connection

Available Options

• Automatic Switchback/Main-Backup Swap: Selectable recovery functions for 1+1 receiver redundancy

• SFP Ethernet Module: Adds configurable optical Ethernet connectivity

• 30 km Optical Ethernet: 100Base-FX management interface

• 100 km Optical Ethernet: Available at 1530 or 1550 nm

• 50 Ohm Cabling: DC-3000 MHz with SMA female connectors

• 75 Ohm CATV Cabling: 10-1006 MHz with F female connectors

• 75 Ohm L-Band Cabling: DC and 700-2500 MHz with F female connectors

• 1+1 Receiver Redundancy: Available for single-link or twin modules

• 1+1 Transmitter Redundancy: Available for single-link or twin modules

• 4+1 Redundancy: Available for CATV-band or extended L-band links

Key Features

• 12 front-accessible RF over fiber module slots

• Up to 16 optical channels with twin modules

• Compact half-depth 4 RU construction

• Suitable for shallow-rack and wall-mounted installations

• All modules and components accessible from the front

• Supports DEV Optribution transmitters and receivers

• 50 Ohm and 75 Ohm RF interface options

• CWDM support for 4, 8 or 9 channels

• 1+1 transmitter and receiver redundancy

• 4+1 optical-link redundancy

• Automatic switchback and main/backup swapping

• Redundancy Path Gain Compensation

• Permanent signal monitoring and recording

• Configuration backup functionality

• Standard or optical Ethernet management

• DEV Web Interface

• Comprehensive SNMP support

• Redundant AC power supplies
