DEV 7151 Outdoor Wall-Mount Chassis for RF over Fiber Modules

DEV 7151 Outdoor Wall-Mount Chassis for RF over Fiber Modules

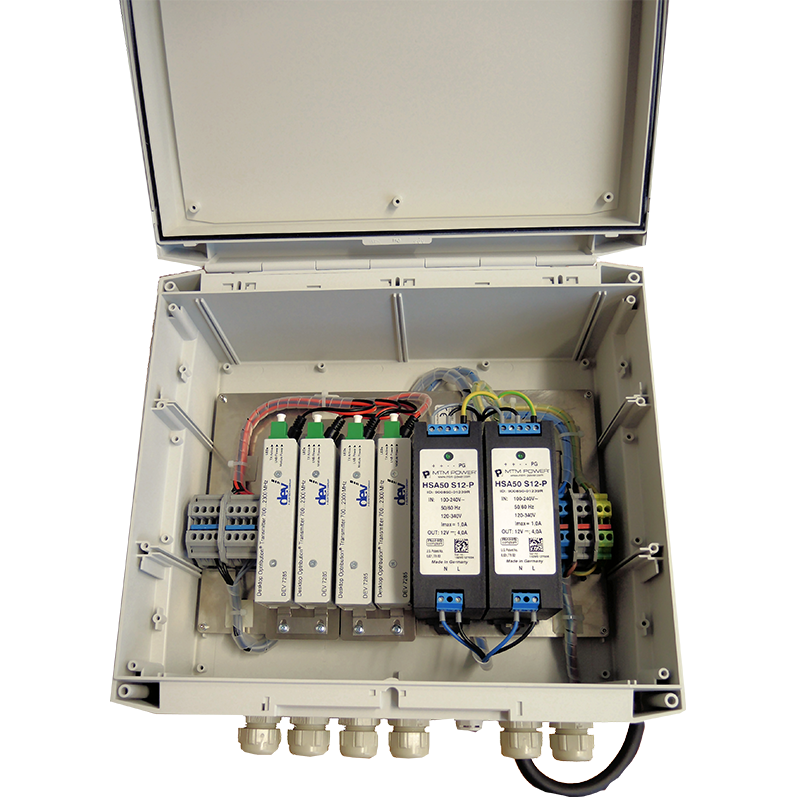

The DEV 7151 Outdoor Wall-Mount Chassis houses and powers up to four DEV desktop Optribution RF over fiber modules. Its compact IP54-rated enclosure is designed for protected outdoor installations near satellite antennas, LNBs and other remote RF equipment.

Installing the optical conversion equipment close to the antenna reduces long coaxial cable runs and the associated frequency-dependent signal loss. The chassis includes DIN-rail mounting brackets, RF and optical cable glands, and a universal AC power supply for plug-and-play installation.

One power supply is included as standard. An optional second power supply provides redundancy for applications requiring increased system availability. When ordered with one to four compatible desktop Optribution modules, the DEV 7151 is supplied preinstalled, completely wired and ready for outdoor use.

Product Type: Outdoor wall-mount RF over fiber chassis
Module Capacity: Up to four desktop Optribution modules
Compatible Modules: DEV 7285, DEV 7287, DEV 7385 and DEV 7387
Standard Power Supplies: One
Optional Power Supplies: Two for redundancy
Input Voltage: 100-240 VAC
Power Consumption: Less than 60 VA with one power supply
Redundant Configuration: Less than 120 VA with two power supplies
Module Mounting: DIN-rail brackets included
Cable Glands: Four RF lines and one optical line
Supported Cable Diameter: 5-10.5 mm
Ingress Protection: IP54
Mounting: Outdoor wall mounting
Operating Temperature: -20°C to +65°C
Dimensions: 324 mm W x 289 mm H x 145 mm D
Empty Chassis Weight: Approximately 5 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E, except temperature and ingress protection

Compatible Optribution Modules

• DEV 7285: Desktop RF over fiber transmitter, 700-2600 MHz

• DEV 7385: Desktop RF over fiber receiver, 700-2600 MHz

• DEV 7287: Desktop CATV-band RF over fiber transmitter, 47-1006 MHz

• DEV 7387: Desktop CATV-band RF over fiber receiver, 47-1006 MHz

Installation Configuration

When purchased with compatible desktop Optribution modules, the DEV 7151 can be delivered:

• With one to four modules installed

• Completely wired at the factory

• Equipped with module DIN-rail brackets

• Configured with the required RF and optical connections

• Ready for protected outdoor installation

Available Option

• Option 16 - Redundant Power Supply: Adds a second power supply for improved system availability

Key Features

• Houses up to four desktop RF over fiber modules

• Compatible with DEV desktop Optribution transmitters and receivers

• Compact outdoor wall-mount enclosure

• IP54 ingress-protection rating

• Operating temperature from -20°C to +65°C

• DIN-rail mounting brackets included

• RF and optical cable glands

• Universal 100-240 VAC input

• Optional redundant power supply

• Factory preinstallation and wiring available

• Plug-and-play deployment

• Supports direct optical conversion near the antenna

• Reduces long coaxial cable runs

• Helps minimize frequency-dependent RF cable loss

• Suitable for protected outdoor and harsh-environment applications

Installation Note: Direct exposure to sunlight should be avoided.
