DEV 7152 Intelligent Outdoor RF over Fiber Chassis, 5 Slots

DEV 7152 Intelligent Outdoor RF over Fiber Chassis, 5 Slots

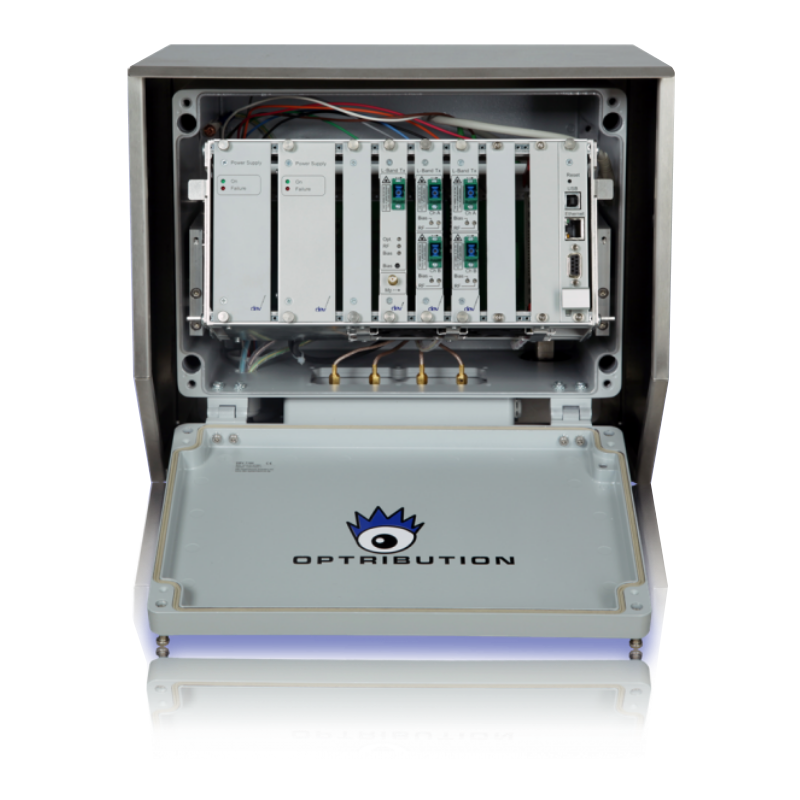

The DEV 7152 Intelligent Outdoor RF over Fiber Chassis is a ruggedized enclosure that accommodates up to five DEV Optribution optical transmitter or receiver modules. Designed for installation near satellite antennas and LNBs, it enables direct RF-to-optical conversion at the antenna site to minimize coaxial cable loss and preserve signal quality.

The chassis supports standalone links, 1+1 redundancy and 4+1 redundancy using single-link or twin modules. Available RF interfaces include 50 Ohm SMA, 50 Ohm N and 75 Ohm F female connectors. An optional pole-mount assembly supports antenna-mast installations, while the enclosure can also be wall-mounted.

An integrated controller provides signal monitoring, recording and configuration backup through Ethernet, the DEV Web Interface and SNMP. Redundant power supplies and Redundancy Path Gain Compensation provide high availability under demanding outdoor operating conditions.

Product Type: Intelligent outdoor RF over fiber chassis
Module Capacity: Five optical modules
Supported Modules: DEV Optribution transmitters and receivers
Supported Module Types: Single-link or twin
Redundancy Modes: 1+1 or 4+1
CWDM Capacity: Up to five channels, depending on configuration
RF Impedance Options: 50 Ohm or 75 Ohm
RF Connector Options: SMA, N or F female
Standard Network Interface: Ethernet
Network Connector: RJ-45
Optional Optical Management: Ethernet plus SFP
Remote Management: DEV Web Interface and SNMP
Mounting: Wall mount or optional pole mount
Standard Operating Temperature: -30°C to +45°C
Optional Operating Temperature: -30°C to +60°C
Power Supply: Redundant 100-240 VAC
Power Consumption: Less than 100 VA
Dimensions: 374 mm W x 382 mm H x 335 mm D
Empty Chassis Weight: Approximately 17 kg

Cabling Options

• 50 Ohm SMA: DC-3000 MHz cabling for single-link or twin modules

• 50 Ohm N: DC-3000 MHz cabling for single-link or twin modules

• 75 Ohm F: 10-1006 MHz cabling for single-link modules

• 75 Ohm F: DC and 700-2500 MHz cabling for single-link or twin modules

1+1 Redundancy

The 1+1 redundancy options provide a dedicated backup optical link for each protected transmitter or receiver path.

• Frequency Range: DC and 950-2150 MHz
• RF Interfaces: 50 Ohm SMA, 50 Ohm N or 75 Ohm F female
• Maximum Single-Link Redundancies: Two
• Maximum Twin-Module Redundancies: Four
• Return Loss: Greater than 14 dB
• Link-Gain Reduction: Approximately 5 dB

Available configurations include:

• Transmitter redundancy

• Receiver redundancy

• Combined transmitter and receiver redundancy

• Automatic switching based on RF sensing

• Automatic switchback for receiver redundancy

• Dynamic main/backup assignment

• Mixed redundant and standalone optical modules

4+1 Redundancy

The 4+1 redundancy option uses one backup optical link to protect four main links.

• Number of Main Channels: Four
• Frequency Range: DC and 950-2150 MHz
• RF Interfaces: 50 Ohm SMA, 50 Ohm N or 75 Ohm F female
• Return Loss: Greater than 14 dB
• Link-Gain Reduction: Approximately 2 dB for main links
• Chassis Capacity: One 4+1 redundancy system

Redundancy Path Gain Compensation aligns the backup-path signal level with the affected main link when switching occurs.

Optical Ethernet Options

• Ethernet plus SFP: Retains standard Ethernet and adds an SFP slot to the CPU

• SFP Ethernet Module: Uses one optical slot and accepts an application-appropriate SFP

• Supports optical management connections and integration with compatible CWDM or DWDM links

Mounting Options

• Standard Mounting: Wall mounting using four bolts
• Optional Pole Mount: Antenna-mast installation
• Supported Pole Diameter: 168-254 mm

Available Options

• Automatic Switchback/Main-Backup Swap: Recovery functions for 1+1 receiver redundancy

• Ethernet plus SFP: Adds optical-network connectivity to the controller

• SFP Ethernet Module: Converts Ethernet management to an optical connection

• Pole-Mount Assembly: Supports installation on antenna masts

• Extended Temperature Range: Expands operation to -30°C through +60°C

• 50 Ohm Cabling: SMA or N female connectors

• 75 Ohm Cabling: F female connectors

• 1+1 Transmitter Redundancy: Available with single-link or twin modules

• 1+1 Receiver Redundancy: Available with single-link or twin modules

• 4+1 Redundancy: One backup link protects four main links

Key Features

• Ruggedized outdoor RF over fiber chassis

• Five slots for Optribution optical modules

• Supports single-link and twin modules

• Installation close to the antenna or LNB

• Reduces long coaxial cable runs and associated RF loss

• 50 Ohm and 75 Ohm RF interfaces

• SMA, N and F female connector options

• 1+1 transmitter and receiver redundancy

• 4+1 optical-link redundancy

• Redundancy Path Gain Compensation

• Automatic switchback and main/backup swapping

• CWDM-capable configurations

• Wall-mountable enclosure

• Optional antenna-mast mounting

• Optional -30°C to +60°C temperature range

• Permanent signal monitoring and recording

• Configuration backup functionality

• Ethernet and optional optical Ethernet management

• DEV Web Interface

• Comprehensive SNMP support

• Redundant power supplies
