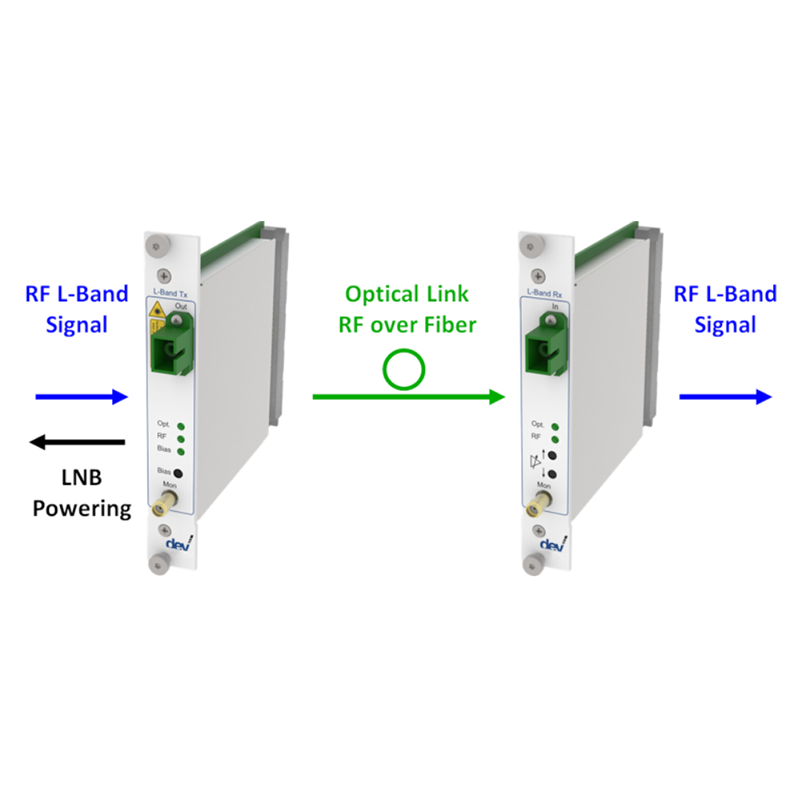

The DEV 7232 and DEV 7332 Advanced L-Band RF over Fiber Link provide high-linearity analog transmission of extended L-band signals over single-mode fiber. Operating from 850 to 2450 MHz, the link is designed for direct signal conversion at large satellite antennas, RF distribution in uplink stations and other applications requiring high input-signal handling.

The DEV 7232 transmitter incorporates a limiter function and integrated LNB power with current monitoring. The DEV 7332 receiver provides 0-5 dB adjustable gain for balancing RF output levels across different optical paths. The latest datasheet specifies an optical budget of up to 20 dB under stated operating conditions.

Both hot-swappable modules provide RF sensing, front-panel status LEDs, local push-button controls and dedicated SMA monitoring ports. Standard 1550 nm and optional 1310 nm transmitter wavelengths are available, along with SC/APC, FC/APC and E2000/HRL optical connectors.

Product Type: Advanced analog L-band RF over fiber link
Transmitter: DEV 7232 Advanced Optribution Transmitter
Receiver: DEV 7332 Advanced Optribution Receiver
Frequency Range: 850-2450 MHz
Maximum Link Gain: 5 ±2 dB
Receiver Gain Adjustment: 0-5 dB in 1 dB steps
Gain Accuracy: ±0.5 dB
Full-Band Flatness: ±1.0 dB
36 MHz Flatness: ±0.15 dB
Return Loss: Greater than 14 dB; typ. 16 dB
Gain Stability: ±2 dB from 0°C to +50°C
Group Delay Distortion: Less than 2 ns within any 36 MHz
Nominal RF Input Level: -20 dBm aggregate
RF Input Dynamic Range: -70 to +10 dBm aggregate
RF Input Damage Level: +15 dBm aggregate
Noise Figure: Less than 31 dB
Spurious-Free Dynamic Range: 108 dB/Hz⅔
Output IP3: Greater than +21 dBm at 0 dB receiver gain
Output P1dB: Greater than +7 dBm at 0 dB receiver gain
Optical Budget: Up to 20 dB under specified conditions
Fiber Type: Single-mode 9/125 µm
Standard Optical Connector: SC/APC
Optional Optical Connectors: FC/APC or E2000/HRL
Module Dimensions: 20 mm W x 133 mm H x 100 mm D
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

DEV 7232 Transmitter Specifications

• Frequency Range: 850-2450 MHz
• Special Function: RF input limiter
• Laser Type: DFB
• Laser Classification: Class 1M
• Optical Output Power: 5.4 dBm
• Standard Wavelength: 1550 nm ±10 nm
• Optional Wavelength: 1310 nm ±10 nm
• Power Requirement: 12 VDC, 200 mA without LNB power
• Weight: Approximately 0.5 kg

DEV 7332 Receiver Specifications

• Frequency Range: 850-2450 MHz
• Gain Adjustment: 0-5 dB in 1 dB steps
• Optical Wavelength Range: 1100-1650 nm
• Optical Input Sensitivity: Less than -15 dBm
• Optical Input Damage Level: +10 dBm
• Power Requirement: 12 VDC, 250 mA
• Weight: Approximately 0.3 kg

LNB Power and Current Monitoring

• LNB Power Capacity: Up to 350 mA
• Voltage Selection: 13 or 18 VDC
• Tone Selection: 0 or 22 kHz
• Current Monitoring: Integrated into the DEV 7232 transmitter
• Alarm Indication: Front-panel LED and remote communication
• Local Control: Front-panel push buttons

RF Sensing and Monitor Ports

• RF Sensing: Integrated into transmitter and receiver modules
• Threshold Range: Adjustable from -50 to 0 dBm
• Threshold Accuracy: ±3 dB
• Threshold Repeatability: Less than 0.1 dB
• Alarm Indication: Front-panel LED and remote communication
• Monitor-Port Impedance: 50 Ohm
• Monitor-Port Connector: SMA female
• Monitor-Port Return Loss: Typ. greater than 18 dB
• Transmitter Monitor Level: Input level minus 26 dB ±2 dB
• Receiver Monitor Level: Output level minus 26 dB ±2 dB

Available Options

• 1310 nm Wavelength: Alternative DEV 7232 transmitter wavelength

• 1550 nm Wavelength: Standard DEV 7232 transmitter wavelength

• FC/APC Connector: Alternative optical interface

• E2000/HRL Connector: Alternative optical interface

• SC/APC Connector: Standard optical interface

• Chassis and Cabling Options: Available for compatible indoor and outdoor DEV Optribution chassis

Key Features

• Advanced analog L-band RF over fiber transmission

• Extended 850-2450 MHz frequency coverage

• Optical budget up to 20 dB under specified conditions

• High RF input-signal handling

• Wide -70 to +10 dBm aggregate input range

• High receiver output linearity

• DEV 7232 transmitter limiter function

• Adjustable DEV 7332 receiver gain

• Integrated LNB power and current monitoring

• Switchable 13/18 VDC and 0/22 kHz tone

• Integrated RF sensing at both ends

• Front-panel alarm and status LEDs

• Local gain and LNB-power controls

• Dedicated RF monitoring ports

• 1310 or 1550 nm transmitter wavelengths

• SC/APC, FC/APC and E2000/HRL optical connectors

• Receiver compatible with supported optical LNBs

• Hot-swappable Optribution modules

• Compatible with indoor and outdoor Optribution chassis
