DEV 7233 & DEV 7333 Optribution Top L-Band RF over Fiber Link

DEV 7233 & DEV 7333 Optribution Top L-Band RF over Fiber Link

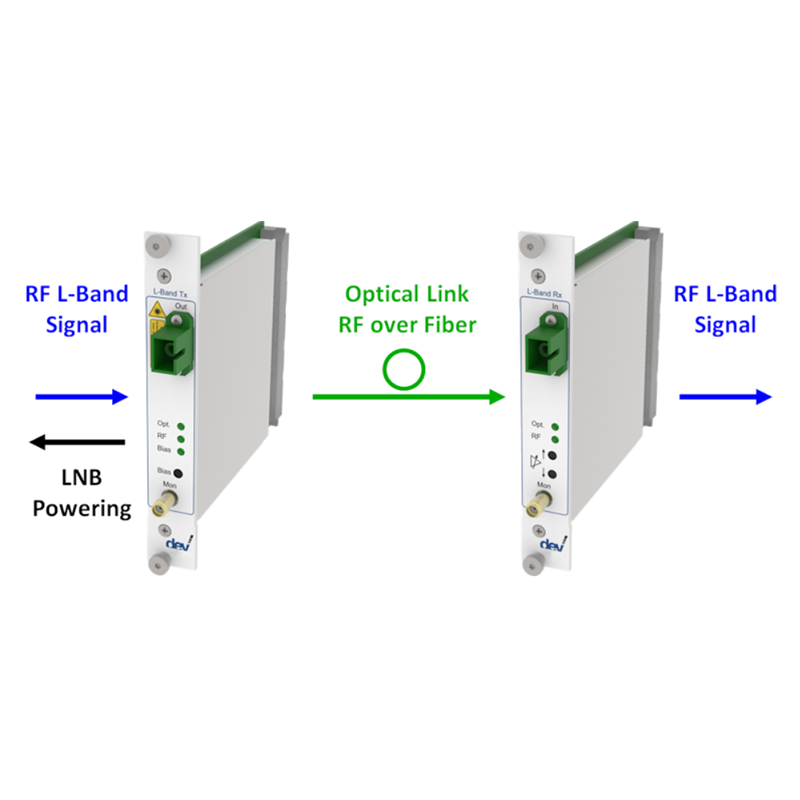

The DEV 7233 and DEV 7333 Optribution Top L-Band RF over Fiber Link provide high-performance analog transmission of extended L-band signals over long-distance single-mode fiber. The link operates from 850 to 2450 MHz and supports a recommended optical budget of up to 20 dB, making it suitable for teleports, satellite ground stations, remote antenna sites and CWDM fiber networks.

The DEV 7233 transmitter features adjustable gain and continuous optical modulation index optimization, enabling reliable handling of aggregate RF input levels from -70 to +10 dBm. Integrated LNB power supplies switchable 13/18 VDC and 0/22 kHz control with current monitoring.

The DEV 7333 receiver provides adjustable gain and slope compensation with high output linearity. Both hot-swappable modules include RF sensing, front-panel status LEDs, local push-button controls and SMA monitoring ports. Multiple optical connector and CWDM wavelength options support application-specific fiber infrastructure.

Product Type: Extended L-band analog RF over fiber link
Transmitter: DEV 7233
Receiver: DEV 7333
Frequency Range: 850-2450 MHz
Maximum Link Gain: 35 ±2 dB
Transmitter Gain Adjustment: -20 to +20 dB in 1 dB steps
Receiver Gain Adjustment: 0-15 dB in 1 dB steps
Receiver Slope Adjustment: 0-4 dB in 1 dB steps
Full-Band Flatness: ±1.0 dB
36 MHz Flatness: ±0.15 dB
Return Loss: Greater than 14 dB; typ. 16 dB
Gain Stability: ±2 dB from 0°C to +50°C
Group Delay: Less than 2 ns within any 36 MHz
Nominal RF Input Level: -20 dBm aggregate
RF Input Dynamic Range: -70 to +10 dBm aggregate
Automatic OMI Optimization Range: -20 to +10 dBm aggregate
RF Input Damage Level: +15 dBm aggregate
Noise Figure: Less than 16 dB with 18 dB transmitter gain
Spurious-Free Dynamic Range: 108 dB/Hz⅔
Carrier-to-Noise Ratio: 50 dB
Output IP3: Greater than 21 dBm at 0 dB receiver gain
Output P1dB: Greater than 7 dBm at 0 dB receiver gain
Recommended Optical Budget: Up to 20 dB
Fiber Type: Single-mode 9/125 µm
Standard Optical Connector: SC/APC
Optional Optical Connectors: FC/APC or E2000/HRL
Module Dimensions: 20 mm W x 133 mm H x 100 mm D
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

DEV 7233 Transmitter Specifications

• Laser Type: DFB
• Laser Classification: Class 1M
• Optical Output Power: 5.4 dBm
• Standard Wavelength: 1550 nm ±10 nm
• Available Optical Wavelengths: 16 CWDM wavelengths
• Power Requirement: 12 VDC, 200 mA without LNB power
• Weight: Approximately 0.5 kg

DEV 7333 Receiver Specifications

• Optical Wavelength Range: 1100-1650 nm
• Optical Input Sensitivity: Greater than -15 dBm minimum input level
• Optical Input Damage Level: +10 dBm
• Power Requirement: 12 VDC, 250 mA
• Weight: Approximately 0.3 kg

LNB Power and Monitoring

• LNB Power Capacity: Up to 350 mA
• Voltage Selection: 13 or 18 VDC
• Tone Selection: 0 or 22 kHz
• Current Monitoring: Integrated
• Alarm Indication: Front-panel LED and remote communication
• Local Control: Front-panel push buttons

RF Sensing and Monitor Ports

• RF Sensing Range: Adjustable from -50 to 0 dBm
• Threshold Accuracy: ±3 dB
• Threshold Repeatability: Less than 0.1 dB
• Alarm Indication: Front-panel LED and remote communication
• Monitor-Port Impedance: 50 Ohm
• Monitor-Port Connector: SMA female
• Monitor-Port Return Loss: Typ. greater than 18 dB
• Transmitter Monitor Level: Input level minus 26 dB ±2 dB
• Receiver Monitor Level: Output level minus 26 dB ±2 dB

Available Options

• CWDM Wavelengths: Sixteen wavelength selections from 1270 to 1610 nm

• Standard 1550 nm Wavelength: Available for conventional single-wavelength links

• FC/APC Connector: Alternative optical interface

• E2000/HRL Connector: Alternative optical interface

• SC/APC Connector: Standard optical interface

Key Features

• Extended L-band transmission from 850 to 2450 MHz

• Recommended optical budget up to 20 dB

• Suitable for long-distance RF signal transport

• Adjustable transmitter and receiver gain

• Receiver slope compensation

• Continuous optical modulation index optimization

• Wide RF input dynamic range

• High receiver output linearity

• Integrated LNB power and current monitoring

• Switchable 13/18 VDC and 0/22 kHz tone

• RF sensing at both ends of the link

• Front-panel status LEDs and push-button controls

• Dedicated RF monitoring ports

• Sixteen CWDM wavelength options

• SC/APC, FC/APC and E2000/HRL optical connectors

• Supports multi-signal transmission over a single dark fiber

• Receiver compatible with supported optical LNBs

• Hot-swappable Optribution modules

• Compatible with indoor and outdoor Optribution chassis
