DEV 7261 & DEV 7361 Advanced RF over Fiber Link, 50-2000 MHz

DEV 7261 & DEV 7361 Advanced RF over Fiber Link, 50-2000 MHz

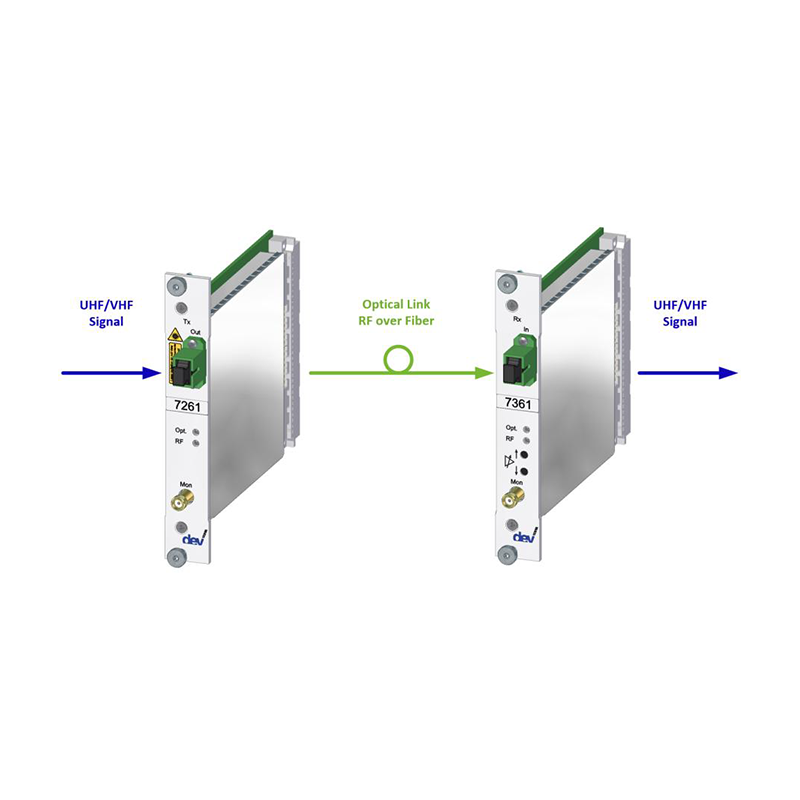

The DEV 7261 transmitter and DEV 7361 receiver form an advanced analog RF over fiber link for transporting signals from 50 to 2000 MHz. The system is suitable for satellite, broadcast, CATV, VHF/UHF and other applications requiring wideband RF transmission over single-mode fiber.

The link provides high linearity, RF sensing at both ends and monitoring ports for convenient signal verification. The DEV 7361 receiver offers adjustable gain and slope, allowing technicians to balance output levels and compensate for frequency-dependent variations between signal paths.

Standard modules use a 1550 nm DFB transmitter and SC/APC connectors. Nine wavelength choices support CWDM applications, while FC/APC and E2000/HRL optical connectors are optionally available. The hot-swappable modules fit DEV indoor and outdoor Optribution chassis.

Product Type: Modular analog RF over fiber link
Transmitter: DEV 7261
Receiver: DEV 7361
Frequency Range: 50-2000 MHz
Maximum Link Gain: 15 ±3 dB
Receiver Gain Adjustment: 0-15 dB in 1 dB steps
Receiver Slope Adjustment: 0-4 dB in 1 dB steps
Full-Band Flatness: ±1.5 dB
8 MHz Flatness: ±0.2 dB
Return Loss: Minimum 14 dB; typ. 16 dB
Group-Delay Distortion: Less than 2 ns within an 8 MHz window
Nominal RF Input Level: -10 dBm aggregate power
RF Input Dynamic Range: -60 to 0 dBm aggregate power
RF Input Damage Level: +15 dBm
Noise Figure: Less than 32 dB
Spurious-Free Dynamic Range: 108 dB·Hz⅔
Output IP3: Greater than 21 dBm at 0 dB receiver gain
Output P1dB: Greater than 7 dBm at 0 dB receiver gain
Fiber Type: Single-mode 9/125 µm
Standard Optical Connector: SC/APC
Optional Optical Connectors: FC/APC or E2000/HRL
Transmitter Laser Type: DFB
Standard Transmitter Wavelength: 1550 nm ±10 nm
Transmitter Optical Output: 5.4 dBm
Receiver Wavelength Range: 1100-1650 nm
Receiver Optical Sensitivity: -15 dBm
Optical Input Damage Level: +10 dBm
RF-Sensing Threshold: Adjustable from -50 to 0 dBm
Threshold Repeatability: Less than 0.1 dB
Alarm Indication: Front-panel LED and remote communication
Module Power Requirement: 12 VDC, 200 mA each
Transmitter Weight: Typ. 0.5 kg
Receiver Weight: Typ. 0.3 kg
Module Dimensions: 20 mm W x 133 mm H x 100 mm D
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Models

• DEV 7261: Analog RF over fiber transmitter covering 50-2000 MHz

• DEV 7361: Analog RF over fiber receiver with adjustable gain and slope covering 50-2000 MHz

Wavelength Options

• 1310 nm

• 1470 nm

• 1490 nm

• 1510 nm

• 1530 nm

• 1550 nm — standard

• 1570 nm

• 1590 nm

• 1610 nm

Available Options

• FC/APC Optical Connector

• E2000/HRL Optical Connector

• CWDM Wavelength Selection

Key Features

• Extended 50-2000 MHz frequency coverage

• Adjustable receiver gain from 0 to 15 dB

• Adjustable receiver slope from 0 to 4 dB

• High-linearity analog optical transmission

• RF sensing at the transmitter and receiver

• Adjustable RF-sensing thresholds

• Front-panel status indication

• RF monitoring ports on both modules

• Nine transmitter wavelength choices

• CWDM-compatible configurations

• Single-mode fiber operation

• SC/APC, FC/APC and E2000/HRL connectors

• Compact hot-swappable transmitter and receiver modules

• Compatible with DEV indoor and outdoor Optribution chassis
