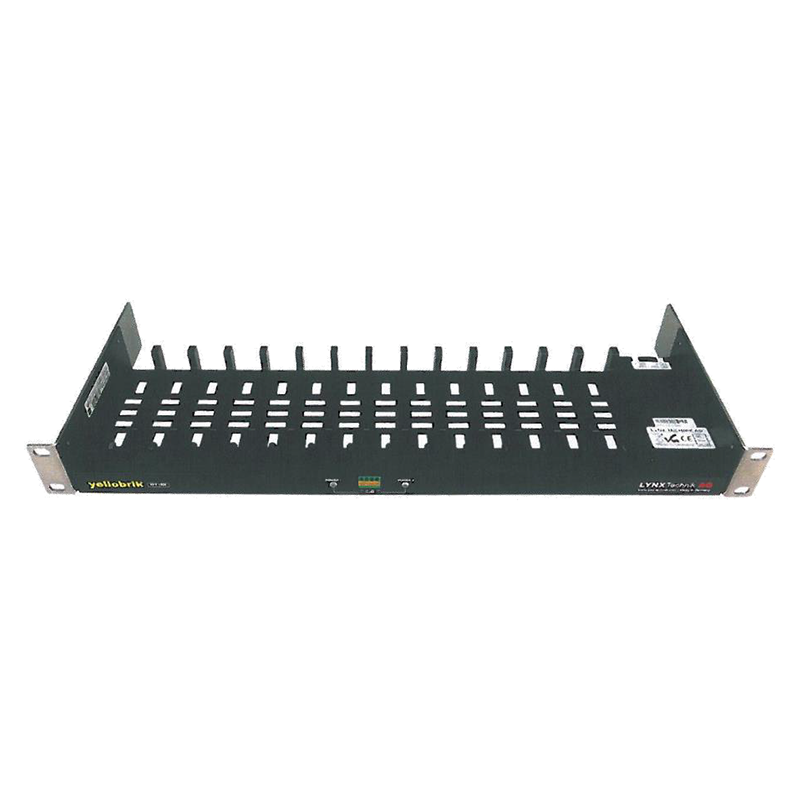

DEV 7154 Desktop Optribution Module Rack, 14 Slots in 1 RU

DEV 7154 Desktop Optribution Module Rack, 14 Slots in 1 RU

The DEV 7154 Desktop Optribution Module Rack installs up to 14 DEV Desktop Optribution modules in a standard 19-inch equipment rack while using only 1 RU of space. It provides an organized, high-density mounting and power solution for standalone RF over fiber transmitter and receiver modules.

Each module is secured with the supplied mechanical mounting brackets and connected to an integrated central 12 VDC power bus. A dedicated cable-routing opening allows front-panel connections to pass through to the rear of the equipment rack.

Front-panel LEDs indicate power status, while alarm outputs report primary or redundant power failure. An optional redundant external power supply improves availability in critical RF over fiber installations.

Product Type: Rackmount chassis for Desktop Optribution modules
Module Capacity: Up to 14 modules
Module Compatibility: DEV Desktop Optribution modules
Module Retention: Mechanical mounting brackets
Power Distribution: Integrated central power bus
Power Connections: One connector for each module slot
Primary Power Input: 100-240 VAC
Power-Bus Output: 12 VDC, up to 10 A
Power Indication: Front-panel LEDs
Power-Failure Alarms: GPO outputs for primary and redundant supplies
Cable Management: Front-to-rear cable-routing opening
Chassis: 19-inch, 1 RU
Depth: 145 mm
Empty Weight: Typ. 1.62 kg, excluding power supply
Power Redundancy: Optional

Available Option

• Redundant Power Supply: Adds a secondary supply and power-failure alarm reporting for improved system availability

Key Features

• Holds up to 14 Desktop Optribution modules

• Uses only 1 RU of rack space

• Fits standard 19-inch equipment racks

• Compatible with DEV Desktop Optribution transmitters and receivers

• Integrated central 12 VDC power bus

• Individual power connector for every slot

• Secure mechanical module-retention brackets

• Dedicated front-to-rear cable-routing space

• Front-panel power-status LEDs

• Primary and redundant power-failure alarm outputs

• Optional redundant power supply

• Compact 145 mm chassis depth
