DEV 751x Optribution Optical Splitter Modules, 1:2 to 1:16

DEV 751x Optribution Optical Splitter Modules, 1:2 to 1:16

The DEV 751x Optribution Optical Splitter Series distributes one optical input signal to 2, 4, 8 or 16 outputs for RF over fiber networks. These passive splitter modules are suitable for optical signal distribution, monitoring and optical-path redundancy in satellite, broadcast and telecommunications systems.

Operating across a broad 1260-1610 nm wavelength range, the DEV 751x Series supports standard optical transmission and CWDM applications. The hot-swappable modules fit compatible indoor and outdoor DEV Optribution chassis.

SC/APC connectors are standard, with FC/APC and E2000/HRL interfaces available as options. Four configurations allow system designers to select the required output count, insertion loss and chassis-slot width.

Product Type: Passive optical splitter modules
Series: DEV 751x
Available Split Ratios: 1:2, 1:4, 1:8 and 1:16
Number of Optical Inputs: One
Wavelength Range: 1260-1610 nm
Standard Optical Connector: SC/APC
Optional Optical Connectors: FC/APC or E2000/HRL
Module Height: 3 RU
Chassis Compatibility: DEV indoor and outdoor Optribution chassis
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Models

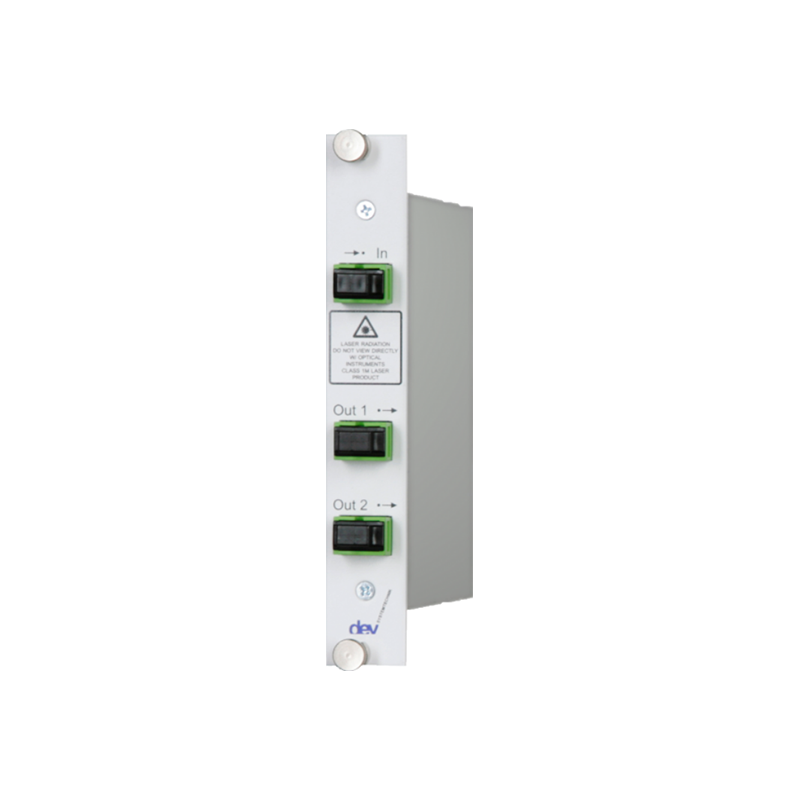

DEV 7512 1:2 Optical Splitter

• Optical Inputs: One
• Optical Outputs: Two
• Optical Insertion Loss: Less than 4.5 dB
• Module Width: 20 mm, 4 HP
• Module Height: 133 mm, 3 RU
• Weight: Typ. 0.3 kg

DEV 7514 1:4 Optical Splitter

• Optical Inputs: One
• Optical Outputs: Four
• Optical Insertion Loss: Less than 8.0 dB
• Module Width: 30 mm, 6 HP
• Module Height: 133 mm, 3 RU
• Weight: Typ. 0.4 kg

DEV 7518 1:8 Optical Splitter

• Optical Inputs: One
• Optical Outputs: Eight
• Optical Insertion Loss: Less than 11.0 dB
• Module Width: 30 mm, 6 HP
• Module Height: 133 mm, 3 RU
• Weight: Typ. 0.5 kg

DEV 7516 1:16 Optical Splitter

• Optical Inputs: One
• Optical Outputs: Sixteen
• Optical Insertion Loss: Less than 14.5 dB
• Module Width: 40 mm, 8 HP
• Module Height: 133 mm, 3 RU
• Weight: Typ. 0.6 kg

Optical Connector Options

• SC/APC: Standard optical connector

• FC/APC: Optional connector under Option 07

• E2000/HRL: Optional connector under Option 08

Key Features

• Passive optical signal distribution

• 1:2, 1:4, 1:8 and 1:16 configurations

• Broad 1260-1610 nm wavelength coverage

• Suitable for RF over fiber signal distribution

• Supports optical-path redundancy architectures

• Compatible with standard and CWDM optical signals

• SC/APC connectors supplied as standard

• Optional FC/APC and E2000/HRL connectors

• Compact modular construction

• Hot-swappable Optribution modules

• Compatible with indoor and outdoor DEV chassis

• No active optical conversion required

• Multiple module widths optimized for each split ratio
