DEV 7234 & DEV 7334 Wideband RF over Fiber Link, 50 MHz-6 GHz

DEV 7234 & DEV 7334 Wideband RF over Fiber Link, 50 MHz-6 GHz

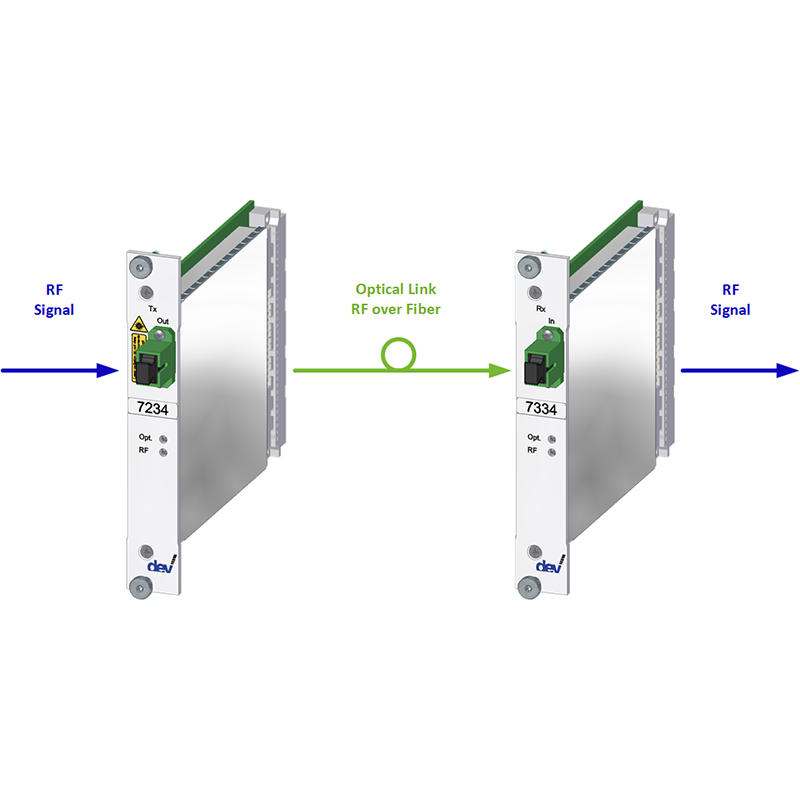

The DEV 7234 transmitter and DEV 7334 receiver form a high-performance analog RF over fiber link covering the exceptionally wide frequency range of 50 MHz to 6 GHz. The system is designed for telecommunications, satellite ground stations, radio telescopes, distributed antenna systems, broadcasting, GPS and timing applications.

The DEV 7234 provides software-adjustable transmitter gain from -15 to +10 dB, allowing the link to accommodate RF input levels across a wide dynamic range. Integrated RF sensing provides continuous signal-status monitoring with front-panel and remote alarm indication.

The standard link operates at 1310 nm over single-mode fiber and supports an optical budget of 15 dB at the nominal RF input level. An optional 1550 nm transmitter and FC/APC optical connectors are available for application-specific requirements.

Product Type: Modular wideband analog RF over fiber link
Transmitter: DEV 7234
Receiver: DEV 7334
Frequency Range: 50-6000 MHz
Nominal Link Gain: 4 ±2 dB
Transmitter Gain Adjustment: -15 to +10 dB in 0.5 dB steps
Full-Band Flatness: ±2.0 dB
Return Loss: Minimum 6 dB; typ. 10 dB
Gain Stability: ±2 dB from 0°C to +50°C
Group Delay: Less than 2 ns
Nominal RF Input Level: -15 dBm aggregate power
RF Input Dynamic Range: -70 to 0 dBm aggregate power
RF Input Damage Level: +15 dBm
Noise Figure: Less than 14 dB at +10 dB transmitter gain
Spurious-Free Dynamic Range: 108 dB·Hz⅔
Output IP3: Greater than 18 dBm at 3 GHz
Output P1dB: Greater than 5 dBm at 3 GHz
Optical Budget: 15 dB at nominal RF input level
RF Impedance: 50 Ohm
RF Connectors: SMA female
Fiber Type: Single-mode 9/125 µm
Standard Optical Connector: SC/APC
Optional Optical Connector: FC/APC
Transmitter Laser Type: DFB
Standard Transmitter Wavelength: 1310 nm
Optional Transmitter Wavelength: 1550 nm
Transmitter Optical Output: 5.4 dBm
Receiver Wavelength Range: 1100-1650 nm
Receiver Optical Sensitivity: -15 dBm
Optical Input Damage Level: +10 dBm
RF-Sensing Threshold: Adjustable from -50 to 0 dBm
Threshold Accuracy: ±3 dB
Threshold Repeatability: Less than 0.1 dB
Alarm Indication: Front-panel LED and remote communication
Transmitter Power Requirement: 12 VDC, 200 mA
Receiver Power Requirement: 12 VDC, 250 mA
Module Dimensions: 40 mm W x 133 mm H x 100 mm D
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Models

• DEV 7234: Wideband optical transmitter covering 50-6000 MHz with adjustable gain

• DEV 7334: Wideband optical receiver covering 50-6000 MHz

Available Options

• 1550 nm Transmitter: Replaces the standard 1310 nm transmitter wavelength

• FC/APC Optical Connector: Replaces the standard SC/APC connector

Key Features

• Extremely wide 50 MHz to 6 GHz frequency coverage

• Suitable for satellite, telecommunications and broadcast systems

• Supports radio-telescope, GPS and timing applications

• Adjustable transmitter gain from -15 to +10 dB

• Fine 0.5 dB gain-adjustment steps

• Wide -70 to 0 dBm RF input dynamic range

• Low noise figure at maximum transmitter gain

• High RF linearity

• 15 dB optical budget

• Integrated RF sensing

• Adjustable signal-detection threshold

• Front-panel and remote alarm indication

• Standard 1310 nm DFB transmitter

• Optional 1550 nm wavelength

• Single-mode fiber transmission

• SC/APC and FC/APC connector choices

• Compact Optribution transmitter and receiver modules

• Wide -20°C to +70°C operating range
