DEV 7186 Alpha Outdoor RF over Fiber Chassis, up to 8 Channels

DEV 7186 Alpha Outdoor RF over Fiber Chassis, up to 8 Channels

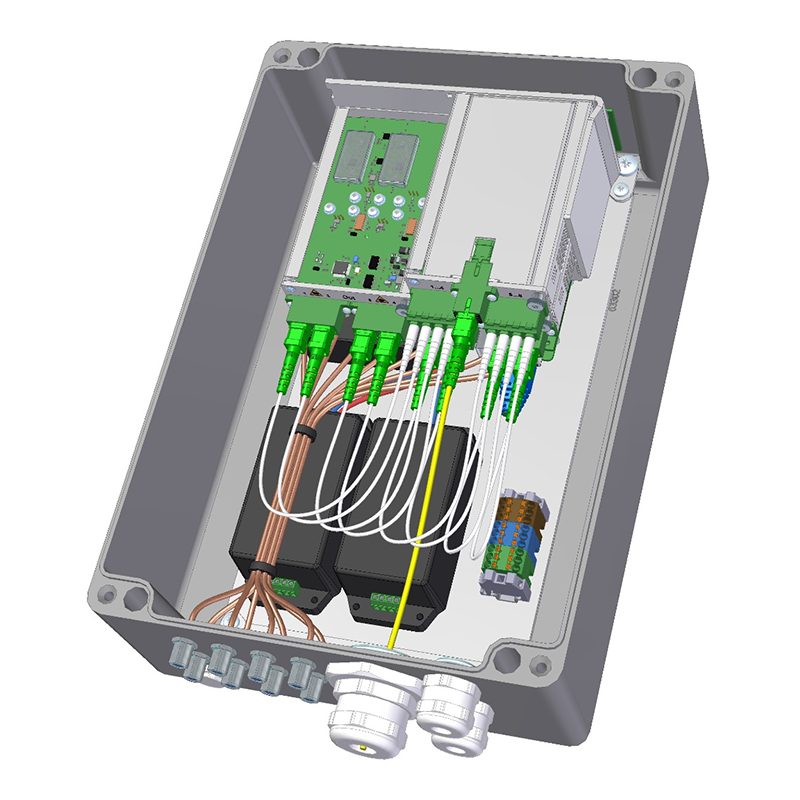

The DEV 7186 Optribution Alpha Outdoor Chassis is a compact, IP65-rated aluminum enclosure for deploying up to eight RF over fiber channels in harsh outdoor environments. It accommodates two Alpha optical transmitter or receiver modules, each supporting as many as four channels.

The configurable chassis supports standard and high-power L-band optical links, 10 MHz reference transmission, CWDM and 1+1 redundancy applications. RF interfaces are available with 50 Ohm SMA or 75 Ohm precision F female connectors. A separate position accepts a CWDM de-/multiplexer without using either optical-module slot.

Variable gain, RF sensing, optional LNB powering, signal recording, SNMP and the DEV Web Interface provide comprehensive monitoring and control. The DEV 7186 is interoperable with other DEV Optribution and Alpha RF over fiber products.

Product Type: Outdoor modular RF over fiber chassis
Maximum Capacity: Eight optical channels
Optical Module Slots: Two
Channels per Optical Module: Up to four
CWDM Module Position: One dedicated slot
Standard Link Frequency Range: 850-2450 MHz
Optional Reference Frequency: 10 MHz
RF Impedance: 50 Ohm or 75 Ohm
50 Ohm Connectors: SMA female
75 Ohm Connectors: Precision F female
Optical Connectors: SC/APC
Standard Link Gain: 0 ±3 dB
Standard Gain Adjustment: -15 to +13 dB in 0.5 dB steps
Full-Band Flatness: ±1.5 dB
36 MHz Flatness: ±0.2 dB
Standard Transmission Distance: Less than 3 km
CWDM Transmission Distance: Less than 15 km
Standard Optical Budget: 1 dB
CWDM Optical Budget: 5 dB
RF Sensing: Adjustable threshold with remote monitoring
LNB Power: Up to 450 mA per channel; configuration-dependent
LNB Voltage: Individually selectable 13 or 18 VDC
LNB Tone: Individually selectable 0 or 22 kHz
Remote Interface: Ethernet
Remote Management: DEV Web Interface and SNMP
Supply Voltage: 100-240 VAC
Power Consumption: Less than 60 VA
Enclosure Material: Aluminum
Ingress Protection: IP65
Dimensions: 330 mm W x 230 mm H x 110 mm D, excluding external connectors
Empty Weight: Typ. 4.7 kg
Operating Temperature: -30°C to +60°C
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E, except temperature and ingress protection

Available Module Configurations

• Four-Channel L-Band Transmitter: 850-2450 MHz

• Four-Channel High-Power Transmitter: 850-2450 MHz

• Three-Channel L-Band plus 10 MHz Transmitter: Three L-band channels and one reference channel

• Four-Channel L-Band Receiver: 850-2450 MHz

• Four-Channel High-Power Receiver: 850-2450 MHz

• Three-Channel L-Band plus 10 MHz Receiver: Three L-band channels and one reference channel

• Single-Channel Modules: Available for L-band or 10 MHz applications

• CWDM Transmitters: Four-channel modules with selectable CWDM wavelength groups

Available Options

• 50 Ohm RF Ports: Single- or four-channel SMA female interfaces

• 75 Ohm RF Ports: Single- or four-channel precision F female interfaces

• Transmit Redundancy: 1+1 RF splitter modules for 50 or 75 Ohm systems

• Receive Redundancy: 1+1 RF switching modules for 50 or 75 Ohm systems

• 1:4 CWDM De-/Multiplexer: Supports four CWDM channels

• 1:8 CWDM De-/Multiplexer: Supports eight CWDM channels

• Optical Ethernet Interface: Replaces the standard electrical Ethernet connection

• Signal Recording: Adds historical signal-level recording through the web interface

• Pole-Mount Assembly: Supports installation on an antenna mast or other pole

• Power-Supply Redundancy: Available for enhanced system reliability

Key Features

• Up to eight RF over fiber channels

• Two optical transmitter or receiver module slots

• Dedicated CWDM de-/multiplexer position

• Rugged aluminum outdoor enclosure

• IP65 environmental protection

• Wide -30°C to +60°C operating range

• Standard and high-power optical modules

• 850-2450 MHz L-band transmission

• Optional 10 MHz reference-signal transport

• Four- and eight-channel CWDM configurations

• 1+1 transmit and receive redundancy options

• Adjustable RF gain

• Integrated RF sensing

• Switchable 13/18 V LNB power

• Switchable 0/22 kHz tone

• 50 Ohm and 75 Ohm interfaces

• Optional optical Ethernet

• Optional pole mounting

• DEV Web Interface and SNMP support

• Interoperable with the DEV Optribution Series
