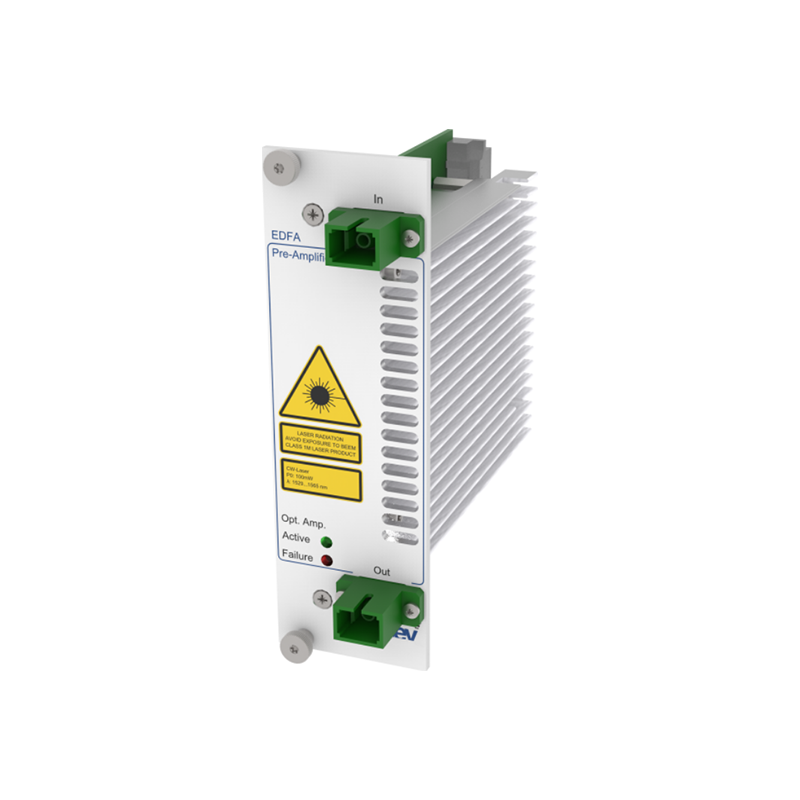

The DEV 7415 and DEV 7425 EDFA Optribution Amplifier Modules extend DWDM RF over fiber transmission over long optical paths. The DEV 7415 operates as a low-noise optical preamplifier, while the higher-output DEV 7425 functions as a booster amplifier.

Both modules cover 1529-1565 nm and use automatic output power control with 1 dB adjustment steps. The DEV 7415 delivers up to 25 dB gain with adjustable output from 0 to +10 dBm. The DEV 7425 provides up to 23 dB gain and adjustable output as high as 20 dBm.

These hot-swappable modules install in the DEV 7113 Intelligent Optribution Chassis configured with mandatory Option 34. Through the chassis controller, users can monitor optical input and output levels, review alarms and manage the system through the DEV Web Interface or SNMP.

Product Type: EDFA optical amplifier modules
Available Models: DEV 7415 preamplifier and DEV 7425 booster amplifier
Application: Long-distance DWDM RF over fiber transmission
Optical Inputs: One
Optical Outputs: One
Wavelength Range: 1529-1565 nm
Fiber Type: Single-mode 9/125 µm
Operating Mode: Automatic Output Power Control
Output Adjustment Resolution: 1 dB
Standard Optical Connector: SC/APC
Optional Optical Connectors: FC/APC or E2000/HRL
Laser Classification: Class 1M
Required Chassis: DEV 7113 with Option 34
Module Dimensions: 40 mm W x 133 mm H x 100 mm D
Module Width: 8 HP
Module Height: 3 RU
Weight: Typ. 0.35 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

DEV 7415 EDFA Preamplifier

The DEV 7415 is optimized for low optical input levels. Its high gain and low noise figure make it suitable for placement before an optical receiver to compensate for long-fiber and DWDM component losses.

• Amplifier Type: Optical preamplifier
• Input Power Range: -25 to -5 dBm
• Maximum Gain: 25 dB; typ. 27 dB averaged
• Adjustable Output Power: 0-10 dBm
• Output Adjustment: 1 dB steps
• Saturated Output Power: +10 ±2 dBm at input levels of -15 dBm or higher
• Return Loss: Greater than 35 dB
• Noise Figure: Less than 5.5 dB; typ. 4.7 dB

DEV 7425 EDFA Booster Amplifier

The DEV 7425 is designed to increase optical launch power before a long fiber span or passive DWDM network.

• Amplifier Type: Optical booster amplifier
• Input Power Range: -3 to +10 dBm
• Maximum Gain: 23 dB
• Adjustable Output Power: 0-20 dBm
• Output Adjustment: 1 dB steps
• Saturated Output Power: +20 ±2 dBm
• Return Loss: Greater than 45 dB
• Noise Figure: Less than 5.5 dB; typ. 5 dB

Optical Connector Options

• SC/APC: Standard optical connector

• FC/APC: Optional connector under Option 07

• E2000/HRL: Optional connector under Option 08

Chassis and Management Requirements

• Installation requires a DEV 7113 chassis with Option 34

• Option 34 prepares the chassis with redundant fan modules for EDFA and DWDM operation

• Optical input and output power levels can be monitored through the chassis controller

• Front-panel LEDs provide immediate status and alarm indication

• DEV Web Interface, SNMP, signal recording and data backup are provided through the managed chassis

Key Features

• EDFA preamplifier and booster-amplifier models

• Optimized for DWDM RF over fiber networks

• Broad 1529-1565 nm operating range

• High optical gain

• Low noise figure

• Automatic output power control

• Output-power adjustment in 1 dB steps

• Up to 10 dBm output from the DEV 7415

• Up to 20 dBm output from the DEV 7425

• Optical input and output level monitoring

• Front-panel status and alarm LEDs

• SC/APC connector supplied as standard

• Optional FC/APC and E2000/HRL connectors

• Hot-swappable modular construction

• DEV Web Interface and SNMP management through DEV 7113

• Signal recording and configuration backup through the chassis

• Suitable for very-long-distance optical RF transmission
