DEV 7187 Alpha Outdoor RF over Fiber Chassis, up to 16 Channels

DEV 7187 Alpha Outdoor RF over Fiber Chassis, up to 16 Channels

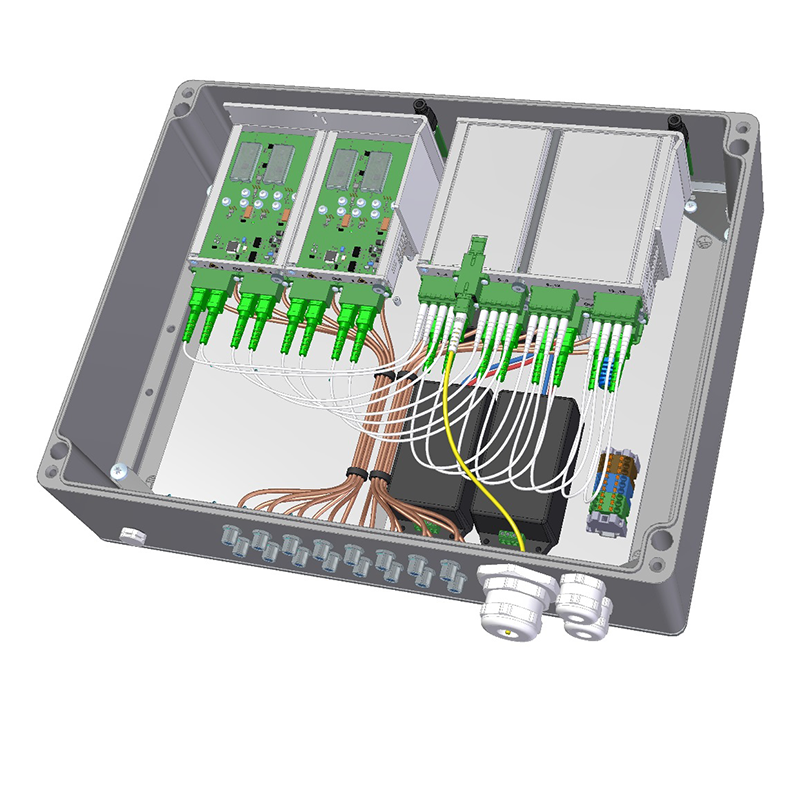

The DEV 7187 Optribution Alpha Outdoor Chassis is a rugged IP65-rated aluminum enclosure supporting up to 16 RF over fiber channels. Four module positions accommodate Alpha optical transmitters and receivers, each providing as many as four optical channels.

The configurable outdoor chassis supports standard and high-power L-band links, 10 MHz reference transmission, CWDM and 1+1 redundancy. RF interfaces are available with 50 Ohm SMA or 75 Ohm precision F female connectors. A separate module position accommodates a CWDM de-/multiplexer without occupying the transmitter or receiver slots.

Variable gain, RF sensing, LNB power, redundant AC power supplies, signal recording, SNMP and the DEV Web Interface provide reliable operation and centralized management. The DEV 7187 is interoperable with other DEV Alpha and Optribution RF over fiber products.

Product Type: Outdoor modular RF over fiber chassis
Maximum Capacity: 16 optical channels
Optical Module Slots: Four
Channels per Optical Module: Up to four
CWDM Module Position: Dedicated slot
Standard Link Frequency Range: 850-2450 MHz
Optional Reference Frequency: 10 MHz
RF Impedance: 50 Ohm or 75 Ohm
50 Ohm Connectors: SMA female
75 Ohm Connectors: Precision F female
Optical Connectors: SC/APC
Standard Link Gain: 0 ±3 dB
Standard Gain Adjustment: -15 to +13 dB in 0.5 dB steps
Full-Band Flatness: ±1.5 dB
36 MHz Flatness: ±0.2 dB
Standard Transmission Distance: Less than 3 km
CWDM Transmission Distance: Less than 15 km
Standard Optical Budget: 1 dB
CWDM Optical Budget: 5 dB
RF Sensing: Adjustable threshold with remote monitoring
LNB Power: Up to 450 mA per channel, configuration-dependent
LNB Voltage: Individually selectable 13 or 18 VDC
LNB Tone: Individually selectable 0 or 22 kHz
Remote Interface: Ethernet
Remote Management: DEV Web Interface and SNMP
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 60 VA
Enclosure Material: Aluminum
Ingress Protection: IP65
Dimensions: 400 mm W x 310 mm H x 110 mm D, excluding external connectors
Empty Weight: Typ. 9.1 kg
Operating Temperature: -30°C to +60°C
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E, except temperature and ingress protection

Available Module Configurations

• Four-Channel L-Band Transmitter: 850-2450 MHz

• Four-Channel High-Power Transmitter: 850-2450 MHz

• Three-Channel L-Band plus 10 MHz Transmitter: Three L-band channels and one reference

   channel

• Four-Channel L-Band Receiver: 850-2450 MHz

• Four-Channel High-Power Receiver: 850-2450 MHz

• Three-Channel L-Band plus 10 MHz Receiver: Three L-band channels and one reference

   channel

• Single-Channel Modules: Available for L-band or 10 MHz applications

• CWDM Transmitters: Four-channel modules covering selectable CWDM wavelength groups

Available Options

• 50 Ohm RF Ports: Single- or four-channel SMA female interfaces

• 75 Ohm RF Ports: Single- or four-channel precision F female interfaces

• Transmit Redundancy: 1+1 RF splitter modules for 50 or 75 Ohm systems

• Receive Redundancy: 1+1 RF switching modules for 50 or 75 Ohm systems

• 1:4 CWDM De-/Multiplexer: Supports four wavelengths

• 1:8 CWDM De-/Multiplexer: Supports eight wavelengths

• 1:16 CWDM De-/Multiplexer: Supports all 16 wavelengths and is exclusive to the DEV 7187

• Optical Ethernet Interface: Replaces the standard electrical Ethernet interface

• Signal Recording: Enables visualization and external storage of transmitter and receiver data

• Pole-Mount Assembly: Supports poles measuring 168-254 mm in diameter

Key Features

• Up to 16 RF over fiber channels

• Four optical transmitter or receiver module slots

• Dedicated CWDM de-/multiplexer position

• Exclusive 16-channel CWDM capability

• Rugged aluminum outdoor enclosure

• IP65 environmental protection

• Wide -30°C to +60°C operating range

• Standard and high-power optical modules

• 850-2450 MHz L-band transmission

• Optional 10 MHz reference-signal transport

• 1+1 transmit and receive redundancy options

• Adjustable RF gain

• Integrated RF sensing

• Switchable 13/18 V LNB power

• Switchable 0/22 kHz tone

• 50 Ohm and 75 Ohm interfaces

• Optional optical Ethernet

• Optional signal recording

• Optional pole mounting

• DEV Web Interface and SNMP support

• Redundant AC power supplies

• Interoperable with the DEV Optribution Series
