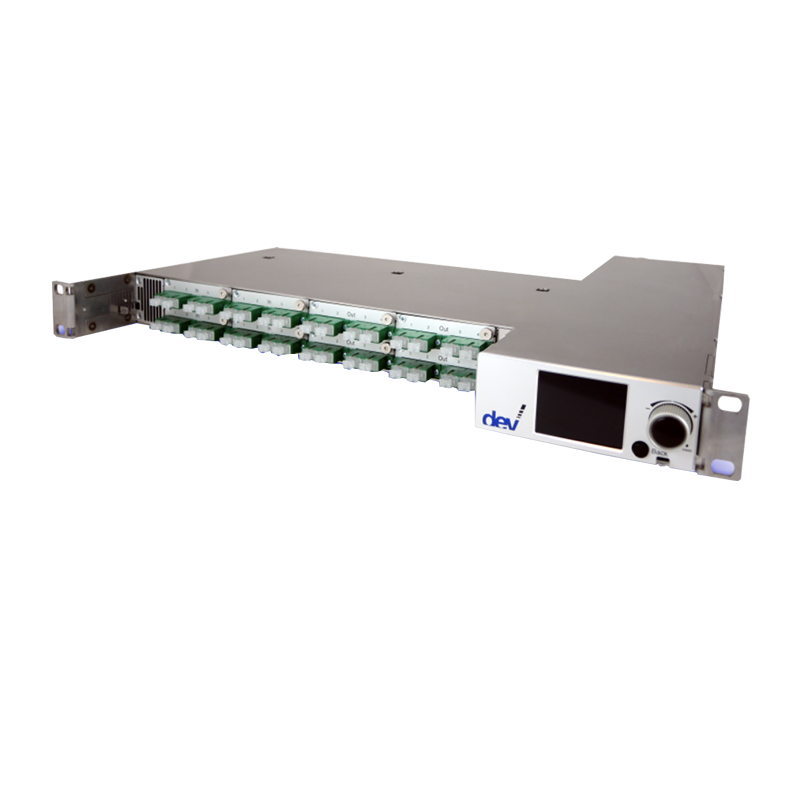

DEV 7181 Optribution Alpha RF over Fiber Chassis, 32 Channels

DEV 7181 Optribution Alpha RF over Fiber Chassis, 32 Channels

The DEV 7181 Optribution Alpha Indoor Chassis provides up to 32 RF over fiber channels within a compact 19-inch, 1 RU platform. Eight front-panel module slots accept four-channel optical transmitters and receivers, high-power modules, 10 MHz reference modules and CWDM equipment.

Operating from 850 to 2450 MHz, standard optical links provide adjustable gain and support transmission distances up to 3 km. CWDM configurations support 4, 8 or 16 wavelengths and distances up to 15 km. Available 1+1 transmitter and receiver redundancy options increase availability for critical optical RF paths.

A full-color local interface, redundant power supplies, Ethernet, SNMP and the DEV Web Interface provide comprehensive management. The DEV 7181 is interoperable with other DEV Optribution RF over fiber products.

Product Type: High-density managed RF over fiber chassis
Optical Module Capacity: Eight front-panel slots
Maximum Optical Capacity: 32 channels
Channels per Standard Module: Four
Primary Frequency Range: 850-2450 MHz
Reference-Signal Option: 10 MHz
RF Impedance Options: 50 Ohm or 75 Ohm
RF Connector Options: SMA or F female
Optical Connectors: SC/APC
Local Interface: 2.2-inch full-color display, control knob and push buttons
Network Interface: Ethernet
Network Connector: RJ-45
Remote Management: DEV Web Interface and SNMP
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 200 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x 470 mm D
Weight: Typ. 4.7 kg without modules
Operating Temperature: -30°C to +60°C
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E, except temperature

Key Features

• Up to 32 RF over fiber channels in 1 RU

• Eight optical module slots

• Four optical channels per standard module

• Standard and high-power optical links

• 850-2450 MHz extended L-band coverage

• 10 MHz reference-signal transport

• CWDM configurations with 4, 8 or 16 channels

• CWDM transmission distance up to 15 km

• Adjustable link gain

• Integrated RF sensing

• Per-channel LNB power

• 1+1 transmitter and receiver redundancy

• 50 Ohm and 75 Ohm RF interfaces

• Full-color local user interface

• Signal recording option

• Standard or optical Ethernet management

• DEV Web Interface and SNMP

• Redundant AC power supplies

• Interoperable with DEV Optribution systems
