The DEV 728x and DEV 738x Desktop Optribution Series provides compact, standalone analog RF over fiber transmission for satellite, broadcast and CATV applications. The plug-and-play modules combine fixed gain, high linearity and simple installation for most intra-facility and interfacility optical links.

The DEV 7285 transmitter and DEV 7385 receiver cover 700-2600 MHz, including the complete L-band range. They are recommended for links with optical losses up to 5 dB, while the datasheet specifies an optical budget up to 6 dB under stated conditions. The DEV 7285 also provides switchable LNB power.

The DEV 7287 and DEV 7387 cover 47-1006 MHz for CATV, VHF, UHF and wireless-audio signal transport. Both link families include RF monitoring, optical-status LEDs, overtemperature protection and universal external power supplies.

Product Type: Standalone analog RF over fiber links
Series: DEV 728x transmitters and DEV 738x receivers
Available Frequency Ranges: 47-1006 MHz or 700-2600 MHz
RF Impedance: 75 Ohm
RF Connectors: Precision F female
Fiber Type: Single-mode 9/125 µm
Standard Optical Connector: LC/APC
Optional Optical Connector: LC/PC
Transmitter Wavelength: 1310 nm
Receiver Wavelength Range: 1260-1620 nm
Transmitter Power Requirement: 12 VDC, 250 mA
Receiver Power Requirement: 12 VDC, 300 mA
External Power Input: 100-240 VAC
Typical Power-Supply Consumption: Less than 20 VA
Operating Temperature: -20°C to +65°C
Dimensions: 138 mm L x 42 mm W x 23 mm H
Weight: Typ. 0.1 kg per module
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E, except temperature

Available Models

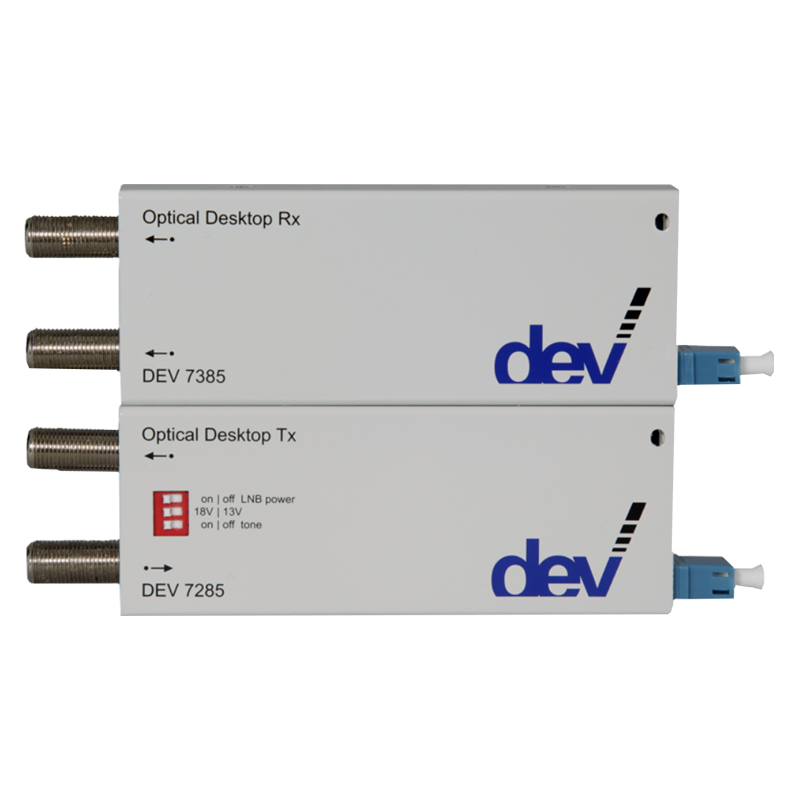

• DEV 7285: Desktop RF over fiber transmitter, 700-2600 MHz

• DEV 7385: Desktop RF over fiber receiver, 700-2600 MHz

• DEV 7287: Desktop CATV-band RF over fiber transmitter, 47-1006 MHz

• DEV 7387: Desktop CATV-band RF over fiber receiver, 47-1006 MHz

Key Features

• Standalone RF over fiber transmitters and receivers

• 700-2600 MHz extended L-band models

• 47-1006 MHz CATV-band models

• Fixed-gain analog optical transmission

• High RF linearity

• Recommended for typical intra-facility and interfacility links

• Integrated LNB power on the DEV 7285

• Switchable 13/18 VDC and 0/22 kHz tone

• RF monitoring ports

• Optical-status LEDs

• Single-mode fiber operation

• LC/APC and LC/PC connector options

• Universal external AC power supplies

• Plug-and-play installation

• Compact desktop construction

• Wide -20°C to +65°C operating range

• Integrated overtemperature protection

• Outdoor enclosure and DIN-rail mounting options
