DEV 7286, 7387 & 6087 RF over Fiber System for Wireless Audio

DEV 7286, 7387 & 6087 RF over Fiber System for Wireless Audio

The DEV 7286, DEV 7387 and DEV 6087 desktop RF over fiber system extends wireless microphone, in-ear monitor and other professional wireless-audio signals over single-mode fiber. Designed for plug-and-play operation, the standalone system supports optical transmission distances up to 1 km and provides high linearity across the 450-960 MHz link frequency range.

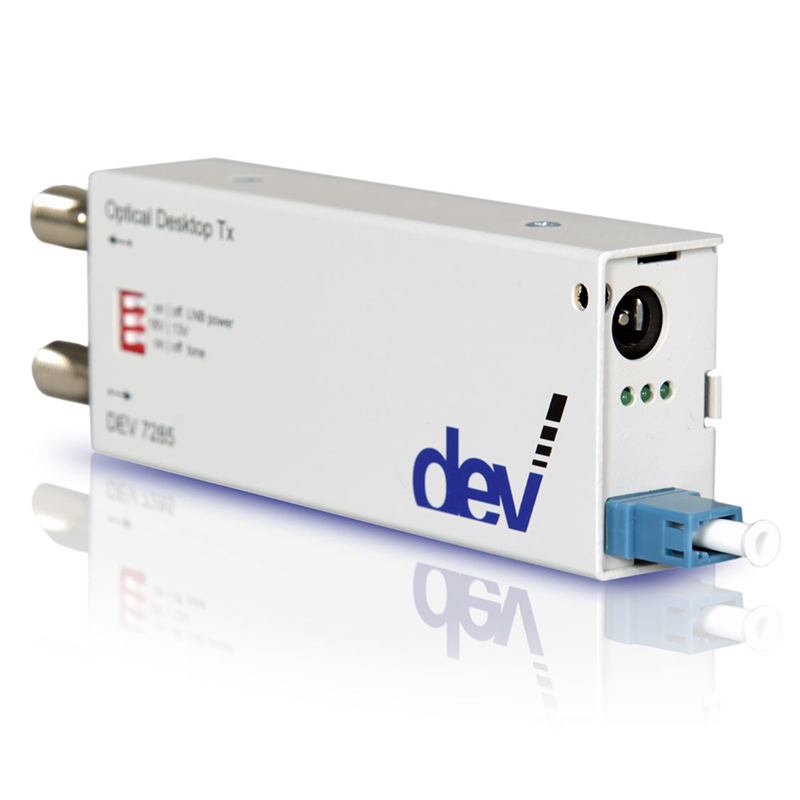

The DEV 7286 CWDM transmitter converts RF signals to optical signals, while the DEV 7387 receiver restores them at the remote location. The DEV 6087 desktop amplifier provides 33 dB of gain for applications requiring additional RF output level. A high-input-level transmitter option accommodates aggregate input power up to +17 dBm.

Nine CWDM wavelengths allow multiple wireless-audio signals to share fiber infrastructure. Available 50 Ohm and 75 Ohm RF interfaces, LC/APC or LC/PC optical connectors, RF monitoring ports and overtemperature protection provide flexible deployment in broadcast, live-event, production and installed-audio systems.

Product Type: Desktop RF over fiber system for wireless audio
Optical Transmitter: DEV 7286
Optical Receiver: DEV 7387
Desktop RF Amplifier: DEV 6087
System Link Frequency Range: 450-960 MHz
DEV 7387 Receiver Frequency Range: 47-1006 MHz
Maximum Optical Distance: 1 km
Standard Link Gain: 11 ±3 dB
High-Input-Level Link Gain: -33 ±3 dB
Full-Band Flatness: ±0.7 dB
8 MHz Flatness: ±0.2 dB
Return Loss: Greater than 16 dB; typ. 20 dB
Standard Nominal RF Input Level: -20 dBm aggregate
High-Input-Level Option: +17 dBm aggregate
Standard RF Input Dynamic Range: -90 to -20 dBm aggregate
HIL RF Input Dynamic Range: -50 to +17 dBm aggregate
Standard RF Input Damage Level: +15 dBm aggregate
HIL RF Input Damage Level: +27 dBm aggregate
Noise Floor: Less than -140 dBm/Hz
Standard Carrier-to-Noise Ratio: 58 dB
HIL Carrier-to-Noise Ratio: 52 dB
Output IP3: 16 dBm
Output P1dB: +3 dBm ±1 dB
Optical Output Power: 2 dBm
Fiber Type: Single-mode 9/125 µm
Standard Optical Connector: LC/APC
Optional Optical Connector: LC/PC
RF Interface Options: 75 Ohm precision F female or 50 Ohm BNC female
Operating Temperature: -20°C to +65°C
Module Dimensions: 138 mm L x 42 mm W x 23 mm H
Module Weight: Approximately 0.1 kg
Environmental Conditions: ETSI EN 300 019 Part 1-3 Class 3.1E, except temperature

DEV 7286 Transmitter Specifications

Product Type: Desktop CWDM RF over fiber transmitter
Frequency Range: 450-960 MHz
Laser Type: DFB
Laser Classification: Class 1M
Available Wavelengths: Nine
Wavelength Range: 1310 nm and 1470-1610 nm
Standard RF Interface: 75 Ohm precision F female
Optional RF Interface: 50 Ohm BNC female
RF Monitor Level: Input level +12 dB ±3 dB
Power Requirement: 12 VDC, 250 mA
High-Input-Level Option: +17 dBm aggregate

DEV 7387 Receiver Specifications

Product Type: Desktop RF over fiber receiver
Frequency Range: 47-1006 MHz
Optical Wavelength Range: 1260-1620 nm
Standard RF Interface: 75 Ohm precision F female
Optional RF Interface: 50 Ohm BNC female
RF Monitor Level: Output level ±3 dB
Optical Status Indication: Front-panel LED
Power Requirement: 12 VDC, 300 mA

DEV 6087 Amplifier Specifications

Product Type: Desktop RF amplifier
Frequency Range: 450-960 MHz
RF Interface: 50 Ohm BNC female
Gain: 33 ±2 dB
Gain Stability: Less than 0.4 dB per 10°C change
Flatness: ±2 dB
Maximum Input Level: Less than -15 dBm
Nominal Output Level: Greater than +17 dBm
Output P1dB: Greater than +24 dBm
Third-Order Intermodulation: Greater than 40 dBc
Return Loss: Minimum 12 dB; typ. 15 dB
Power Consumption: Less than 3 VA

Available Options

• Nine Optical Wavelengths: 1310, 1470, 1490, 1510, 1530, 1550, 1570, 1590 or 1610 nm

• High-Input-Level Transmitter: Supports +17 dBm aggregate input power

• 50 Ohm RF Interface: BNC female connectors for DEV 7286 and DEV 7387

• 75 Ohm RF Interface: Precision F female connectors supplied as standard

• LC/PC Optical Interface: Available instead of standard LC/APC

• Mounting Accessories: Alternative mounting products available for installation requirements

Key Features

• Designed for wireless microphones and in-ear monitoring systems

• Optical transmission distance up to 1 km

• Plug-and-play standalone operation

• High-linearity analog RF over fiber transmission

• 450-960 MHz system link coverage

• High-input-level transmitter option

• Nine CWDM wavelength choices

• Supports multiple signals over shared fiber infrastructure

• 50 Ohm and 75 Ohm RF interfaces

• LC/APC and LC/PC optical connectors

• RF monitoring ports

• Front-panel optical status indication

• Overtemperature protection

• Compact desktop modules

• External universal AC power supplies

• Interchangeable AC power plugs

• Protective storage case included

• Optional 33 dB desktop RF amplifier
