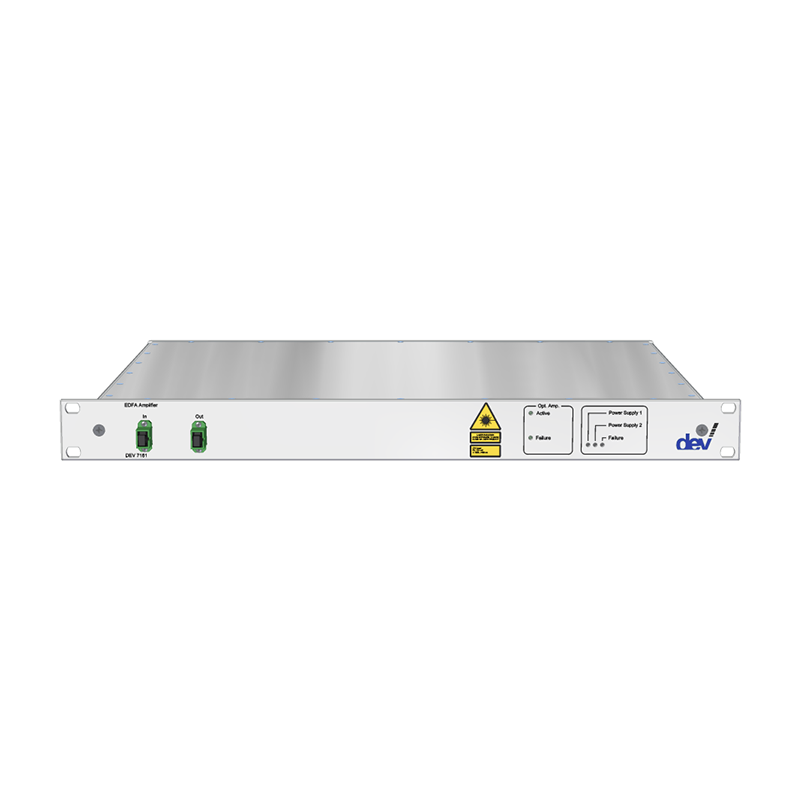

DEV 716x Series EDFA Optical Preamplifier & Booster Amplifier System

DEV 716x Series EDFA Optical Preamplifier & Booster Amplifier System

The DEV 716x Series standalone EDFA Optribution Amplifier Series extends DWDM RF over fiber transmission over very long optical paths. Its high gain and low noise figure help compensate for fiber and passive-component losses while maintaining optical signal quality.

The DEV 7161/Pre is designed for low-level optical signals and provides up to 25 dB gain with adjustable output from 0 to +10 dBm. The DEV 7161/Boost provides up to 23 dB gain and adjustable output as high as +20 dBm for increasing optical launch power.

Both 1 RU systems provide automatic output power control, optical input and output monitoring, front-panel status LEDs, redundant power supplies, SNMP and the DEV Web Interface.

Product Type: Standalone EDFA optical amplifier system
Available Models: DEV 7161/Pre and DEV 7161/Boost
Application: Long-distance DWDM RF over fiber transmission
Wavelength Range: 1529-1565 nm
Optical Inputs: One
Optical Outputs: One
Fiber Type: Single-mode 9/125 µm
Operation Mode: Automatic Output Power Control
Output Adjustment: 1 dB steps
Output-Level Accuracy: ±1 dB
Standard Optical Connector: SC/APC
Optional Optical Connectors: FC/APC or E2000/HRL
Laser Classification: Class 1M
Network Interface: Ethernet
Network Connector: RJ-45
Remote Management: DEV Web Interface and SNMP
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 80 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 340 mm D
Additional Connector Depth: Up to 80 mm
Weight: Typ. 9 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Models

• DEV 7161/Pre: EDFA optical preamplifier for -25 to -5 dBm input levels, with up to 25 dB gain and adjustable output from 0 to +10 dBm.

• DEV 7161/Boost: EDFA optical booster amplifier for -3 to +10 dBm input levels, with up to 23 dB gain and adjustable output from 0 to +20 dBm.

Key Features

• Standalone EDFA preamplifier and booster systems

• Optimized for DWDM RF over fiber networks

• Broad 1529-1565 nm wavelength coverage

• High optical gain and low noise figure

• Automatic output power control

• Output adjustment in 1 dB steps

• Optical input and output power monitoring

• Front-panel status and alarm LEDs

• SC/APC optical connectors supplied as standard

• Optional FC/APC and E2000/HRL connectors

• Permanent optical-signal monitoring

• Signal recording and data backup

• Ethernet connectivity

• DEV Web Interface

• Comprehensive SNMP support

• Redundant AC power supplies

• Compact 19-inch, 1 RU chassis

• Designed for long-distance optical RF transmission
