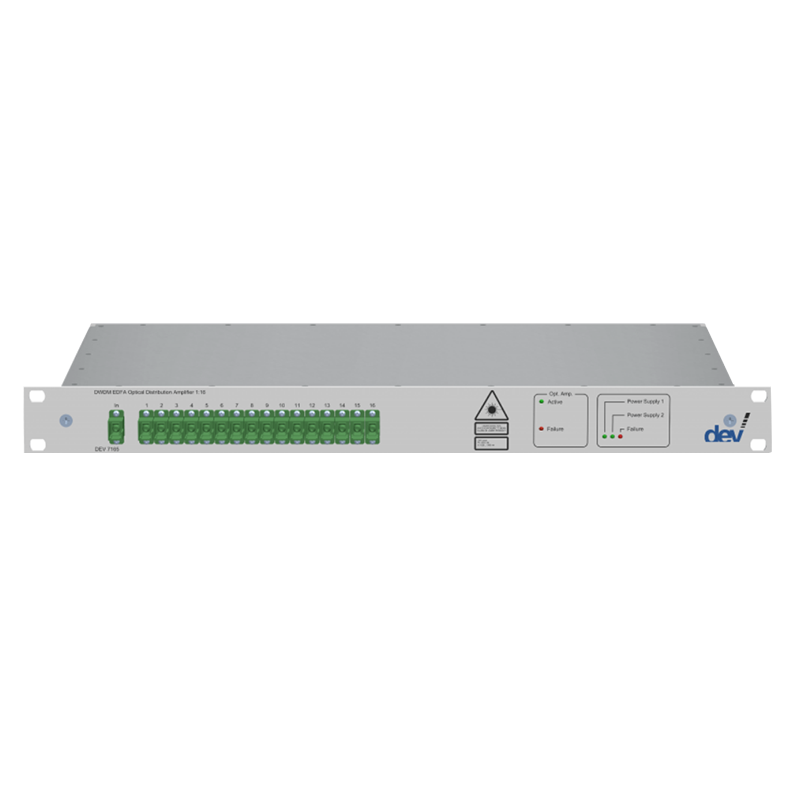

DEV 7163 Dual 1:8 EDFA Optical Distribution Booster Amplifier

DEV 7163 Dual 1:8 EDFA Optical Distribution Booster Amplifier

The DEV 7163 EDFA Optribution Distribution Booster Amplifier integrates two independent 1:8 optical amplification and distribution channels within a single 1 RU chassis. It accepts two DWDM optical inputs and provides two groups of eight amplified outputs, delivering 16 outputs in total.

Each EDFA channel supports Automatic Output Power Control with adjustment from -12 to +8 dBm in 1 dB steps. Optical power monitoring, front-panel alarms, redundant power supplies, the DEV Web Interface and SNMP provide centralized management for high-capacity RF over fiber networks.

Product Type: Dual 1:8 EDFA optical distribution booster amplifier
Optical Inputs: Two independent inputs
Optical Outputs: Two groups of eight; 16 total
Wavelength Range: 1529-1565 nm
Input Power Range: -3 to +10 dBm per EDFA channel
Operation Mode: Automatic Output Power Control
Adjustable Output Power: -12 to +8 dBm per EDFA channel
Adjustment Resolution: 1 dB
Saturated Output Power: +8 dBm per EDFA channel
Output-Level Accuracy: ±1 dB
Input Return Loss: Greater than 45 dB
Output Return Loss: 55 dB
Noise Figure: Less than 5.5 dB; typ. 5 dB
Fiber Type: Single-mode 9/125 µm
Standard Optical Connector: SC/APC
Optional Optical Connectors: FC/APC or E2000/HRL
Remote Management: DEV Web Interface and SNMP
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 80 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 340 mm D
Additional Connector Depth: Up to 80 mm
Weight: Typ. 9 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Key Features

• Two independent 1:8 EDFA amplifier channels

• Two optical inputs and 16 total optical outputs

• High-density DWDM optical distribution

• High optical gain and low noise figure

• Automatic Output Power Control

• Independent EDFA-channel specifications

• Output adjustment in 1 dB steps

• Optical input and output monitoring

• Front-panel status and alarm LEDs

• DEV Web Interface and SNMP

• Signal recording and data backup

• Redundant power supplies

• Optional FC/APC and E2000/HRL connectors

• Compact 19-inch, 1 RU chassis
