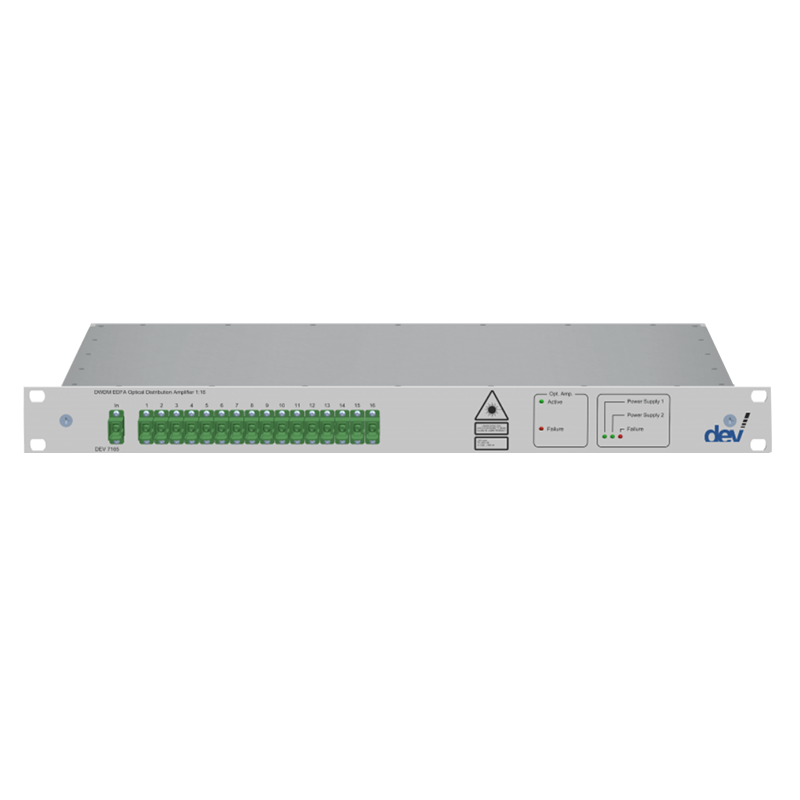

DEV 7165 1:16 EDFA Optical Distribution Booster Amplifier

DEV 7165 1:16 EDFA Optical Distribution Booster Amplifier

The DEV 7165 EDFA Optribution Distribution Booster Amplifier amplifies and distributes one DWDM optical input to 16 outputs within a compact 1 RU chassis. It is designed for high-density, long-distance RF over fiber systems requiring one optical signal to serve numerous destinations.

Automatic Output Power Control provides adjustable output from -17 to +3 dBm in 1 dB steps. Integrated optical monitoring, front-panel alarms, redundant power supplies, the DEV Web Interface and SNMP enable reliable centralized operation.

Product Type: 1:16 EDFA optical distribution booster amplifier
Optical Inputs: One
Optical Outputs: Sixteen
Wavelength Range: 1529-1565 nm
Input Power Range: -3 to +10 dBm
Operation Mode: Automatic Output Power Control
Adjustable Output Power: -17 to +3 dBm
Adjustment Resolution: 1 dB
Saturated Output Power: +3 dBm
Output-Level Accuracy: ±1 dB
Input Return Loss: Greater than 45 dB
Output Return Loss: 55 dB
Noise Figure: Less than 5.5 dB; typ. 5 dB
Fiber Type: Single-mode 9/125 µm
Standard Optical Connector: SC/APC
Optional Optical Connectors: FC/APC or E2000/HRL
Remote Management: DEV Web Interface and SNMP
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 80 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 340 mm D
Additional Connector Depth: Up to 80 mm
Weight: Typ. 9 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Key Features

• One optical input and 16 amplified outputs

• High-density optical signal distribution

• Optimized for DWDM RF over fiber networks

• Integrated EDFA amplification and 1:16 splitting

• High optical gain and low noise figure

• Automatic Output Power Control

• Output adjustment in 1 dB steps

• Optical input and output monitoring

• Front-panel status and alarm LEDs

• DEV Web Interface and SNMP

• Signal recording and data backup

• Redundant power supplies

• Optional FC/APC and E2000/HRL connectors

• Compact 19-inch, 1 RU chassis
