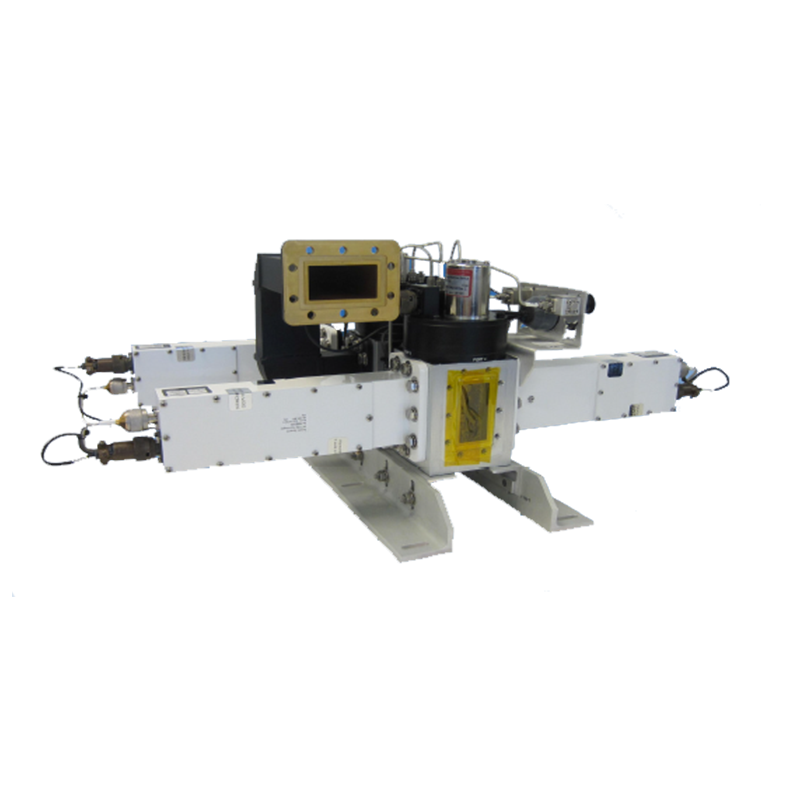

CPI LRC2XXX-XXXXXXX C-Band 1:2 Redundant LNA System

The CPI LRC-1000 Series 1:2 C-Band Redundant LNA System provides failover support for dual-polarization satellite systems. Supporting one standby LNA for two primary signal paths, this system minimizes downtime via automatic switching. The rugged outdoor plate assembly pairs with an indoor control unit supporting remote monitoring via SNMP and RS-232/422/485 interfaces. Available with optional crossguide couplers, coaxial output couplers, and transmit reject filters for maximum interference protection.

Configuration: 1:2 redundancy (one standby shared between two active paths)

Frequency Options: 3.6–4.2 GHz (Band C), 3.4–4.2 GHz (Band D)

Gain: 63 dB typ., matched within 1 dB

Optional: High-power (+20 dBm) LNAs, filters, and couplers

Input: CPR229G Waveguide; Output: Type N Female

Redundancy controller: Supports full remote M&C, auto/manual switching, dual power supplies

CPI LRC2XXX-XXXXXXX
Band
C Band
Component Type
LNA
Redundancy
1:2
