CPI LRC1XXX-XXXXXXX

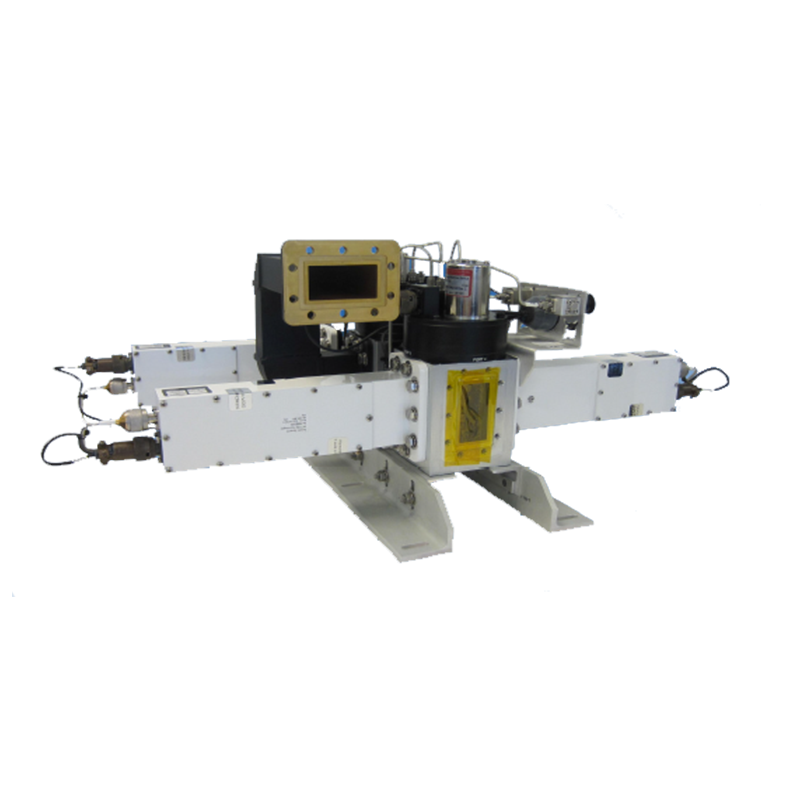

CPI LRC1XXX-XXXXXXX C-Band 1:1 Redundant LNA System

The CPI LRC-1000 Series 1:1 C-Band Redundant LNA System is designed to ensure continuous satellite signal reception with automatic switchover in the event of LNA failure. Featuring LC-4000 Series low noise amplifiers, high-quality waveguide/coaxial switches, and advanced redundancy controller with SNMP, RS-232/422/485, and parallel I/O, it provides reliable performance in harsh environments. Optional transmit reject filters and couplers offer further flexibility.

Configuration: 1:1 redundancy (one active, one standby)
Frequency Options: 3.6–4.2 GHz, 3.4–4.2 GHz
Typical Gain: 63 dB
Input: CPR229G Waveguide; Output: Type N Female
Noise Temperature: Down to 30 K typ. depending on options
Optional: Reject filters, input/output couplers, offline I/O
Redundancy controller with auto/manual switchover, Ethernet/SNMP/serial/parallel I/O
