Norsat 9000SXUBF – Ka-Band Simultaneous Quad-Band PLL External Reference LNB
$7,477.12
Covers 18.2–22.2 GHz input range
Supports 4 sub-bands simultaneously:
• Band 1: 18.2–19.2 GHz
• Band 2: 19.2–20.2 GHz
• Band 3: 20.2–21.2 GHz
• Band 4: 21.2–22.2 GHz
• LO Reference: External 10 MHz
• Output Connector: F-type, 75 Ω
• Integrated Waveguide Isolator: No
Security policy
Delivery policy
Return policy

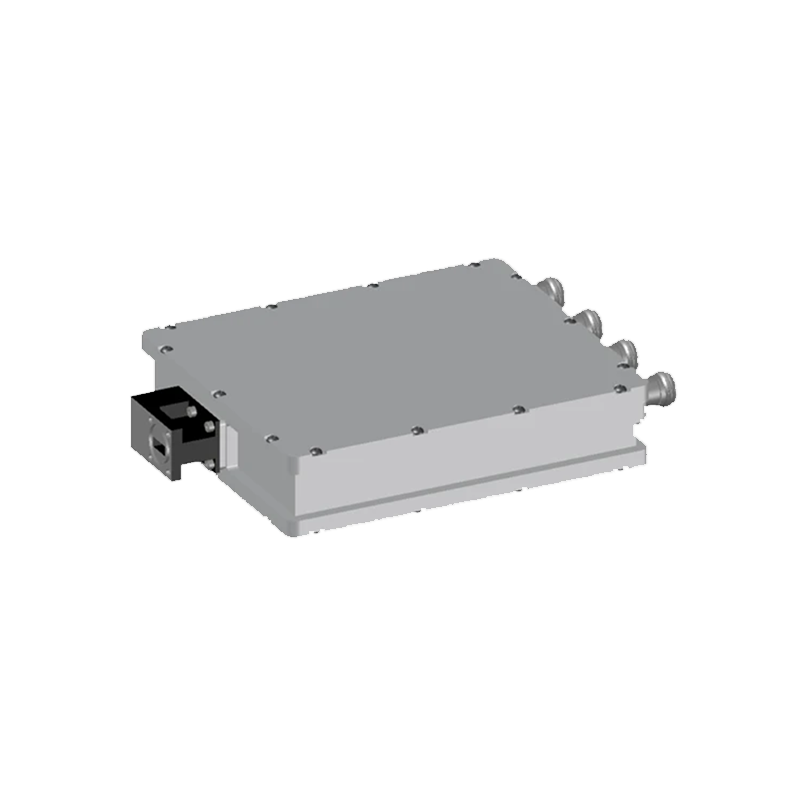

Norsat 9000SXUBF Ka-Band Simultaneous Quad-Band PLL EXT LNB
The Norsat 9000SXUBF delivers simultaneous quad-band Ka-Band coverage from 18.2 to 22.2 GHz. Designed with external 10 MHz PLL reference, F output, and compact WR-42 input, it offers high gain and IP67 protection—ideal for flexible SATCOM integration without an isolator.
Input Frequency Ranges:
Band 1: 18.2–19.2 GHz
Band 2: 19.2–20.2 GHz
Band 3: 20.2–21.2 GHz
Band 4: 21.2–22.2 GHz
Output Frequency (All Bands): 950 – 1950 MHz
LO Frequencies: 17.25 / 18.25 / 19.25 / 20.25 GHz
LO Stability: External 10 MHz reference
Noise Figure: typ. 2.3 dB
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
RF Input Connector: WR-42
IF Output Connector: F-Type 75 Ohm
Integrated Isolator: No
Power Supply: +12 to +24 VDC (per band)
9000SXUBF
- Frequency Band
- Ka-Band
- Frequency Range
- 18.20 – 22.20 GHz
- Number of Bands
- 4-Band
- Sub-Band
- Band 1: 18.20 – 19.20 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- Output Band
- Band 4: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 2.3 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
