Norsat 9000XAN-4 – Ka-Band Single-Band External Reference PLL LNB, N-Type (50Ω)
$757.00
• Input Band: 18.20–19.20 GHz
• LO Reference: External 10 MHz
• Noise Figure: 1.5 dB
• Output Connector: N-type, 50 Ω
• Integrated Waveguide Isolator: No
Security policy
Delivery policy
Return policy

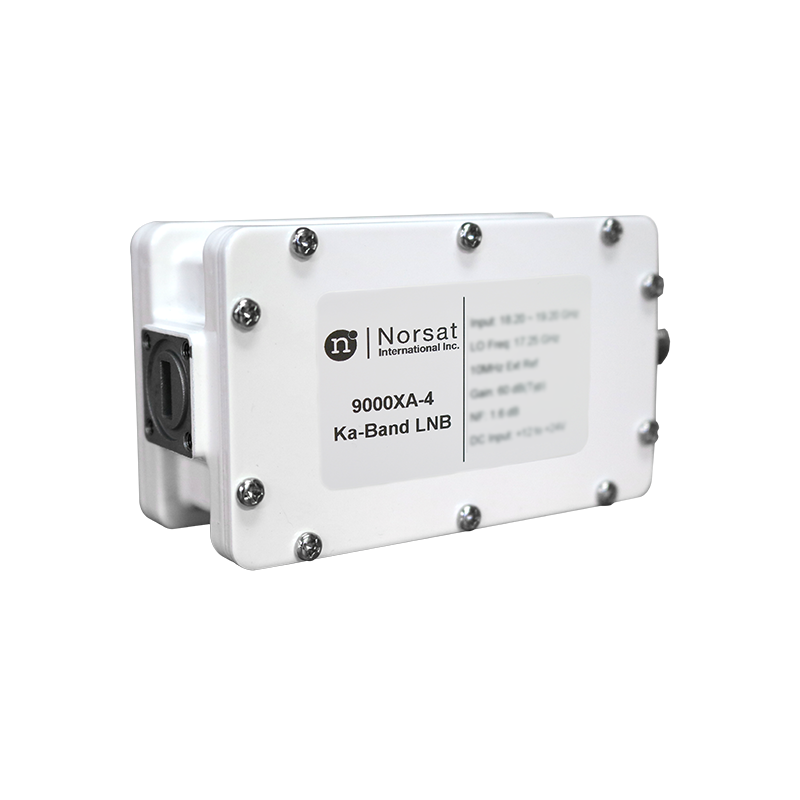

Norsat 9000XAN-4 Single-Band Ka-Band External Reference LNB
The Norsat 9000XAN-4 is a single-band Ka-Band PLL LNB requiring a 10 MHz external reference for precise stability. It operates from 18.20 to 19.20 GHz with a 17.25 GHz LO, typ. 1.5 dB noise figure, and rugged IP67-rated housing, delivering dependable SATCOM performance in demanding environments.
Frequency Band: 18.20–19.20 GHz
Output Frequency: 950–1950 MHz
Local Oscillator: 17.25 GHz
LO Stability: External 10 MHz reference (-5 to +5 dBm)
Noise Figure: typ. 1.5 dB, max. 1.6 dB
Gain: typ. 60 dB (55–65 dB range), ≤4 dB p-p flatness
Image Rejection: 40 dBc min
Output Connector: N-Type, 50 Ohm
Input: WR-42 waveguide grooved
Power: +12 to +24 VDC, 400 mA max
Environmental: -40°C to +60°C, IP67
Dimensions: 103.6 x 60 x 45 mm; Weight: 0.42 kg
Made in Republic of Korea; ECCN: EAR99
9000XAN-4
- Frequency Band
- Ka-Band
- Frequency Range
- 18.20 – 19.20 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1950 MHz
- LO Frequency
- 17.25 GHz
- LO Stability
- External Reference
- Noise Figure
- 1.5 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
• Input Band: 18.20–19.20 GHz
• LO Reference: External 10 MHz
• Noise Figure: 1.5 dB
• Output Connector: N-type, 50 Ω
• Integrated Waveguide Isolator: No
