Comtech SLM-5650C2 & SLM-5650C2 ODU Software Defined Modems

Comtech SLM-5650C2 & SLM-5650C2 ODU Software Defined Modems

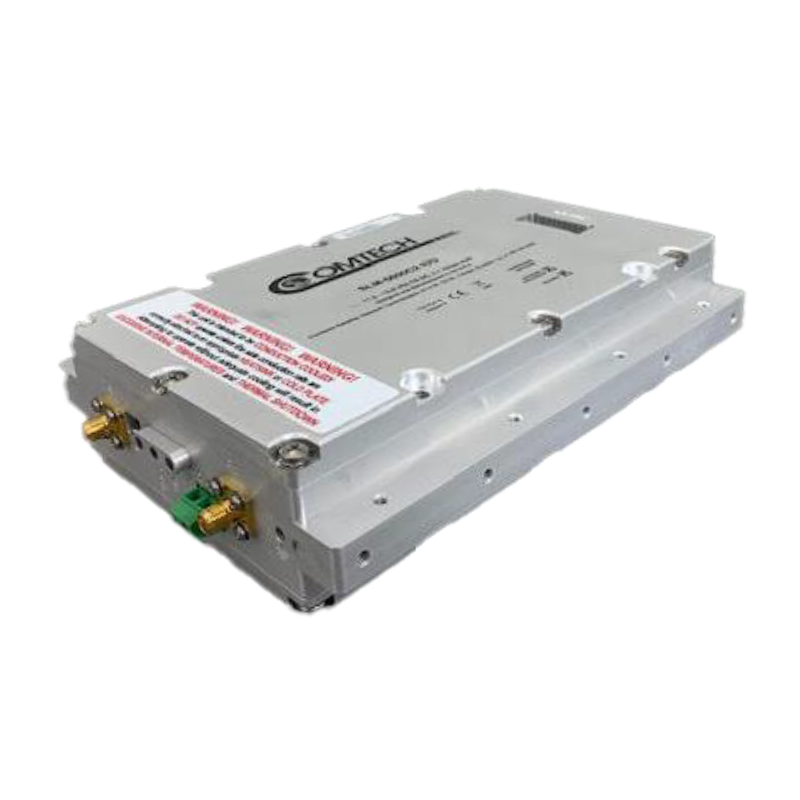

The Comtech SLM-5650C2 and SLM-5650C2 ODU are compact, multi-waveform software-defined satellite modems for military, government and commercial terminals. WGS certified and supporting data rates up to 155.52 Mbps, both models combine advanced FEC, DSSS and AES-256 TRANSEC options for secure, resilient communications. Choose the conduction-cooled indoor SLM-5650C2 or the IP67-rated SLM-5650C2 ODU for outdoor installations.

Frequency Range: 950–2000 MHz
Data Rate: 8 kbps to 155.52 Mbps
Symbol Rate: 32 ksps to 64 Msps
Chip Rate: 32 kcps to 64 Mcps
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8-QAM, 16-QAM and 16APSK
Data Interface: Gigabit Ethernet
Indoor Model: SLM-5650C2, conduction cooled, -10°C to +55°C
Outdoor Model: SLM-5650C2 ODU, IP67 rated, -32°C to +60°C
Applications: Military SATCOM, communications-at-the-pause, communications-on-the-move, flyaway systems and integrated satellite terminals

Key Features

• WGS certified for government and military networks

• MIL-STD-188-165A certified to 155 Mbps

• Compact, low-SWaP indoor and outdoor configurations

• IP67-rated SLM-5650C2 ODU for outdoor installations

• AES-256 TRANSEC compatible with SLM-5650A, SLM-5650B and SLM-5650C

• Optional FIPS 140-3 TRANSEC module; NIST validation in process

• DSSS spreading factors from 2 to 512

• TPC, LDPC, STANAG 4486 EBEM and legacy FEC support

• Information Throughput Adaptation and Automatic Uplink Power Control

• Optional Layer 2/Layer 3 multi-core network processor

• QoS, bridging and routing capabilities

• BUC and LNB 10 MHz reference support

• 13 V or 18 V LNB power

• OpenAMIP support

• SNMP, HTTPS, Telnet and RS-232 management

• Optional DVB-S2/S2X for non-WGS-certified firmware
