Norsat ULC-0-75-6

$3,100.00

6-Band Universal LNB Controller

6-Band ULC Series

Reference: No Reference

Connector: F Type 75 Ohm

Control Interface: Switch Control & Line Length Compensation with Switch

Quantity
Lead Time: 6 - 8 Weeks



Security policy



Delivery policy



Return policy

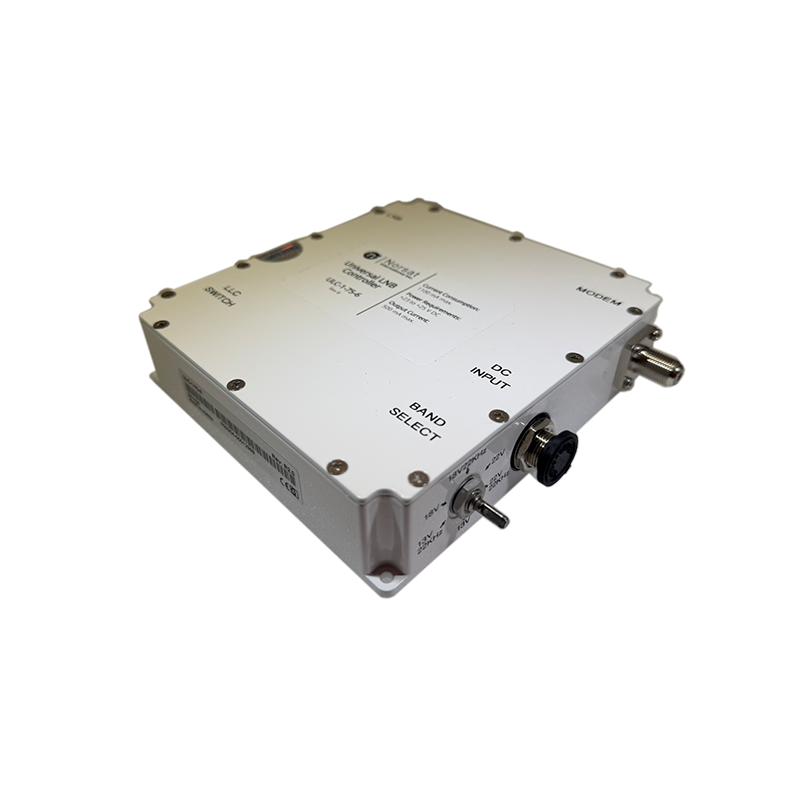

Norsat ULC-0-75-6 Universal LNB Controller (No Reference)

The Norsat ULC-0-75-6 is a 75 Ohm LNB controller with F-type connectors, designed to supply 13V/18V output and tone signal without internal or external reference. Housed in a rugged IP66 enclosure, it's ideal for SATCOM systems where no 10 MHz reference is required.

Reference Signal: None
Output Voltages: 12.5 – 13.5 VDC / 17.3 – 18.7 VDC
Tone Frequency: 20 – 24 kHz
Tone Amplitude: 0.55 – 0.9 Vpp
Control Interface: Switch, cable, logic-level (L: 0–0.8 V, H: 2.5–7 V)
Connector Type: 75 Ohm F-Connector
Output VSWR: max. 2.0:1
Output Current: max. 500 mA
Power Supply: +23 to +25 VDC
Current Consumption: 600 mA @ 24 VDC
IP Rating: IP66
Operating Temp: –30°C to +60°C
Dimensions: 130 × 95 × 30 mm
Weight: 0.66 kg
Made in Canada

ULC-0-75-6
Control Interface
Switch Control
Control Interface
Line Length Compensation with Switch
Reference Signal
None
Connector Type
F (75 ohm)
