Norsat ULC-0-50S-CL-6
$3,100.00
6-Band Universal LNB Controller
6-Band ULC Series
Reference: No Reference
Connector: SMA Type 50 Ohm
Control Interface: Control Interface Cable & Line Length Compensation with Switch
Security policy
Delivery policy
Return policy

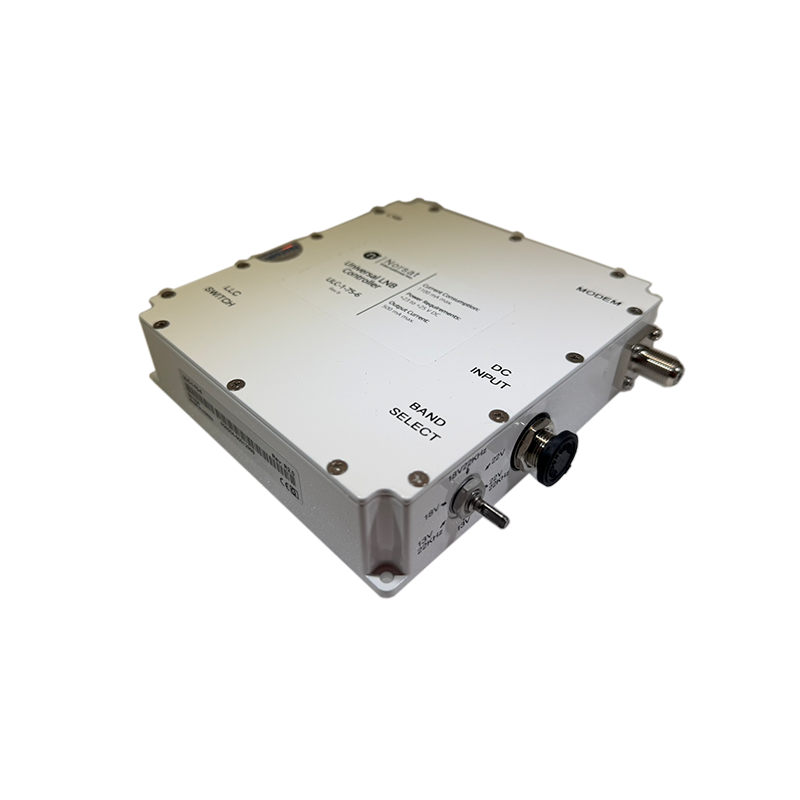

Norsat ULC-0-50S-CL-6 Universal LNB Controller (No Ref, 6-Band)
The Norsat ULC-0-50S-CL-6 is a 6-band, 50 Ohm LNB controller with SMA connectors. It features a control interface cable and line length compensation for delivering 13V/18V output and tone signal—no internal or external reference required. Compact IP65 housing suits demanding SATCOM deployments.
Reference Signal: None
Output Voltages: 12.5 – 13.5 VDC / 17.3 – 18.7 VDC
Tone Frequency: 20 – 24 kHz
Tone Amplitude: 0.55 – 0.9 Vpp
Control Interface: Control cable & line length compensation with switch
Connector Type: 50 Ohm SMA Connector
Output VSWR: max. 2.0:1
Output Current: max. 500 mA
Power Supply: +23 to +25 VDC
Current Consumption: max. 500 mA
IP Rating: IP65
Operating Temp: –40°C to +60°C
Dimensions: 100 × 120 × 30 mm
Weight: 0.67 kg
Made in South Korea
ULC-0-50S-CL-6
- Control Interface
- Control Interface Cable
- Control Interface
- Line Length Compensation with Switch
- Reference Signal
- None
- Connector Type
- SMA (50 ohm)
