Norsat ULC-1-50-6
$4,200.00
6-Band Universal LNB Controller
6-Band ULC Series
Reference: 10 MHz Reference
Connector: N Type 50 Ohm
Control Interface: Switch Control & Line Length Compensation with Switch
Security policy
Delivery policy
Return policy

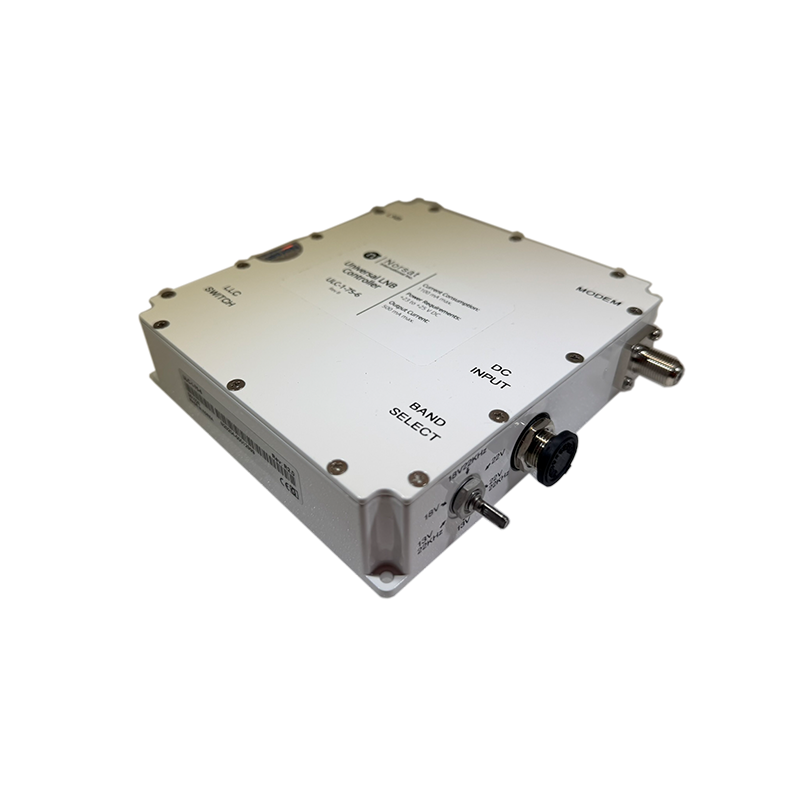

Norsat ULC-1-50-6 Universal LNB Controller with Internal Ref (6-Band)
The Norsat ULC-1-50-6 is a 6-band, 50 Ohm LNB controller with N-type connectors and an internal 10 MHz reference. It provides 13V/18V output, tone signal, and switch-based line length compensation—ideal for SATCOM systems needing integrated power and reference in rugged environments.
Reference Signal: Internal 10 MHz reference
Output Voltages: 12.5 – 13.5 VDC / 17.3 – 18.7 VDC
Tone Frequency: 20 – 24 kHz
Tone Amplitude: 0.55 – 0.9 Vpp
Control Interface: Switch & line length compensation
Connector Type: 50 Ohm N-Connector
Output VSWR: max. 2.0:1
Output Current: max. 500 mA
Power Supply: +23 to +25 VDC
Current Consumption: 1100 mA max.
IP Rating: IP65
Operating Temp: –40°C to +60°C
Dimensions: 130 × 120 × 30 mm
Weight: 0.85 kg
Made in South Korea
ULC-1-50-6
- Control Interface
- Switch Control
- Control Interface
- Line Length Compensation with Switch
- Reference Signal
- 10 MHz internal
- Output Connector
- N Type 50 Ohm
