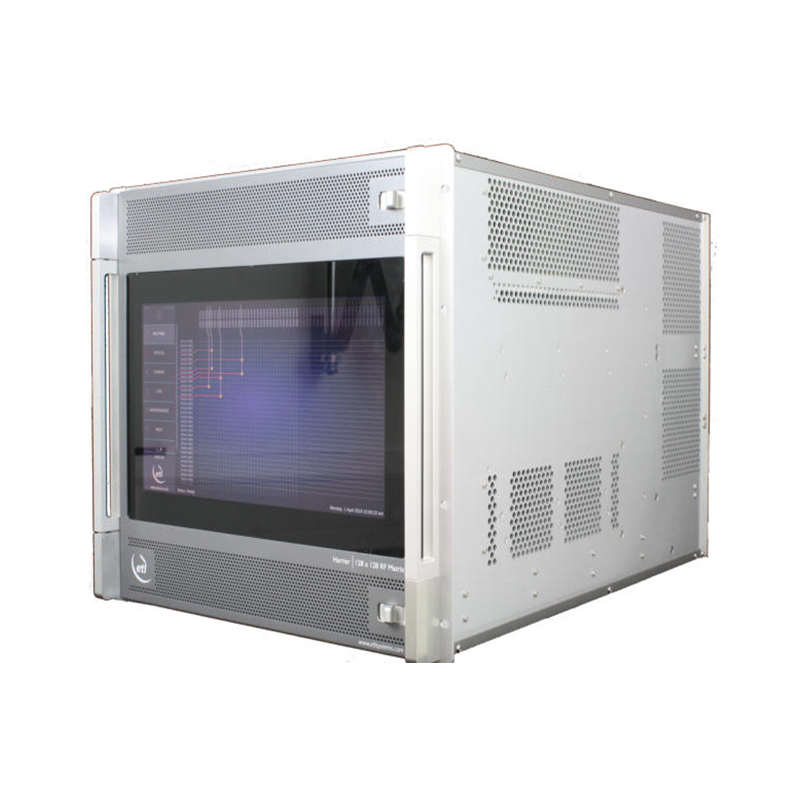

The ETL Systems Harrier HAR-40 is a configurable, non-blocking extended L-band matrix for satellite ground systems. It routes signals across configurations from 8×8 to 128×128, expanding in blocks of eight inputs and outputs. Its 10U chassis accepts a mix of RF and optical input modules to suit different signal feeds, with LNB powering available on compatible modules.

Frequency Range: 850–2450 MHz
Matrix Capacity: 8×8 to 128×128, expandable in blocks of eight
Routing: Non-blocking
Switching Time: 50 ms maximum
Module Options: Passive RF, active RF, and optical fibre inputs; passive or active RF outputs
LNB Powering: Selectable 0/13/18 VDC and 0/22 kHz tone with compatible input modules
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Control & Monitoring: Front-panel touchscreen; Ethernet web interface, HTTPS, and SNMPv3
Redundancy: Dual hot-swappable CPUs and power supplies
Form Factor: 10U, 19-inch rack mount

Key Features

• Mixes input and output module types within one matrix

• Supports variable gain and slope control with compatible active modules

• Provides hot-swappable RF modules, CPUs, power supplies, and fan trays

• Monitors RF levels, amplifier status, temperature, fans, and power supplies

LNB powering, optical inputs, and variable gain depend on the modules selected.
