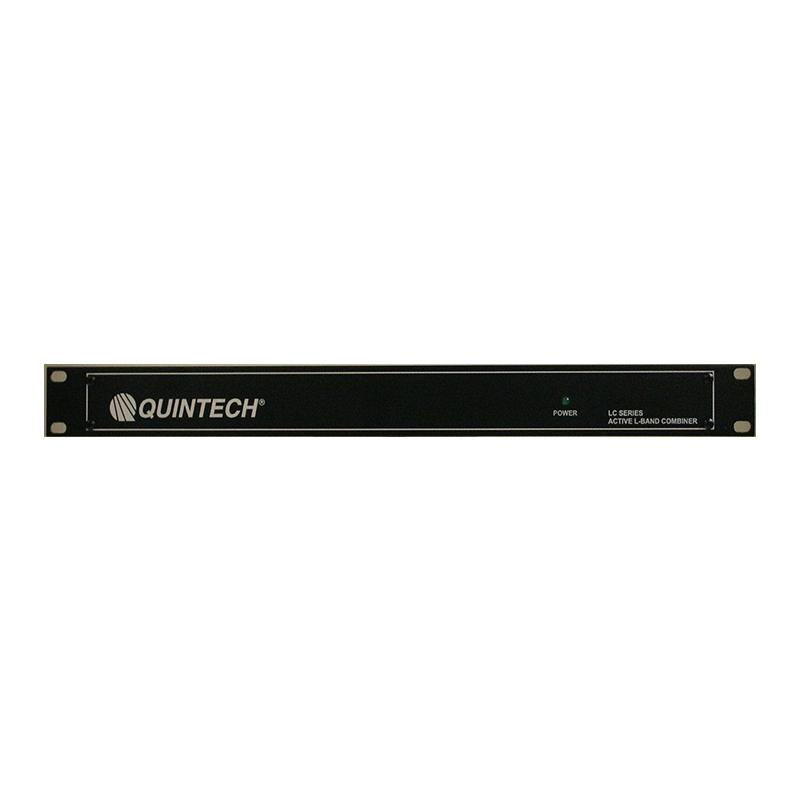

The Quintech LC122150A1BAA000 is a commercial-quality 12-way active L-band combiner that combines 12 RF input signals into one output across the 950–2150 MHz frequency range. Its zero-loss design provides dependable signal combining without the passive loss normally associated with high-port-count combiners.

Built with Quintech proprietary microstrip and SMT technology, the LC122150A1BAA000 delivers repeatable RF performance, consistent signal levels and dependable impedance matching across all inputs. Its 75-ohm BNC connectors make it suitable for satellite, broadcast, telecommunications, monitoring and centralized RF distribution systems.

Specifications:

Product Type: 12-Way Active L-Band Combiner
Manufacturer: Quintech Electronics
Product Series: LC12 2150A
Part Number: LC122150A1BAA000
Configuration: 12 × 1
RF Inputs: 12
RF Outputs: 1
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
P1dB: -2 dBm per Input
Insertion Loss: 0 ±2 dB
Frequency Response: ±2 dB
Isolation: 18 dB
Input Return Loss: 13 dB
Output Return Loss: 13 dB
Noise Figure: 19 dB
RF Connectors: 75-Ohm BNC
Power Requirements: 18–24 VDC at 1 A
Power Connection: 2-Pin Quick-Connect Barrier Strip
Power Consumption: 12 W
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.8 lb.
Gross Weight: 5.3 lb.
Certification: FCC Part 15
Country of Manufacture: USA
