Quintech LC242150A1FRB000 950–2150 MHz 24-Way Active L-Band Combiner

Quintech LC242150A1FRB000 24-Way Active L-Band Combiner with Internal and External Power Redundancy

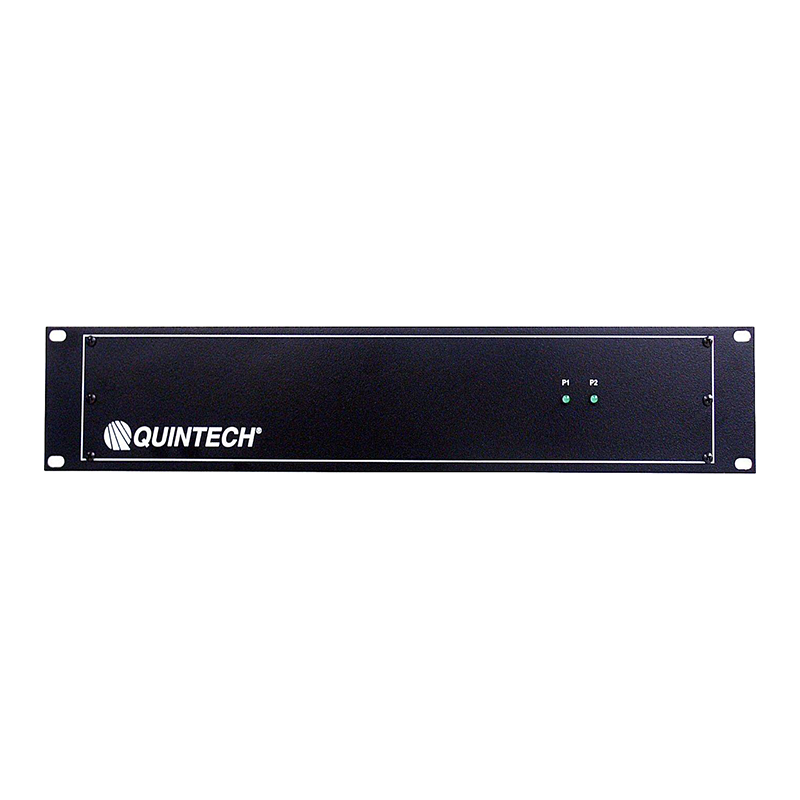

The Quintech LC242150A1FRB000 is a commercial-quality 24-way active L-band combiner with internal and external power redundancy. It combines 24 RF input signals into one output across the 950–2150 MHz frequency range, while its zero-loss design avoids the passive loss normally associated with high-port-count combiners.

Built with Quintech proprietary microstrip and SMT technology, the LC242150A1FRB000 delivers repeatable RF performance, consistent signal levels and dependable impedance matching across all inputs. It features 75-ohm Type F connectors, universal AC power and redundant power architecture for increased availability in satellite, broadcast, telecommunications and centralized RF distribution systems.

Specifications:

Product Type: 24-Way Active L-Band Combiner
Manufacturer: Quintech Electronics
Product Series: LC24 2150A DR
Part Number: LC242150A1FRB000
Configuration: 24 × 1
RF Inputs: 24
RF Outputs: 1
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
P1dB: -5 dBm per Input
Insertion Loss: 0 ±2 dB
Frequency Response: ±2 dB
Isolation: 18 dB
Input Return Loss: 13 dB
Output Return Loss: 11 dB
Noise Figure: 27 dB
RF Connectors: 75-Ohm Type F
Power Redundancy: Internal and External
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 19 W
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 2RU Rackmount
Dimensions: 3.5 in. H × 19 in. W × 14 in. D
Net Weight: 6.9 lb.
Gross Weight: 10.9 lb.

Important: All unused RF input ports must be terminated with 75-ohm terminations.

Available now at Esatcom Inc. Please contact us for pricing and lead time.
